Component variable mapping

Think of a component as a reusable visual widget. You build it once — layout, brand rules, logic — then place it on a template as many times as you need. Each placement is independent: same widget, but each one can show different content.

Variable mapping is how you tell each placement what to show. You connect the component's own variables — like price or product_name — to variables that live in the template. The template holds the actual values; the component displays them.

This page walks through the most common design scenarios, from the simplest single placement to full leaflet layouts.

Before you start

Ask yourself two questions before you place a component:

  1. How many times does this component appear? Once per template, twice, six times?
  2. Should each placement show different content, or the same?

The answer shapes how many template variables you'll need and how you set up the mapping. The scenarios below cover each combination.

See Use components in a template for the step-by-step workflow in the UI.

Scenario 1 — One component, one page

You're designing a product card template. There's one price tag in the design — one component, placed once. Because the price tag is a component, the same widget can be reused across other templates without rebuilding it. Here, it just appears once, and each component variable connects to one template variable.

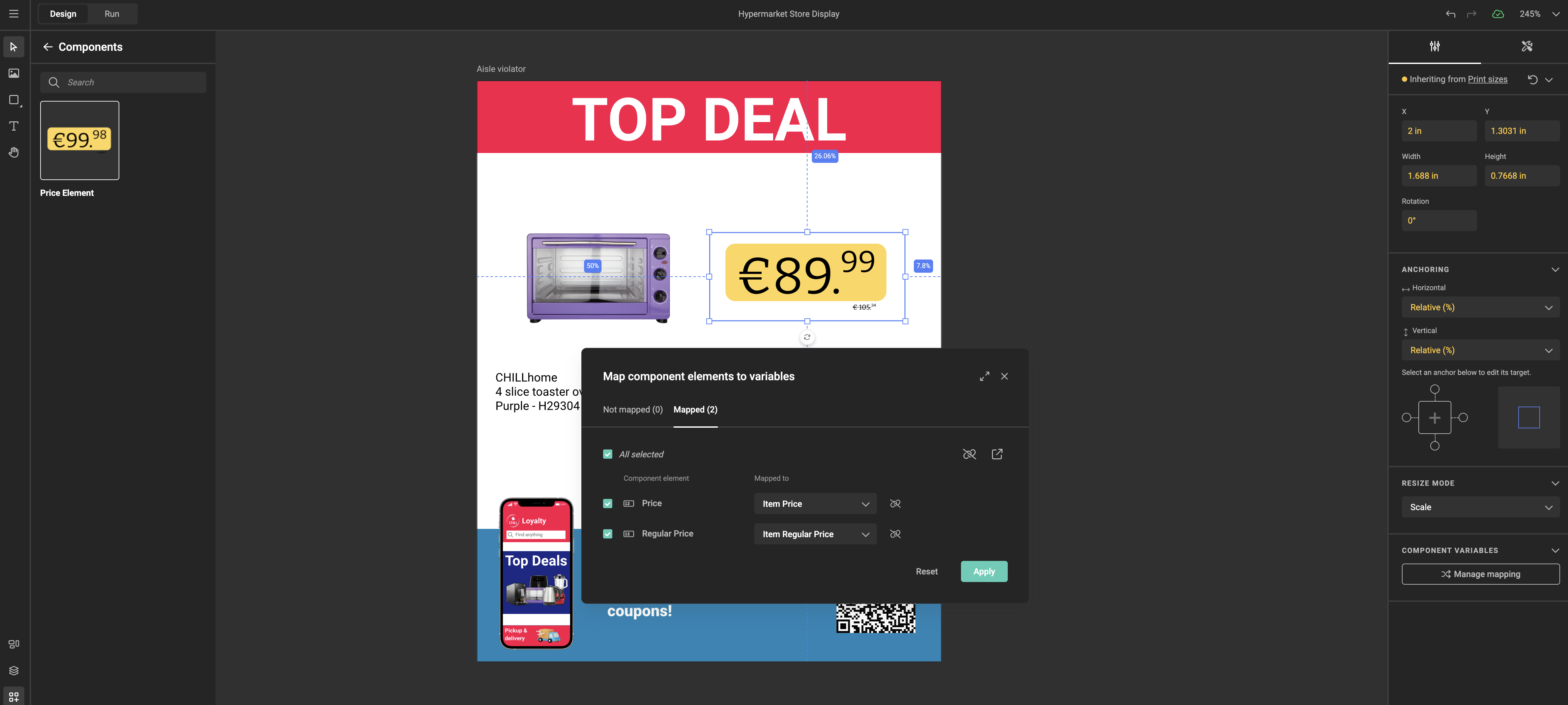

Template canvas showing a single price tag component placed on the page

When you open Manage mapping for the component, you see two component variables: price, regular price. You map each one to a new template variable with the same name.

That's it — two connections, and the component shows whatever the template variables contain.

The structure behind this
flowchart LR
    subgraph Template
        T1["Item Price"]
        T2["Item Regular Price"]
    end
    subgraph "Price Eleent (instance 1)"
        C1["price"]
        C2["regular price"]
    end
    T1 --> C1
    T2 --> C2

Scenario 2 — Two placements, one page

You're now building a coupon sheet. Two coupons sit side by side on the same page. Both use the same price tag component, but each coupon shows a different product.

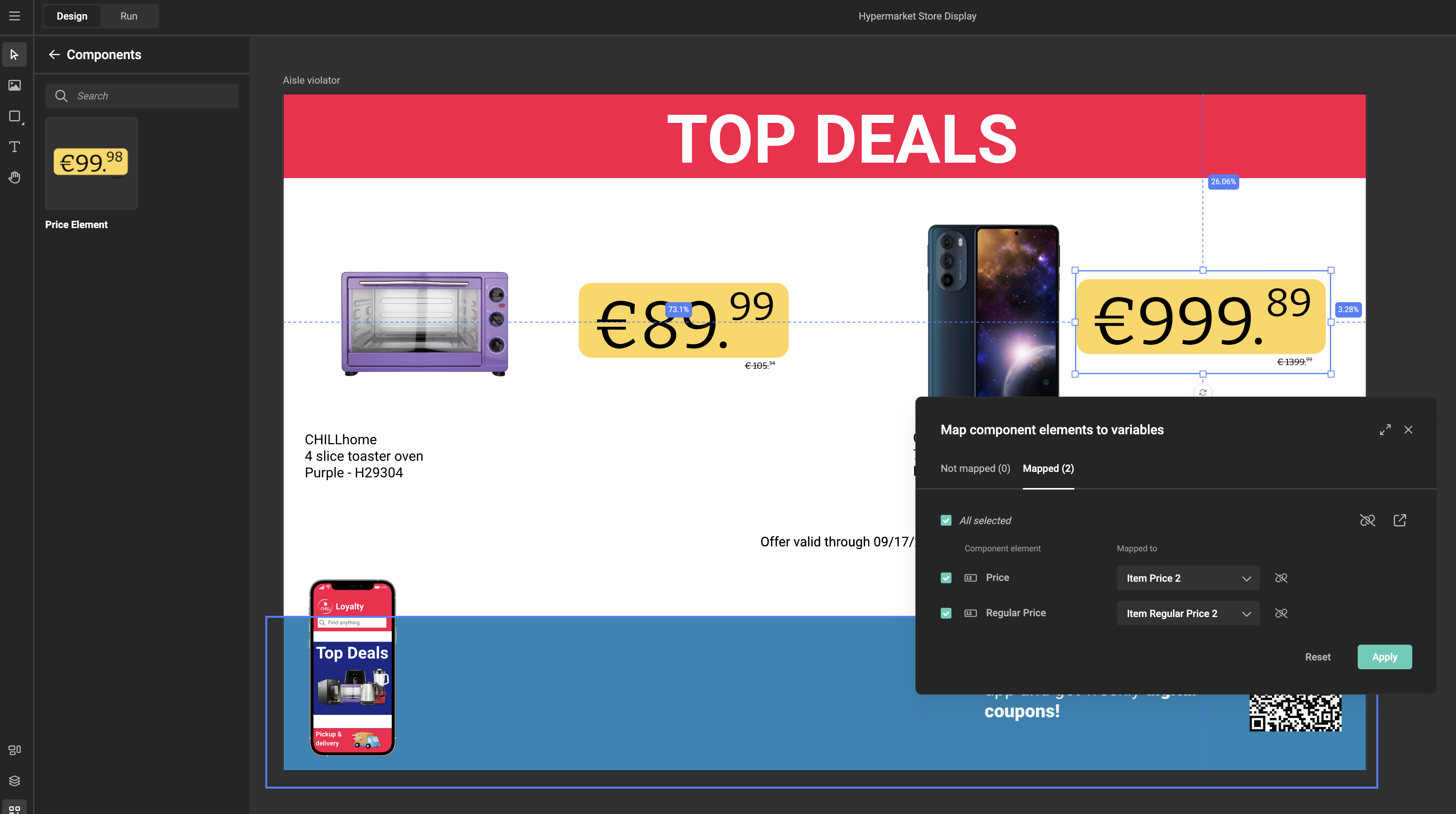

Template canvas with two price tag component instances placed side by side on one page

You place the component twice. Then you open Manage mapping for each instance separately:

  • Instance 1: map price → Item price, regular price → Item Regular Price
  • Instance 2: map price → Item price 2, regular price → Item Regular Price 2

The template now has four variables. Each coupon reads from its own set and shows its own product independently.

The structure behind this
flowchart LR
    subgraph Template
        T1["Item Price"]
        T2["Item Regular Price"]
        T4["Item Price 2"]
        T5["Item Regular Price 2"]
    end
    subgraph "Price tag (instance 1)"
        C1A["price"]
        C2A["regular price"]
    end
    subgraph "Price tag (instance 2)"
        C1B["price"]
        C2B["regular price"]
    end
    T1 --> C1A
    T2 --> C2A
    T4 --> C1B
    T5 --> C2B

Scenario 3 — Two placements, two pages

The coupon sheet spans two pages — one coupon per page. The setup is the same as scenario 2: two instances, two independent mappings, two sets of template variables. The only difference is that each component lives on a different page of the template.

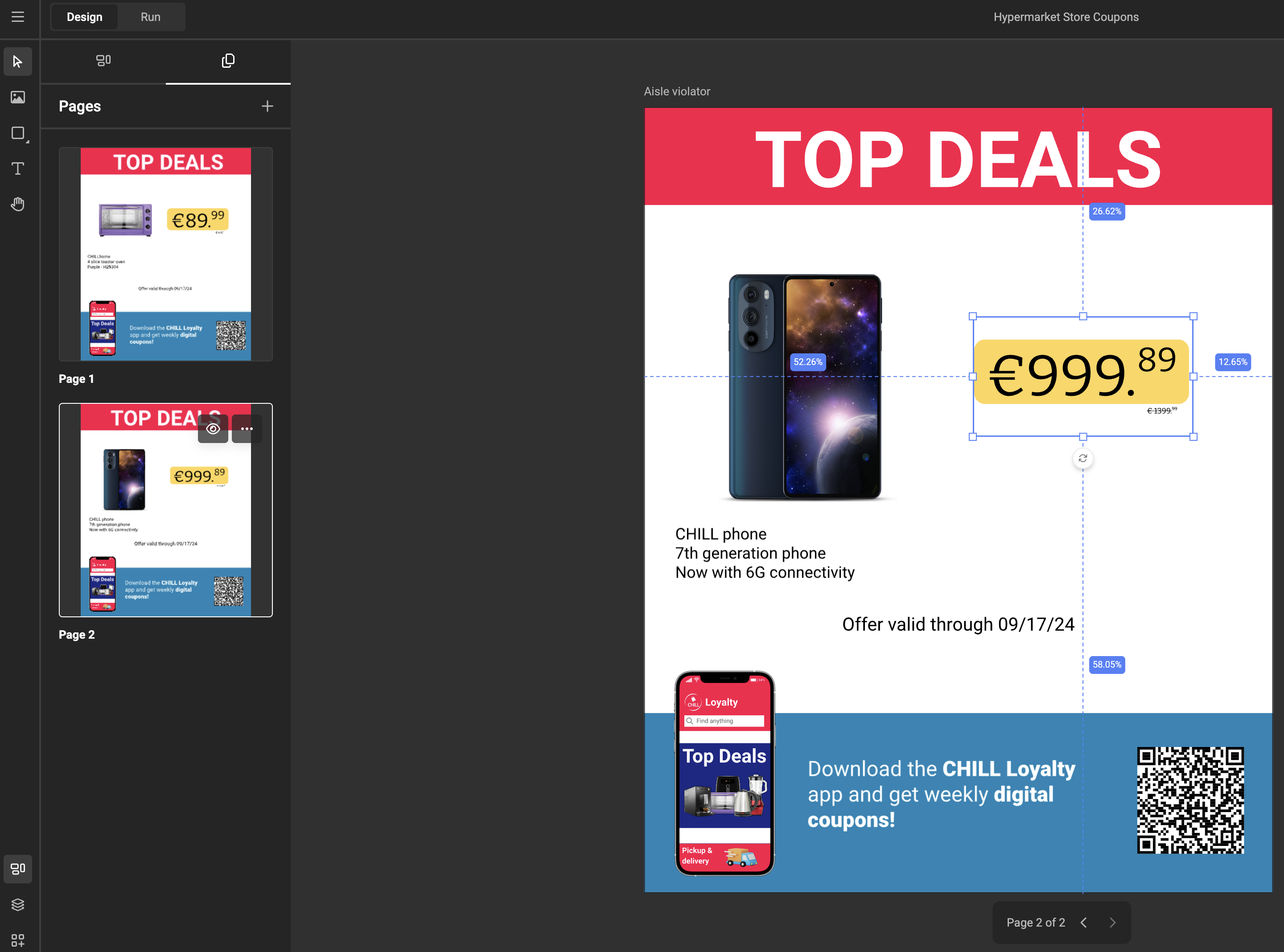

Two-page template showing one price tag component per page

Mapping doesn't change based on which page a component is on. You still open Manage mapping for each instance separately and connect it to its own variable set.

The structure behind this
flowchart LR
    subgraph Template
        T1["Item Price"]
        T2["Item Regular Price"]
        T4["Item Price 2"]
        T5["Item Regular Price 2"]
    end
    subgraph "Price tag (instance 1 on page 1)"
        C1A["price"]
        C2A["regular price"]
    end
    subgraph "Price tag (instance 2 on page 2)"
        C1B["price"]
        C2B["regular price"]
    end
    T1 --> C1A
    T2 --> C2A
    T4 --> C1B
    T5 --> C2B

Scenario 4 — Same design on front and back

You're designing a brochure. A product badge appears on the front cover and again on the back cover. Both should always show the same product — no separate data per page.

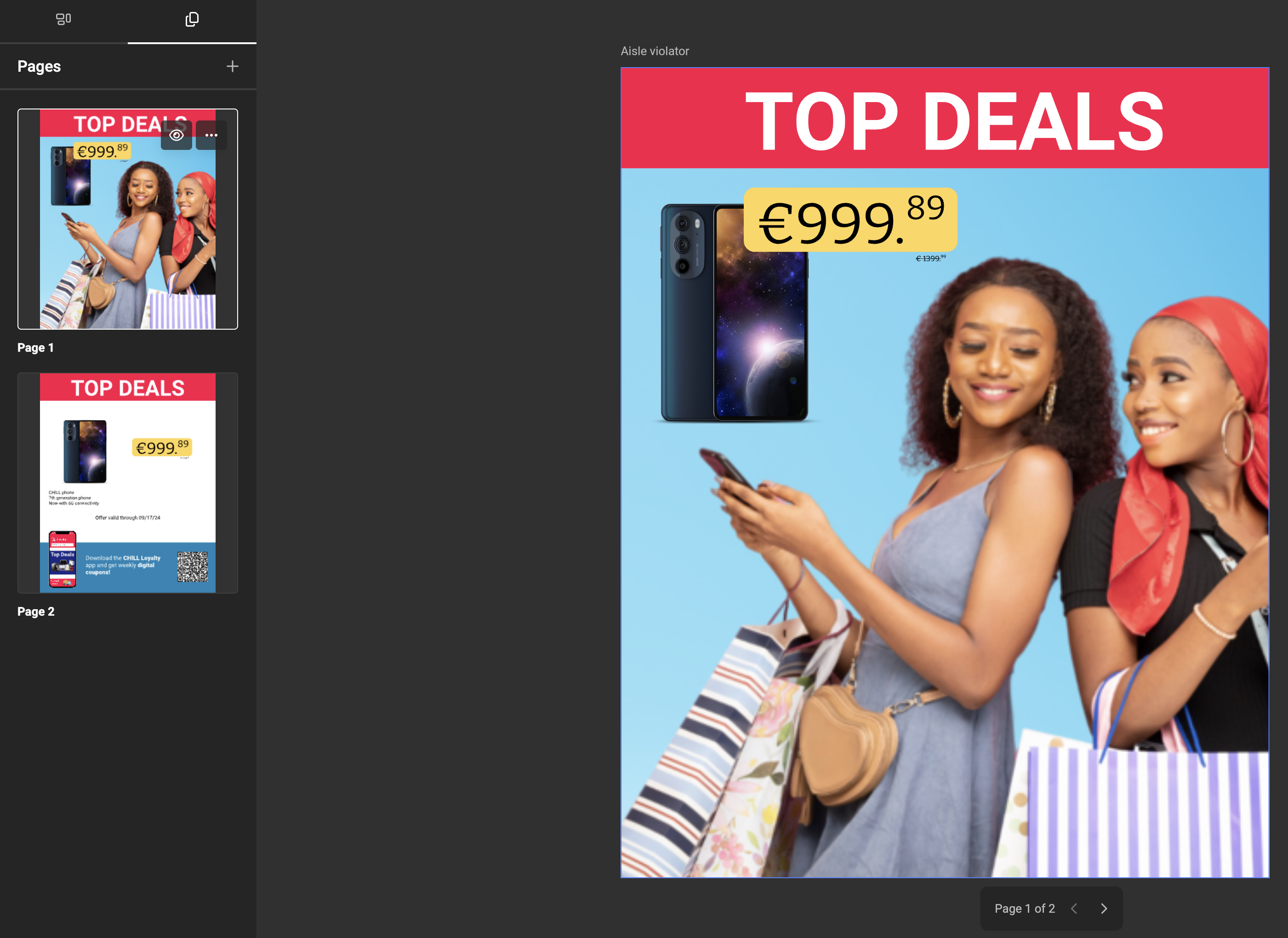

Two-page template showing the same component on page 1 and page 2, both connected to the same variables

You place the component on page 1 and again on page 2. When you open Manage mapping for page 2's instance, instead of creating new variables, you map each component variable to the existing template variables — the same ones already used by page 1.

Now both placements read from the same source. Change price once, and it updates on both pages simultaneously.

The structure behind this
flowchart LR
    subgraph Template
        T1["Item Price"]
        T2["Item Regular Price"]
    end
    subgraph "Page 1 (front) — instance 1"
        C1A["price"]
        C2A["regular price"]
    end
    subgraph "Page 2 (back) — instance 2"
        C1B["price"]
        C2B["regular price"]
    end
    T1 --> C1A
    T2 --> C2A
    T1 --> C1B
    T2 --> C2B

The template only needs two variables, regardless of how many times the component appears — as long as all instances should always show the same thing.

Combining scenarios

These patterns work together. A multi-page catalog might combine:

  • A header component shared between front and back (scenario 4)
  • Two product ads per page driven by independent variable sets (scenario 2)
  • Spread across multiple pages (scenario 3)

GraFx Studio groups the template variables by component instance in the variable list, so even a template with many mapped components stays organized.

At a glance

Design situation Instances Pages Template variables needed
One design element, used once 1 1 1× component's variables
Multiple same elements, each showing different data N 1 N× component's variables
Same as above, spread across pages N N N× component's variables
Same element on multiple pages, same data N N 1× component's variables
Grid of elements, one page N 1 N× component's variables

Constraint compatibility

Component variables can carry constraints — a number variable might be restricted to a specific range, a date variable might define a start date, end date, or excluded days. When you map a component variable to a template variable, these constraints apply at every point where a value enters the system.

At mapping time

If a component variable has a range constraint and the template variable you're mapping to has an incompatible or non-overlapping range, the mapping row shows an error state. The mapping cannot be applied until the ranges are made consistent — by updating either the component variable or the template variable.

At runtime — manual input (Studio and Studio UI)

If a user manually enters a value that falls outside the component variable's allowed range, the Engine rejects the value and the UI restores the previous valid value. The user cannot save an out-of-range value.

At runtime — data source

If a data source supplies a value that falls outside the component variable's range, a toast notification informs the user that the value is not valid. The value is replaced with the variable's default.

In batch output

If a batch row contains a value outside the component variable's range, that row is excluded from the generated output file. The error is recorded in the error report, which can be downloaded from the output task page.

Required component variables

A component variable can be marked as required. This signals that a value must be present for the component to render correctly.

When you map a required component variable to a template variable, the template variable is not automatically set to required. There is no visual indicator in Run Mode or Studio UI that the template variable feeds into a required component variable.

If output is generated while the mapped template variable is empty, the output fails. The error is included in the error report on the output task page.

Tip for template designers: When working with a component that has required variables, verify with the component author which variables are required. Document this in the template or communicate it to the operators who will fill in the values.

Actions and the propagation boundary

Variable mapping flows in one direction: template → component. This has a direct consequence for Actions configured inside a component.

If an Action inside a component sets or changes a variable value at runtime, that change stays within the component. The template-side variable — the one the component is mapped to — is not updated. At output time, the engine reads the template-side value, which remains unchanged. The output reflects the template's value, not what the component's Action produced.

This also means that if you expect output behavior to be driven by logic inside a component — for example, a layout name, a position, or a calculated value — that logic needs to live on the template side instead. A component's Actions are scoped to the component's own rendering; they cannot push results back through the mapping to the template.

See Actions in a component for a full explanation, including the output processing order behaviour and guidance on what is safe to put in component Actions.
