GraFx Publisher Converter for Adobe® Illustrator®

Download

Get the latest plugin from the GraFx Publisher plugin downloads page.

The plugin has been tested and is compatible with Adobe® Illustrator® versions from 2024 and 2025.

The latest tested version is 29.2.1 (January 2025).

Converter Overview

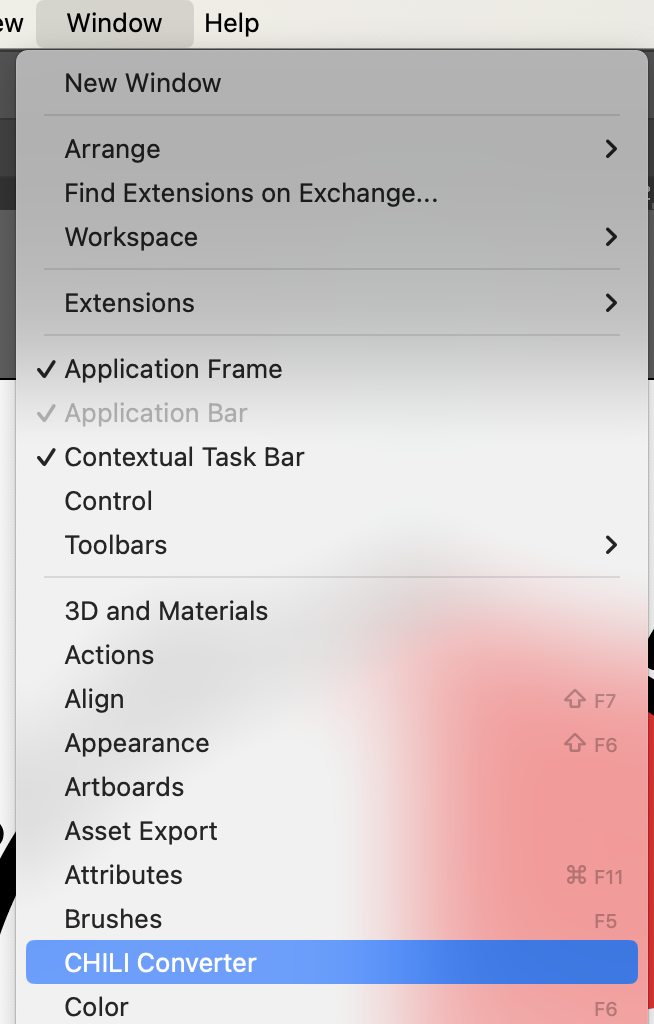

The Adobe Illustrator Window menu with the "CHILI Converter" entry highlighted in the panel list

Server Connection Setup

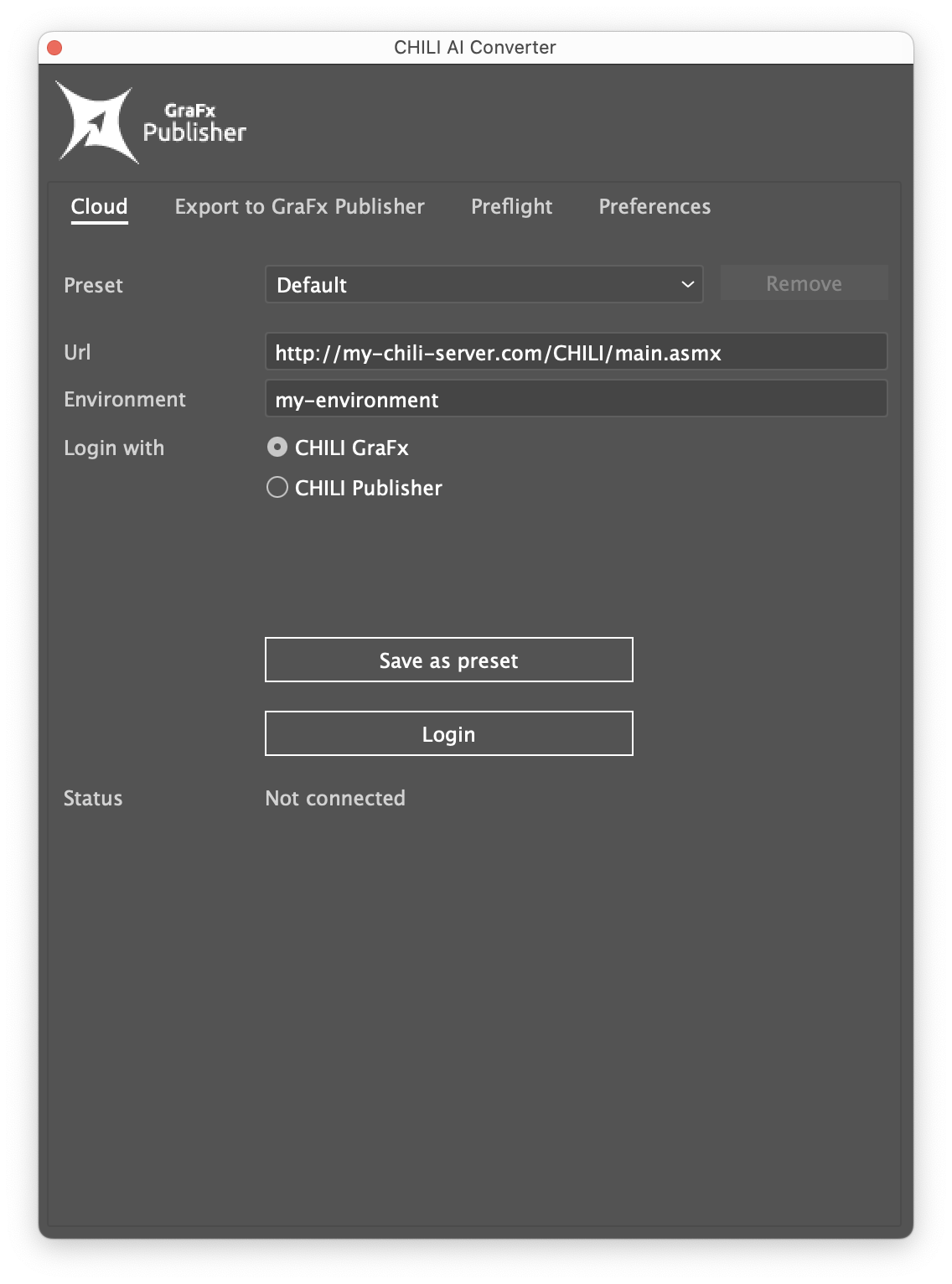

The CHILI AI Converter window on its Cloud tab, with Url and Environment filled in and Status "Not connected"

  • Preset: Save your server connection as a preset for easy future access.
  • URL: Enter the URL to your GraFx Publisher instance.
    • GraFx Publisher format: https://[your CHILI url]/main.asmx
    • Legacy systems format: https://[your CHILI url]/CHILI/main.asmx
  • Environment: Specify the name of your environment.
  • Login: Authenticate using your CHILI GraFx platform credentials.
  • Status: Check your connection status.

Exporting to GraFx Publisher

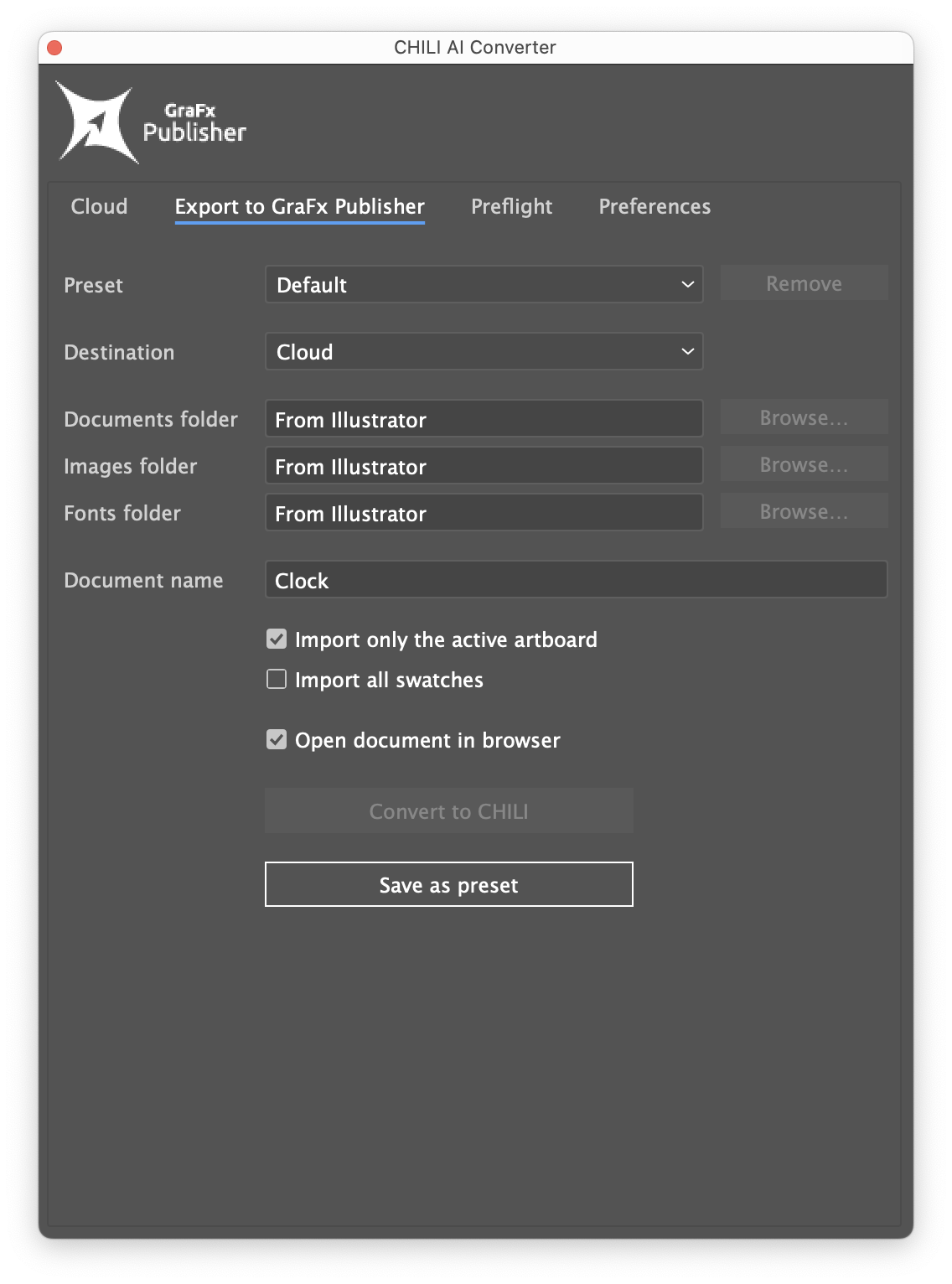

The "Export to GraFx Publisher" tab, with Destination "Cloud", three folder fields and Document name "Clock"

Configure your export settings:

  • Preset: Use a previously saved preset.
  • Destination: Choose between uploading to GraFx Publisher or creating a local CHILI package.
  • Folders: Designate folders for documents, images, and fonts. Ensure these exist before conversion.
  • Document Name: Set your file's name.

Preflight Checks

Identify potential issues before conversion with Preflight checks.

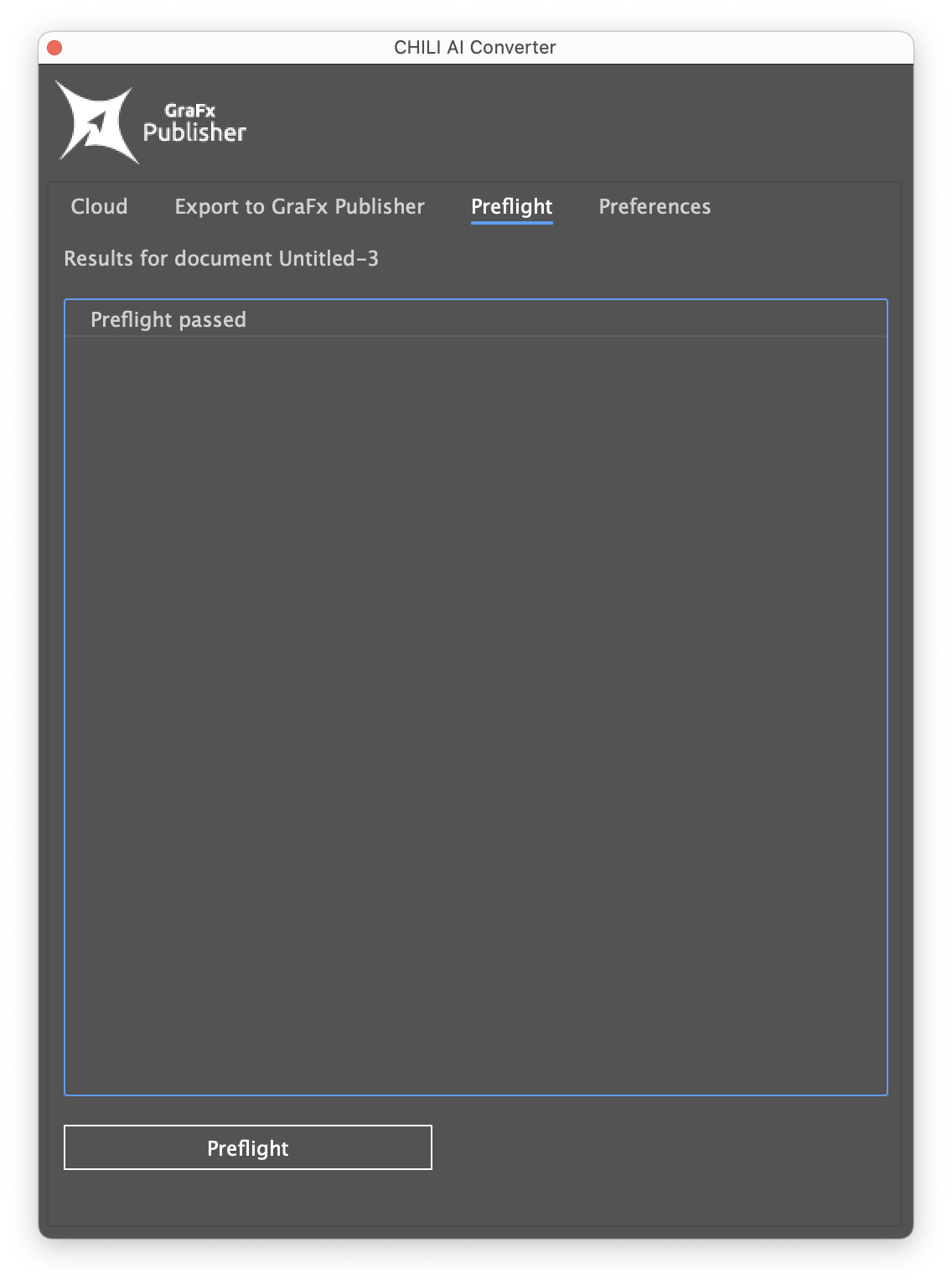

The Preflight tab reporting "Preflight passed" with no issues for document Untitled-3

Preferences

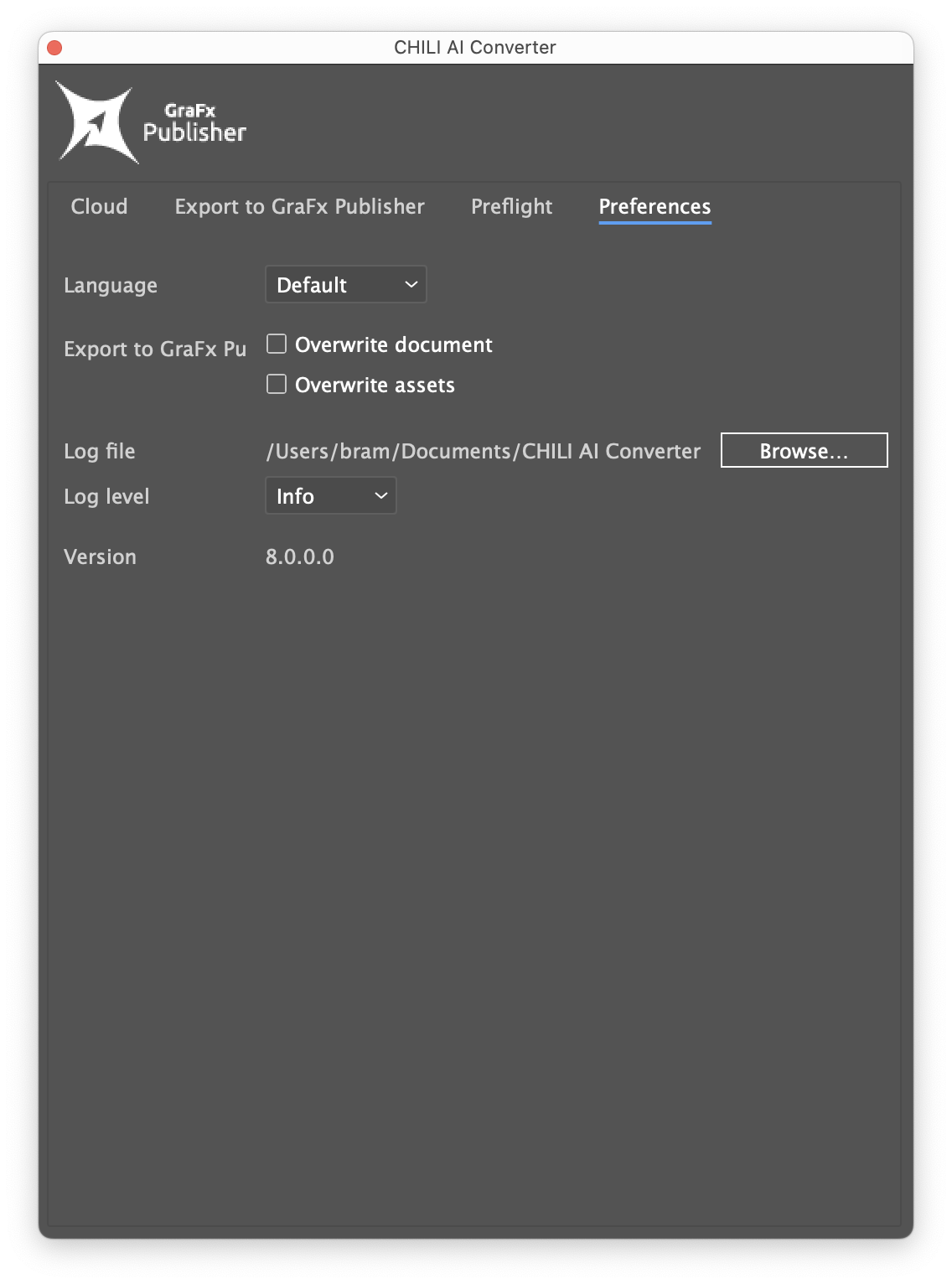

The Preferences tab with Language "Default", the overwrite options, Log level "Info" and Version 8.0.0.0

Customize your settings:

  • Language
  • Overwrite Options
  • Logging: Enable detailed conversion logs.
  • Log Level: Select the amount of detail for your logs.
  • Version: View the current version.
