Build a component

This guide walks you through creating a component in GraFx Studio. A component is built in its own workspace, which is similar to the Template Designer Workspace but with a focused set of features for reusable design elements.

Output capabilities when using components

Templates that use components support print, static digital, and animated digital (GIF, MP4) output.

When rendering animated output, the component frame can be animated in the template timeline. The content inside the component does not animate.

HTML output is not supported for templates that include components.

See Components for an introduction to what components are and when to use them. New to components? Start with the tutorial for a full end-to-end walkthrough.

Create a component

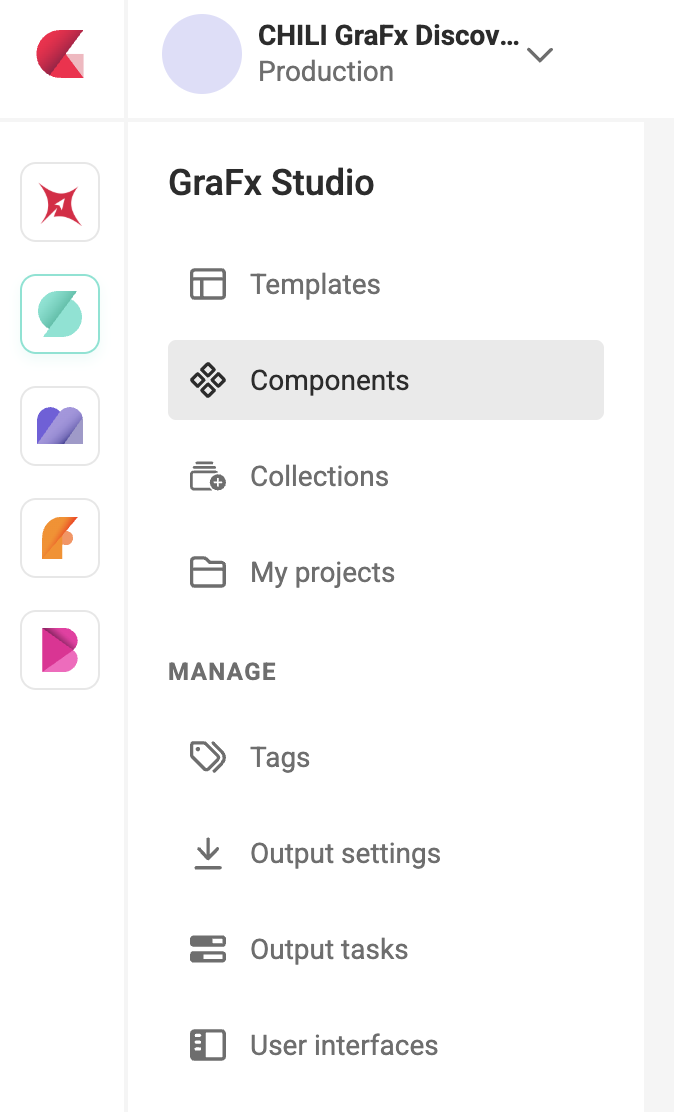

In GraFx Studio, select Components from the left navigation.

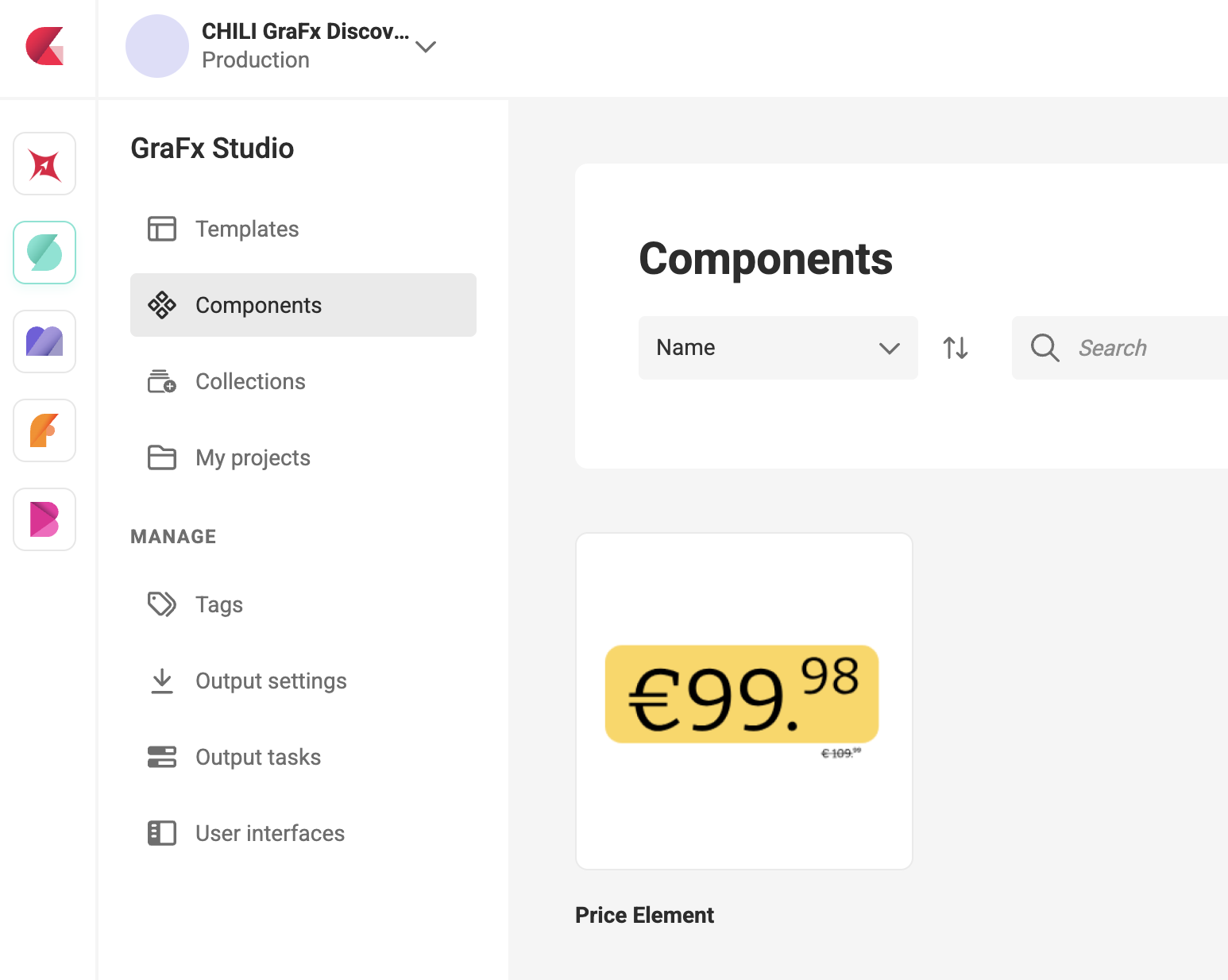

The Components overview shows all components in your environment, with the same grid and list view options as the Templates overview.

To create a new component, click + Create component in the top right.

The component workspace

The component workspace opens after you create or open a component. It looks similar to the Template Designer Workspace — the same canvas, the same left toolbar, the same properties panel on the right.

The key difference is what is not there, by design:

Feature	Reason
Digital animated intent	Animation intent is set on the parent template. Component content does not animate — but the component frame can be animated in the template timeline.
Multi-page	A component is a single reusable element, not a document
Output / Export button	Output is produced by the parent template, not the component
User Interface settings	UI settings belong at the template level
Bleed & slug	Print production settings live on the template
Private data	Not supported in components
List and data source variable types	Lists and data sources are provided by the template and passed in through variable mapping
Variable visibility conditions	Component variables are not shown to end users; the template controls which variables they see
Frame constraints	End users don't move or resize frames inside a component; constraints apply to the component frame in the template
Add component as a frame	Not supported in V1
Change page size via actions	The template determines the frame size — the component adapts to the space it's given

Everything else works as expected: you can add frames, apply Brand Kit styles, create layouts, define variables, and use actions.

Actions in a component

Actions are available in the component workspace and work the same way as in templates — you define a trigger and a JavaScript block that runs when the trigger fires. They are useful for controlling visibility, switching layouts, applying styles, or responding to variable changes within the component's own scope.

However, there are two important limitations that are easy to overlook.

Variable changes do not propagate to the template

Data flows one way: from the template into the component. If an Action inside a component sets or modifies a variable value, that change stays within the component. The template never receives it.

This means: if you map a component variable to a template variable, and an Action inside the component updates that component variable at runtime, the template-side variable is not updated. At output time, the engine reads the template-side value — which is still whatever it was before the Action ran — and that is what appears in the output.

Component Actions cannot drive template output

Do not use Actions inside a component to set values that you expect to appear in the template or in the output. Those values will silently remain empty or unchanged on the template side.

If you need logic that affects output-level variable values, build that Action on the template, not inside the component.

Output processing order may differ from workspace order

When GraFx Studio generates output, it processes template variables in an internal order that does not necessarily match the order they appear in the workspace or variable list. If an Action in a component fires in response to one variable and changes something (like a frame position), a subsequent variable processed by the engine may overwrite that result.

The consequence: what you see on the canvas in Design Mode or Run Mode may not match what the output renders. The system is working as designed — but the workspace and the output engine apply values in a different sequence.

Canvas ≠ output when Actions affect positions or layout

If a component uses Actions that change frame positions, layout selection, or other properties based on variable values, always validate the actual output — not just the canvas preview. Discrepancies between canvas and output are a known consequence of the variable processing order at output time.

What Actions in a component are safe for

Actions inside a component work reliably for anything that stays within the component's own rendering scope:

• Showing or hiding frames based on component variables
• Switching between internal layouts
• Applying styles or copyfitting rules
• Responding to a variable change to adjust the internal design

For everything else — especially anything that needs to surface in the template or in the output — build the Action on the template side, where it has full visibility over the output rendering process.

Page size

If an Action inside a component attempts to change the page size, it will fail with an "Action failed" error at output time. A component renders within the frame the template provides — it cannot change the frame itself. To adapt a component's appearance to different frame sizes, use multiple layouts and Resize Mode instead.

Layouts in a component

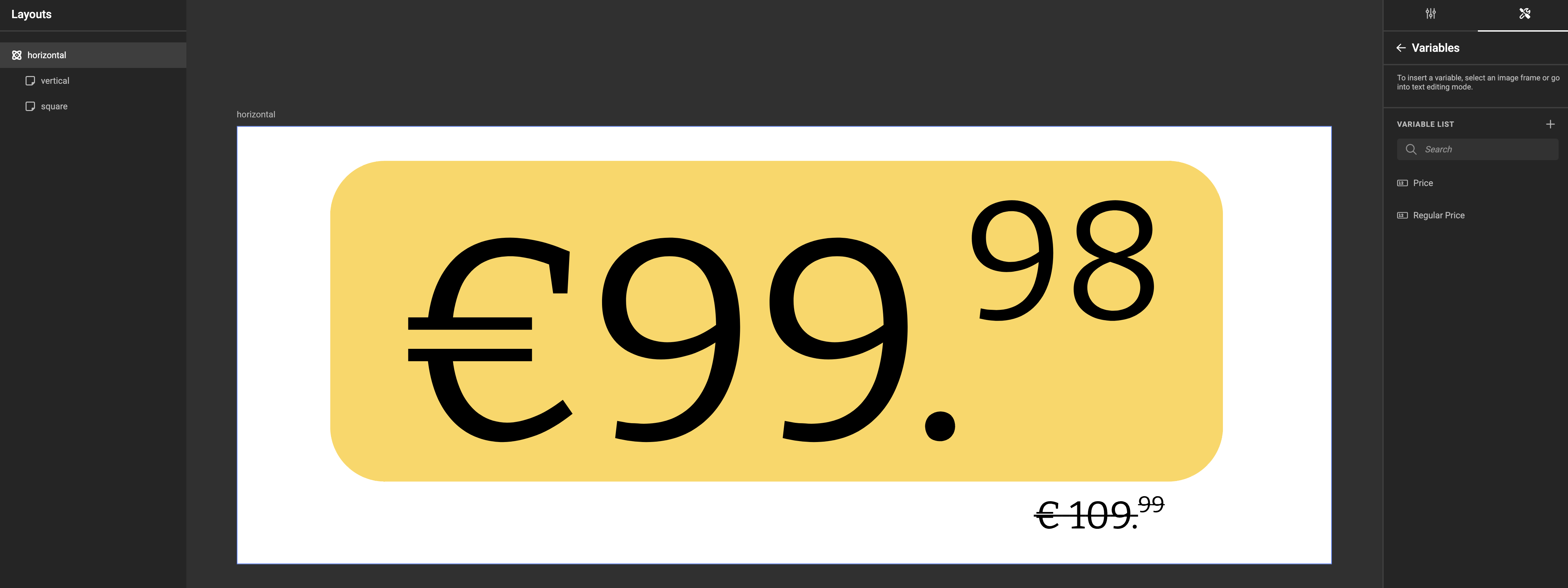

A component can have multiple layouts, just like a template. Each layout can have its own design — for example a square, a horizontal, and a vertical version of the same pricing element.

These layouts are what makes Resize mode powerful: when the component is placed on a template, GraFx Studio can automatically pick the best-matching layout based on the frame size.

Variables in a component

Variables work the same way as in templates, with one difference: the List variable type is not available in components.

List variables present a dropdown of predefined options to the end user. Since variable mapping flows one-way from template into the component, a list variable on the component side would create a conflict — the template variable driving the value wouldn't know which options to respect. For this reason, only mappable variable types are supported in components.

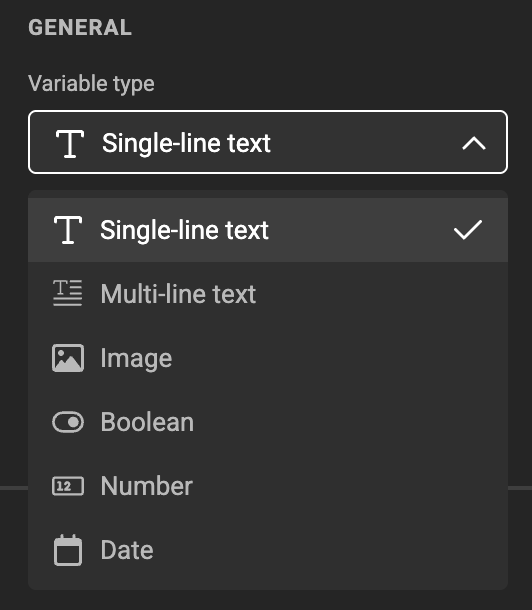

Supported variable types in components:

• Single-line text
• Multi-line text
• Number
• Image
• Boolean (toggle)
• Date

Image variables require a different setup

A component image variable can't be mapped to a template image variable. Map it to a text or list variable holding the asset ID instead. See Passing an image into a component.

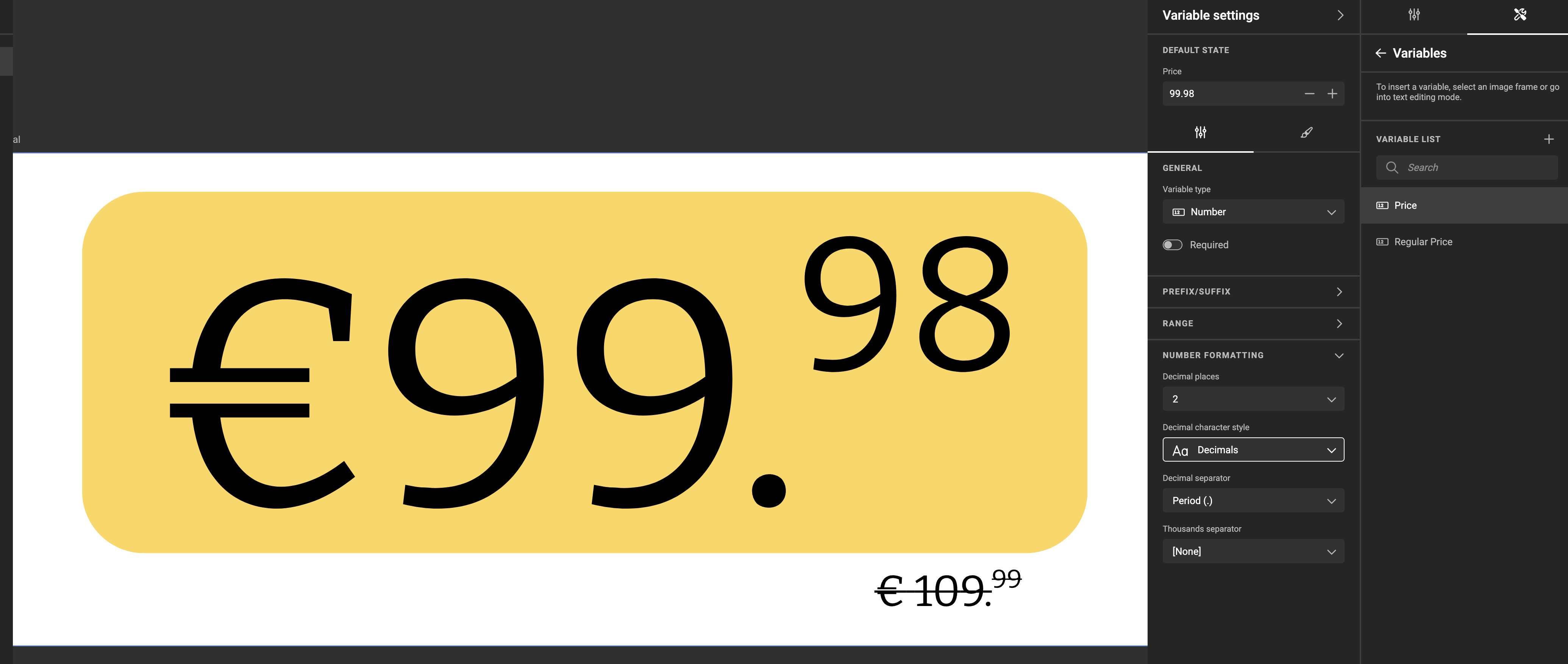

Variables defined in a component are the values that template designers can connect to template variables through variable mapping. Keep your variable names clear and descriptive — they appear by name in the mapping modal.

Brand Kit

A component has its own Brand Kit, separate from the template's Brand Kit. This means a component can carry its own colors, fonts, and paragraph styles that are managed independently from the templates that use it.

If you want the template to be able to change a color or style inside a component, that value needs to be exposed as a variable and mapped from the template.

Component Canvas

In template designs, elements can extend beyond the canvas boundary. This is commonly used to hide part of an image — when templates render for end users, any elements outside the canvas are not visible.

However, with components, elements outside the canvas will be rendered when the component is used in a template. This can lead to unwanted results.

To avoid this, you should either crop the image in Studio or crop the underlying asset before importing it into Studio, so that it fits entirely within the component canvas.

Design & Run Mode

Both Design Mode and Run Mode are available in the component workspace. Use Run Mode to test how variables and actions behave inside the component before placing it in a template.

When a component is placed inside a template, it always runs as a project — both in the template's Design Mode and Run Mode.

Next step

Once your component is built, place it in a template:

Use components in a template →

Passing an image into a component

A component's image variable can't be mapped to a template image variable. Instead, map it to a template variable that holds the image's asset ID. The component then loads that image itself.

Use the same connector

The component loads the image through its own connector, so the asset ID must come from that connector — for example, a GraFx Media ID when the component uses GraFx Media.

In the component, you only need an Image variable — for example, Product Image — driving the image frame.

In the template, choose how the end user picks the image:

• From a fixed set of images, by name → use a list variable
• By browsing the connector for any image → use an image variable and a text variable

Choose from a list

1. Create a Single-select list variable — for example, ProductImageList1.
2. Add one item per image. Set its value to the asset ID, and its display name to what the end user sees — for example, Blue sneaker.
3. Open Manage mapping for the component and map Product Image to ProductImageList1.

When the end user picks Blue sneaker, the component shows that image.

Browse for any image

The template's image variable can't be mapped directly, so an Action copies its asset ID into a text variable first.

1. Create an Image variable — for example, ProductImage1 — using the same connector as the component. This is what the end user browses.
2. Create a Single-line text variable — for example, ProductImageID1.

3. Add an Action with trigger Variable value changed → ProductImage1:

   setVariableValue("ProductImageID1", getTriggeredVariableValue());


4. Open Manage mapping for the component and map Product Image to ProductImageID1.

When the end user picks an image, the Action copies its ID and the component shows the same image.

Good to know

• Several instances: repeat the template setup for each one (ProductImageList2, ProductImageID2, …).
• From a data source: you can also map Product Image to a text column of a Data source variable. See Map to a data source column.
• Wrong or missing ID: the component shows the "Image not found" placeholder.
• Older components that use an extra text variable and Action inside the component keep working. You can remove those and map Product Image directly.
