Tutorial: Build and use a pricing component

This tutorial walks through the complete journey of creating a component and using it in a template — from a blank workspace to a finished two-coupon sheet where each coupon shows a different price.

What you'll build: A Price Element component with two variables — Price and Regular Price — placed twice on a template, with independent variable mapping per instance.

Time: approximately 15–20 minutes.

Before you start: You should be familiar with the Template Designer Workspace and know how to create variables in a template. If not, review Variables first.

---

Step 1 — Plan before you build

Before opening the workspace, decide what the component needs to display and expose as variables. This saves time later.

For a pricing element, you need to show two values per coupon:

• A price (e.g. €89.99)
• A regular price (e.g. €109.99) — shown as a strikethrough to indicate the discount

These become the component's two variables. Everything else — the yellow badge design, typography, layout, brand rules — is part of the fixed design inside the component.

Naming tip: Give variables clear, descriptive names. They appear by name in the mapping modal when template designers connect them to template variables. Price and Regular Price are immediately understandable.

---

Step 2 — Create the component

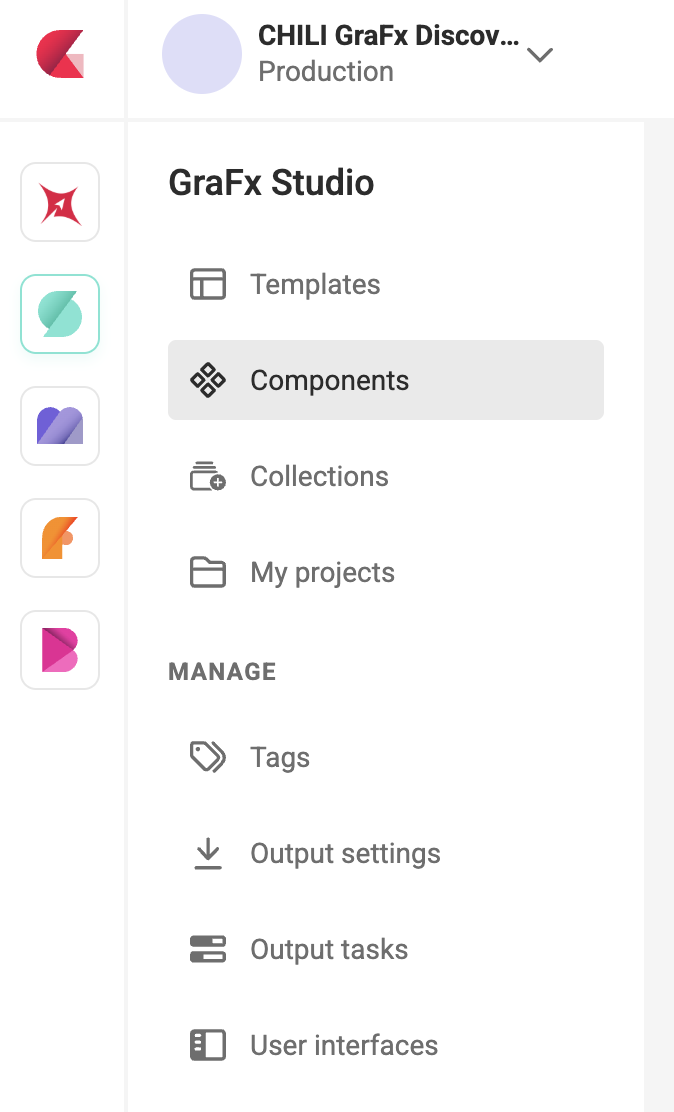

In GraFx Studio, click Components in the left navigation.

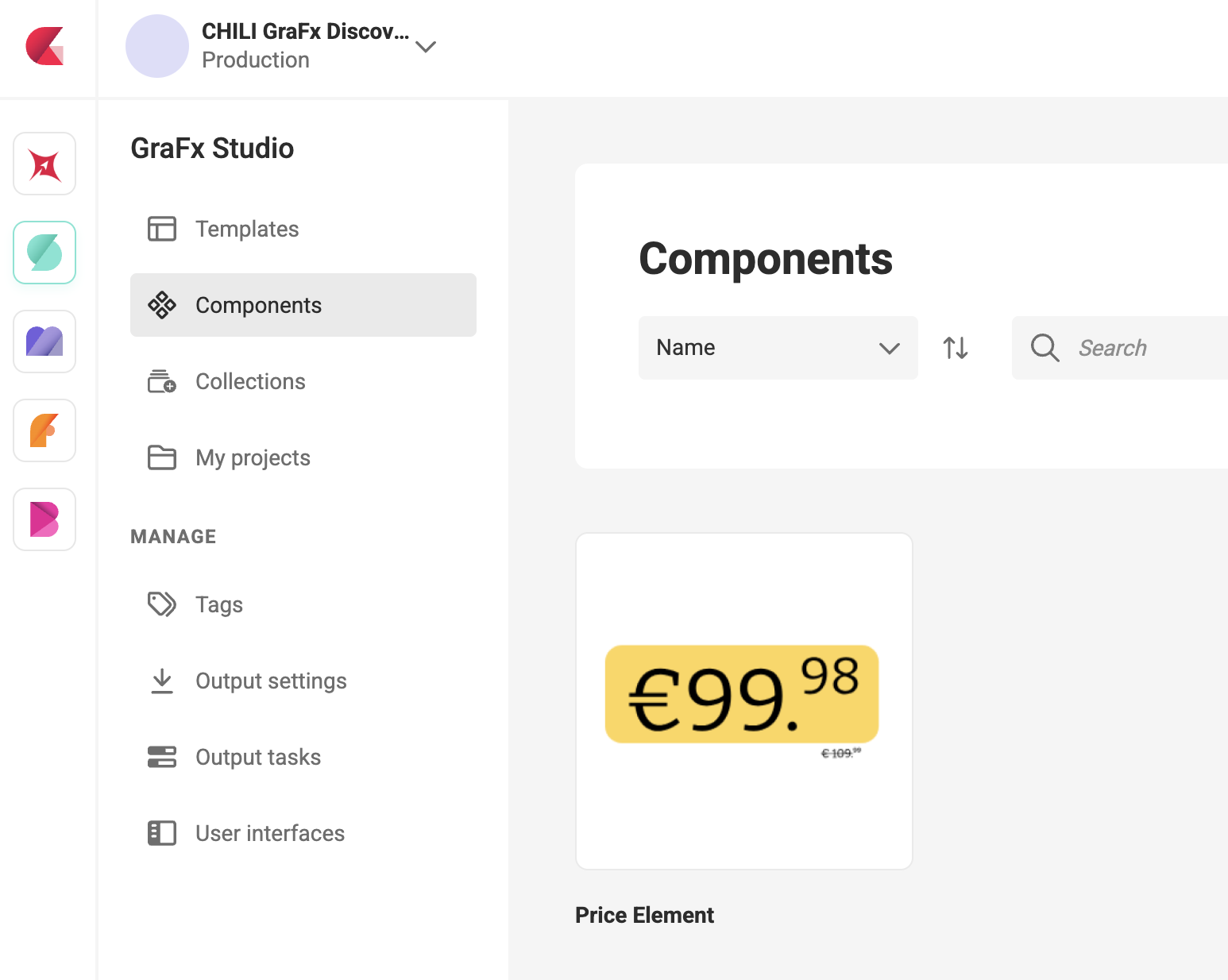

The Components overview opens, showing all available components. Click + Create component in the top right.

Give the component a clear name: Price Element. Click Create.

The component workspace opens — it looks similar to the Template Designer Workspace, with the same canvas, toolbar, and properties panel.

---

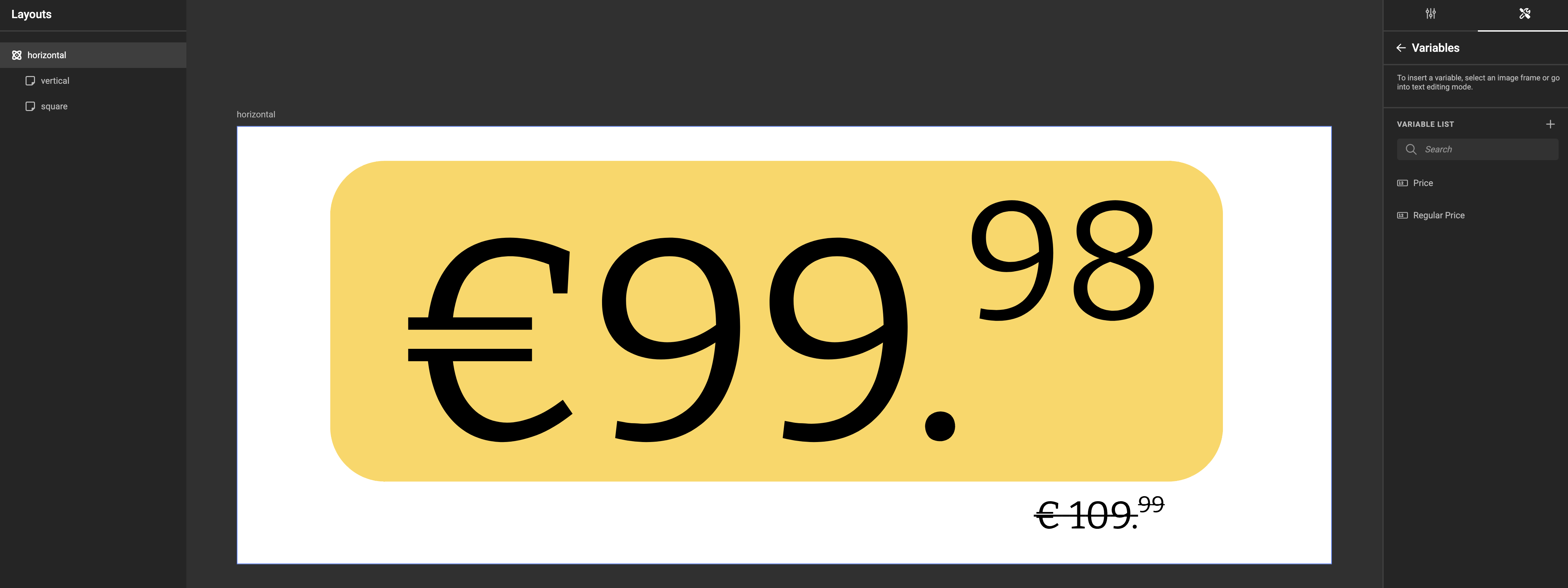

Step 3 — Design the layout

Design the pricing badge on the canvas. For this tutorial, the Price Element is a yellow rounded badge that shows the price prominently, with the regular price below it in a smaller strikethrough style.

You can add multiple layouts to handle different frame orientations — for example a horizontal, vertical, and square version of the same badge.

Keep the design self-contained. Everything a template designer should not be able to change — colors, fonts, the badge shape — lives inside the component and is not exposed as a variable.

---

Step 4 — Add variables

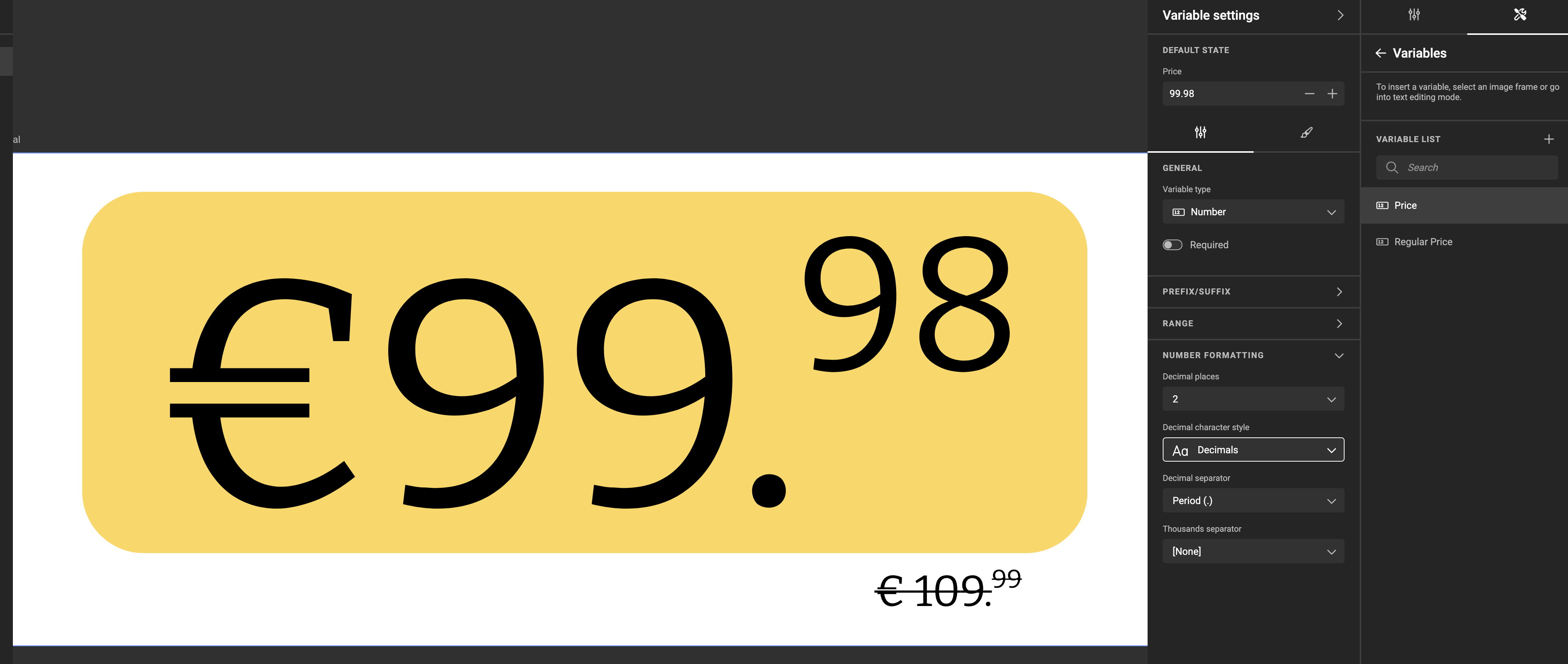

Open the Variables panel. Add two variables:

Variable name	Type
Price	Number
Regular Price	Number

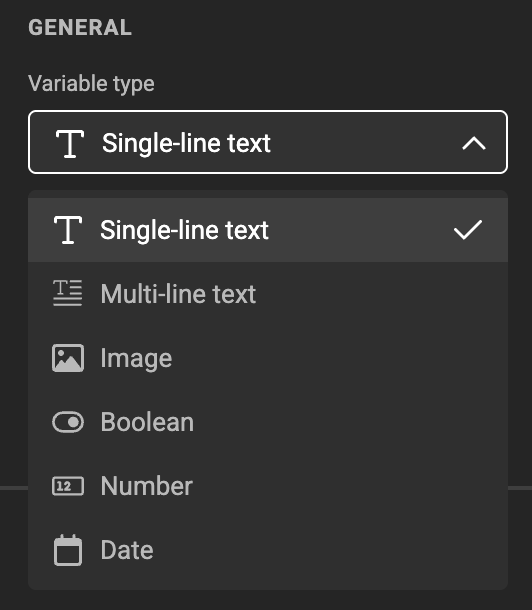

Use the Variable type dropdown to set each variable to Number. Number variables support formatting options — decimal separator, currency symbol, and number of decimal places — which you configure in the variable settings.

Connect each variable to the appropriate text frame on the canvas:

• Select the price text frame → in the properties panel, link the text content to Price
• Select the regular price text frame → link the text content to Regular Price

The frames now display whatever values are passed in through those variables.

---

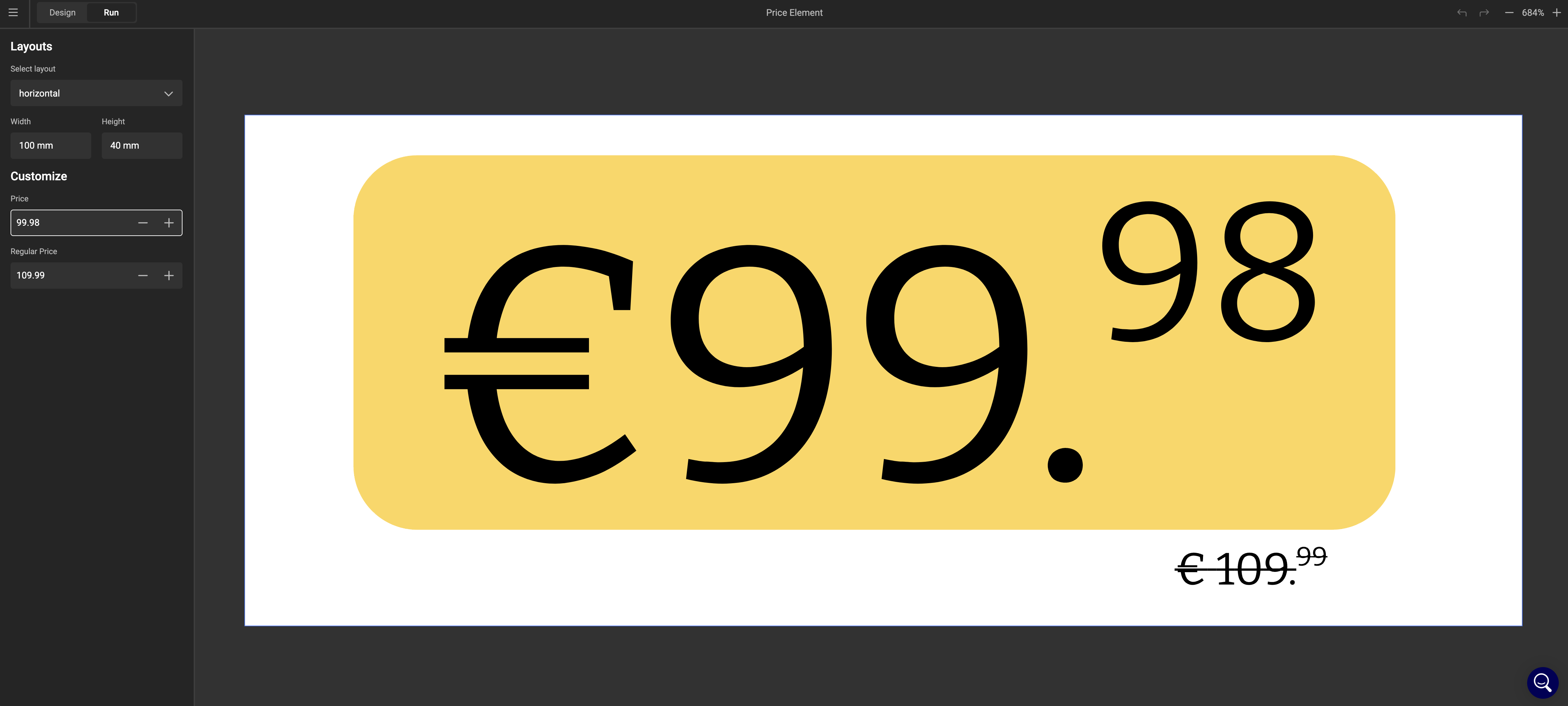

Step 5 — Test in Run Mode

Switch to Run Mode to check that the variables work correctly before placing the component in a template.

Enter test values — for example 89.99 for Price and 109.99 for Regular Price. Confirm the layout looks right and the numbers format as expected.

Switch back to Design Mode and adjust as needed.

---

Step 6 — Save the component

The component is ready. Save it. It is now available in the Components library for any template designer in the environment to use.

---

Step 7 — Create the template

Switch to Templates in the left navigation and create a new template. Name it something like Store Display.

Set up your template canvas — for example a landscape banner layout that has room for two component instances side by side.

---

Step 8 — Place the first component instance

In the Template Designer Workspace, click the Resources icon in the bottom left toolbar. Select Components.

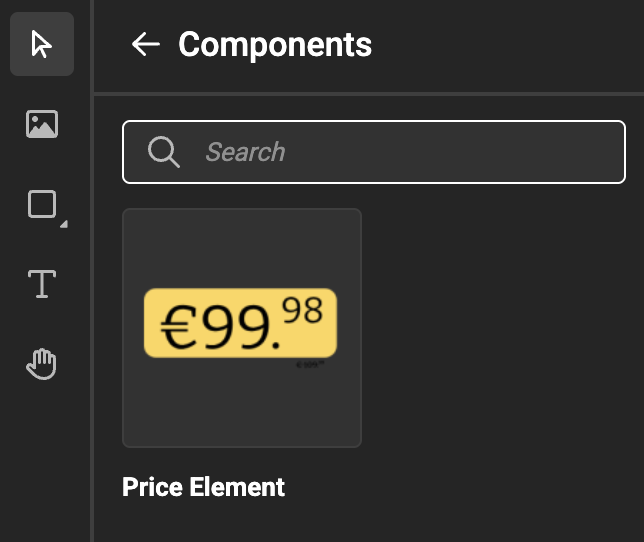

The component browser opens. Search for Price and click Price Element to place it on the canvas.

Move and resize the component frame to position it on the template.

---

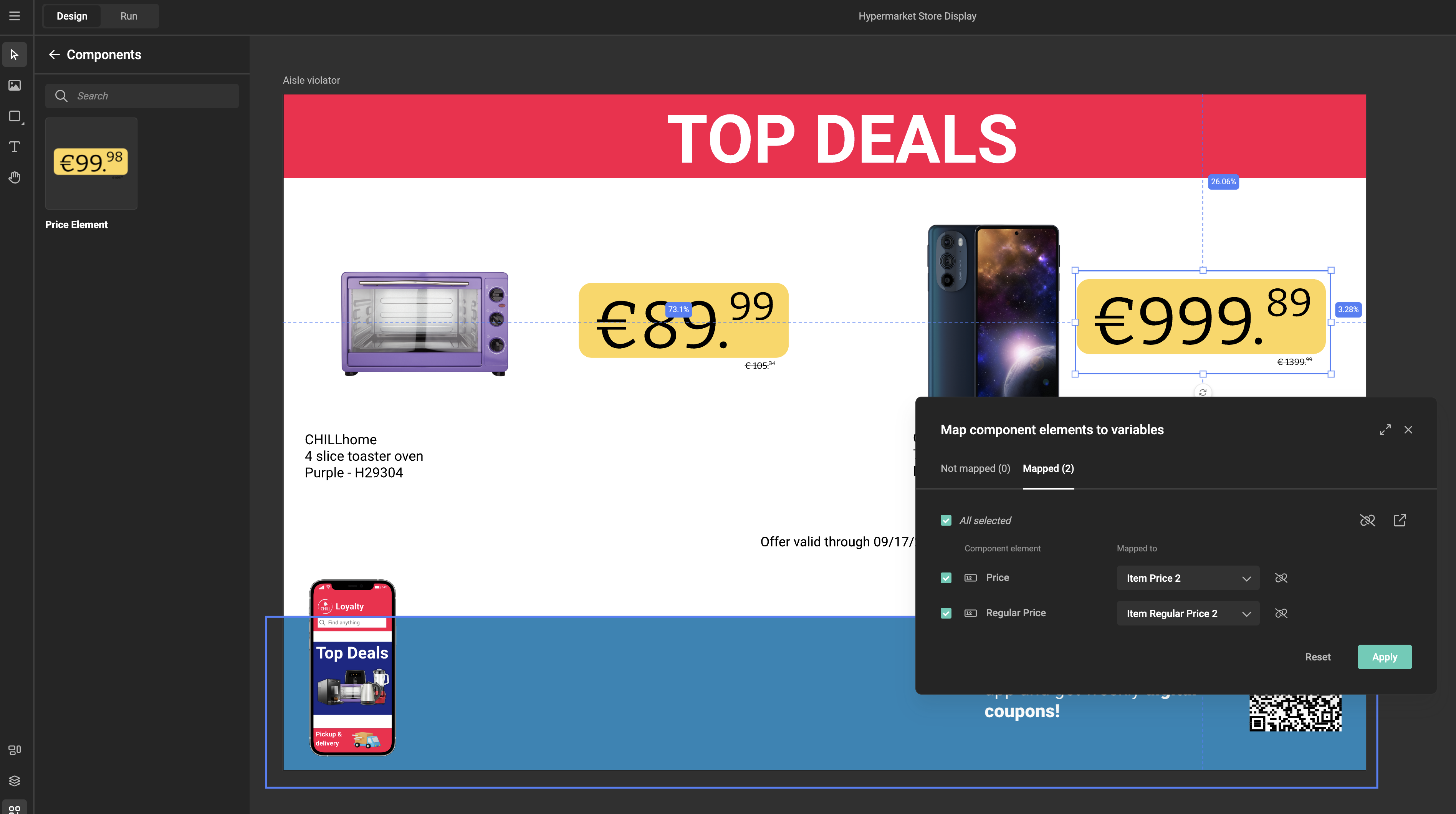

Step 9 — Place the second instance

Click Price Element in the component browser again. A second independent instance is placed on the canvas.

Move and resize it to sit alongside the first instance — each one will show a different product price.

---

Step 10 — Map variables for instance 1

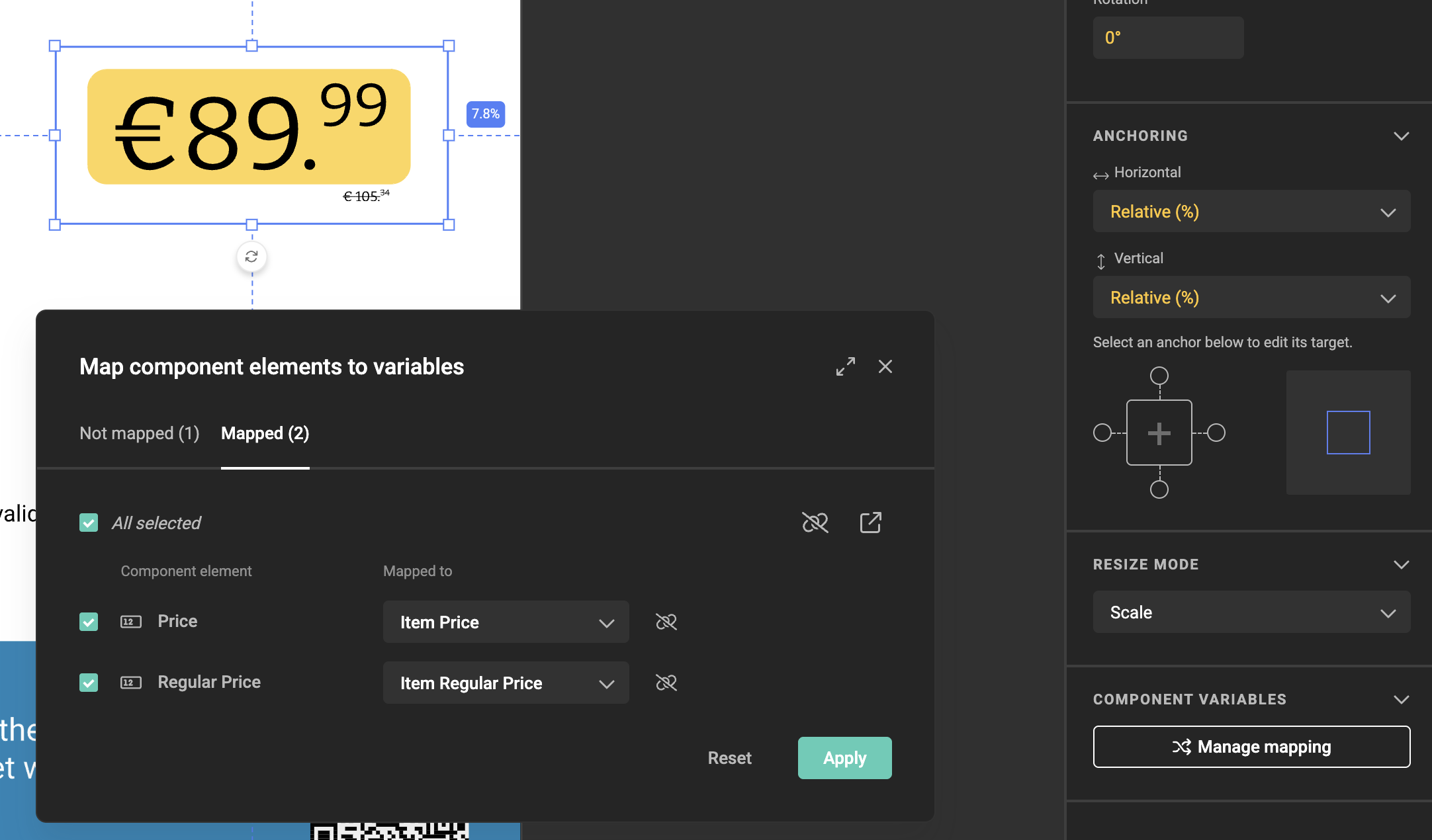

Select the first component frame. In the right properties panel, find the Component Variables section and click Manage mapping.

The Map component elements to variables modal opens.

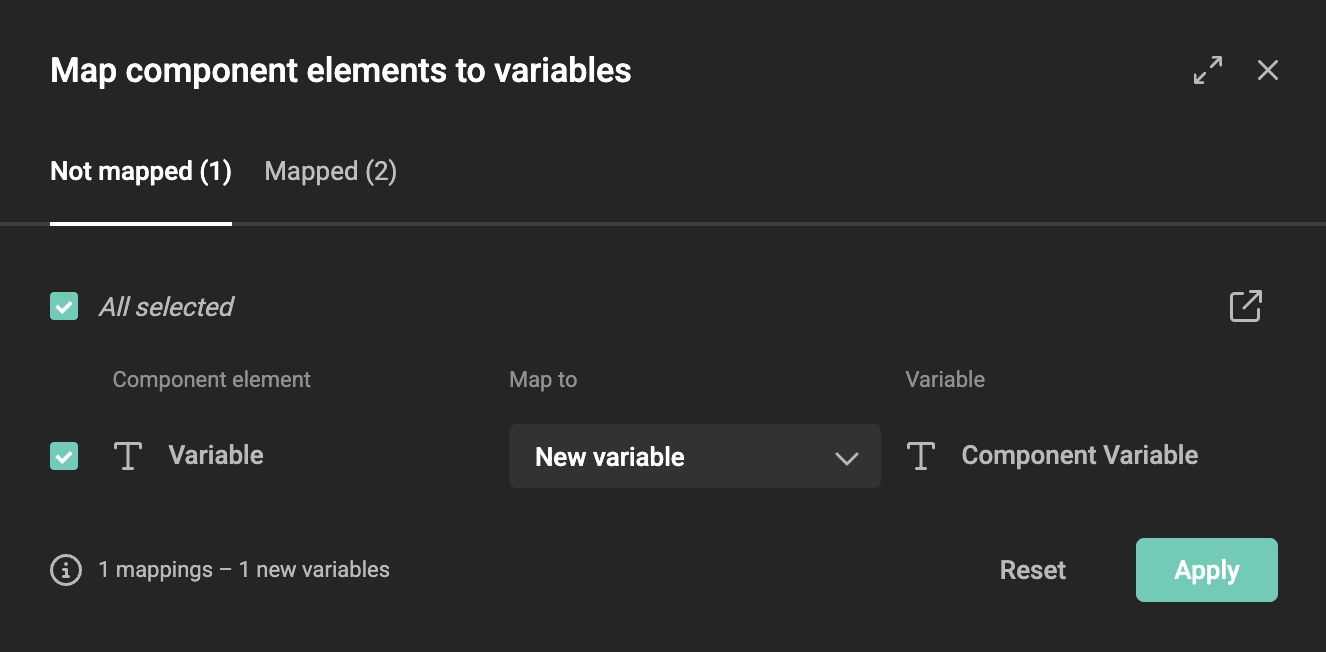

Both component variables appear under the Not mapped tab.

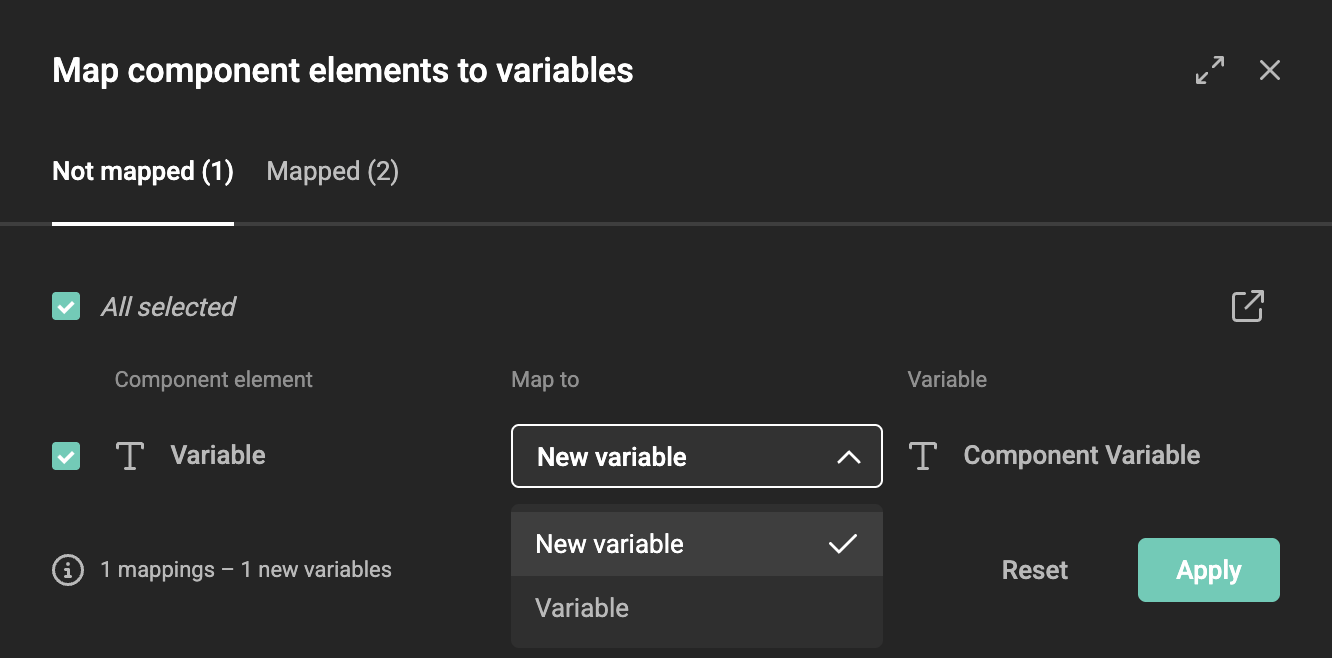

Leave Map to set to New variable for both and click Apply. GraFx Studio creates two new template variables:

Component variable	New template variable
Price	Item Price
Regular Price	Item Regular Price

---

Step 11 — Map variables for instance 2

Select the second component frame. Click Manage mapping again.

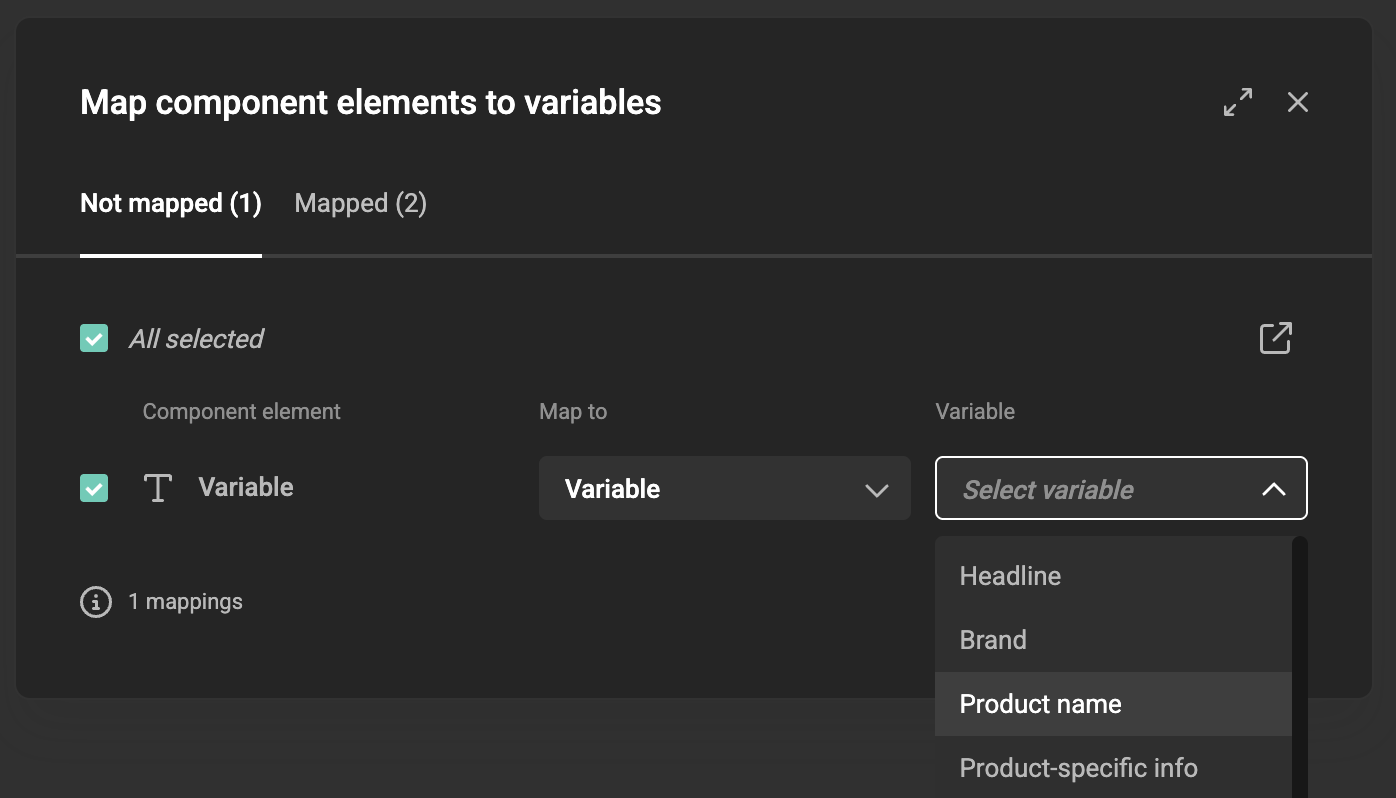

In this tutorial, instance 2 is mapped to the same template variables as instance 1 — Item Price and Item Regular Price. Set Map to to Variable and choose the existing variables from the dropdown.

Both component instances now share the same two template variables. Change Item Price once, and both instances update.

Want each instance to show different data? Set Map to to New variable instead. GraFx Studio creates a second set of template variables — for example Item Price 2 and Item Regular Price 2 — giving each instance its own independent values.

---

Step 12 — Check the variable list

Open the Variables panel. You'll see Item Price and Item Regular Price listed as regular template variables — not in a component group. Because instance 2 was mapped to existing variables, no new variables were created and no new group was added.

If you had mapped instance 2 to new variables, a second component group would appear with its own set. In this tutorial there is one group — from instance 1 — and the existing variables are shared.

These variables work like any other template variable — they can be filled in manually in Run Mode, driven by a data connector, or used in actions.

---

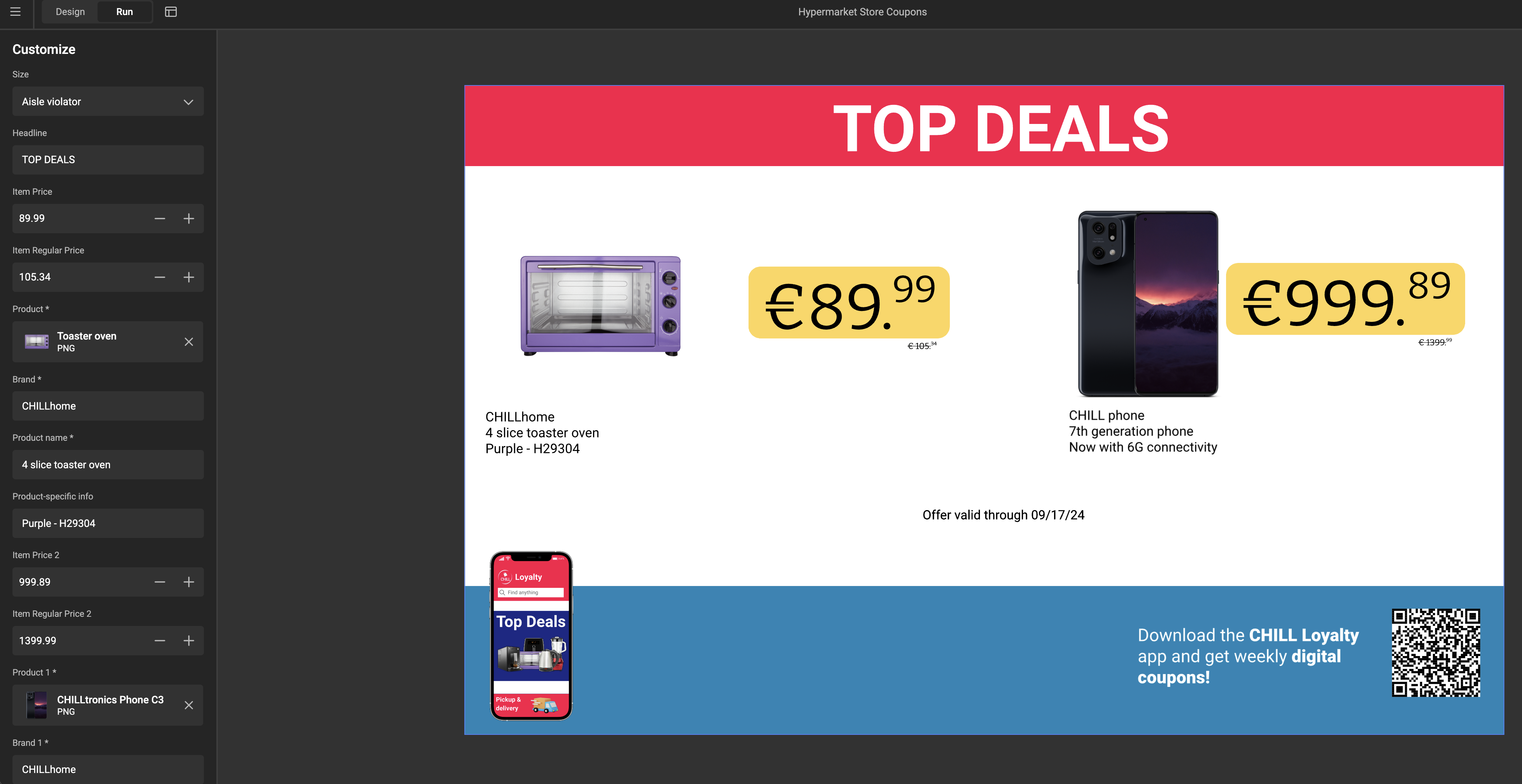

Step 13 — Test the complete template

Switch to Run Mode. Enter values for each instance — two different prices, two different regular prices.

Both component instances display their own price independently, using the same component design.

---

What you've built

• A Price Element component with two Number variables, reusable across any template
• A template with two instances of that component, both connected to the same two template variables
• An understanding of when to map to new variables (independent data per instance) vs existing variables (shared data across instances)

If the pricing component design ever needs to change — a new font, an updated color, a different badge shape — you edit the component once. Every template using it updates automatically.

---

Next steps

• Component variable mapping — understand all mapping patterns including multi-page and shared mappings
• Resize Mode — add multiple layouts so the component adapts to different frame sizes
• Build a component — full reference for the component workspace
