Defining template variables

Template Variables

When referring to variables we can mean Template variables or JavaScript variables. In the context of this page, we are talking about Template variables, unless stated differently.

In the properties panel (right), choose the wrench & screwdriver tool.

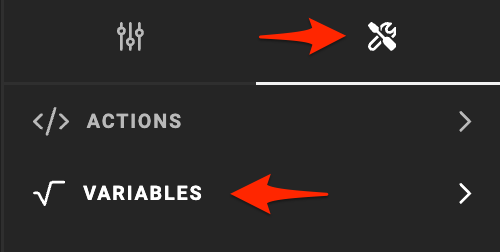

Arrows pointing at the wrench-and-screwdriver tab and at VARIABLES in the list below it

Then choose Variables

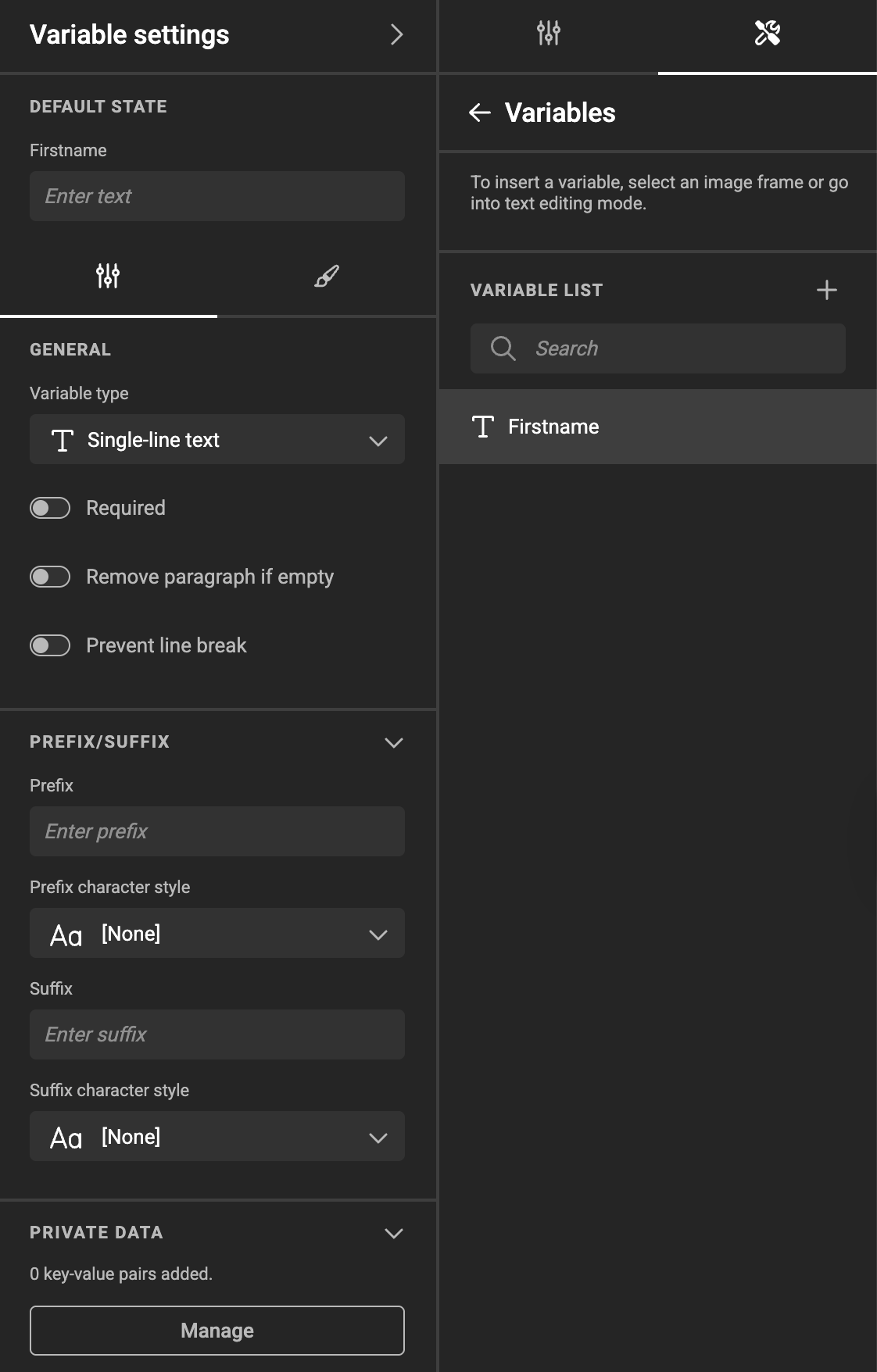

The VARIABLE LIST holding one Firstname variable, with its settings panel open alongside

A panel will appear, where you can define your template variables.

A list of all template variables that are available in the document shows

  • Variable type
  • Variable name
  • Pencil icon (when hovering over the variable)
  • "..." menu (when hovering over the variable)

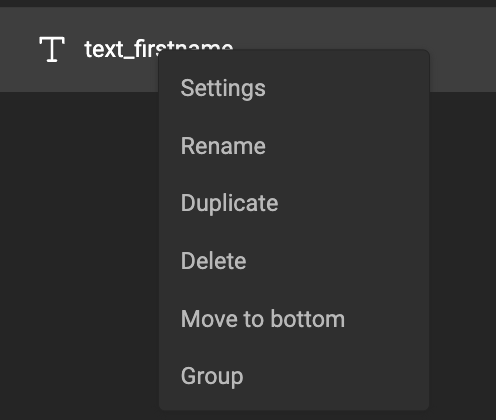

The three-dots menu on text_firstname, offering Settings, Rename, Duplicate, Delete, Move to bottom and Group

Create variables from a linked datasource

If your document already has a linked datasource, you can automatically create template variables based on its field names. This speeds up Smart Template setup by generating variables in one step.

In the Data source panel, choose the option to "Create variables" from the linked datasource. GraFx Studio will create a template variable for each unique field name it finds.

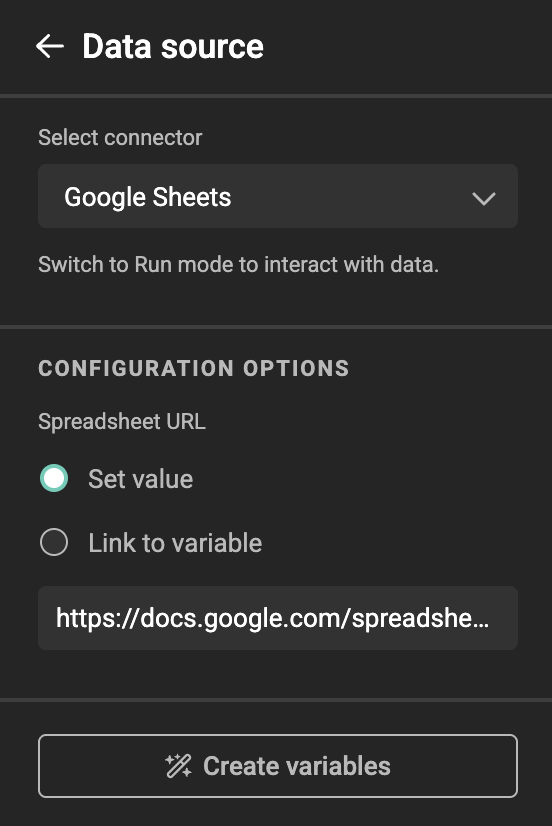

Data source panel with the Google Sheets connector chosen and a Create variables button at the foot

After creation

Review each new variable’s type and settings (Label, Placeholder, Help text). Organize them with Group to keep complex templates manageable.

Duplicate field names

If the datasource contains duplicate field names, variables for those duplicates are not created. A toast message will show the error. Make the field names unique in your datasource and run the action again.

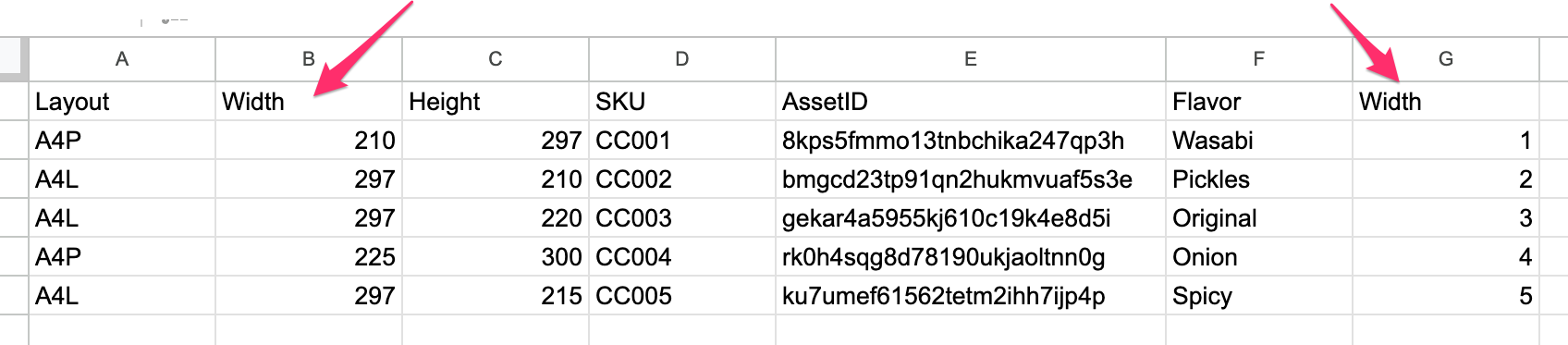

A Google Sheets table with arrows marking columns B and G, both headed Width

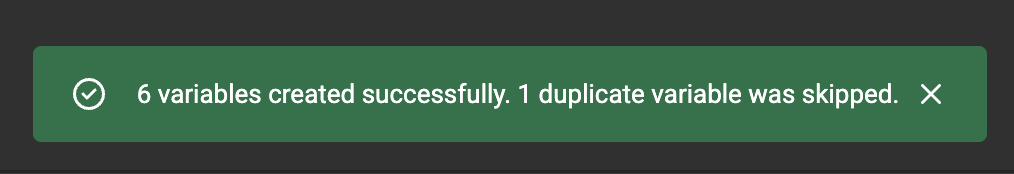

Toast reading 6 variables created successfully, 1 duplicate variable was skipped

Options

Each template variable has a pencil icon, and three dots. The pencil icon will bring up the "Settings" panel.

The three dots will provide you below options:

Settings

Opens the settings panel

Rename

The template variable name goes into inline rename modus. You can also double click/tap on the name.

Duplicate

Creates a copy of the template variable and all its properties. Since the name must be unique, the name is appended with an incrementing number.

Delete

A confirmation dialog is shown before it's deleted.

Move to Top

Will move the template variable to the top of the list

You can also drag the template variable in the list to where you want to position it.

This location does not have any effect on the working of your document. It will only help to guide the end-user to see them in a logical order.

Move to Bottom

Will move the template variable to the bottom of the list

You can also drag it in the list to where you want to position it.

This location does not have any effect on the working of your document. It will only help to guide the end-user to see them in a logical order.

Group

You can group variables in a group or folder. This allows you to stay organised in more complex templates.

Shift-select multiple variables, and group them. After grouping, you can rename the group.

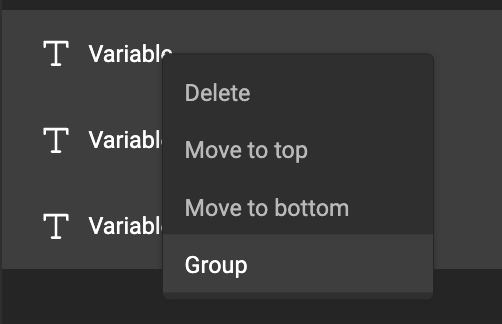

Menu for a multiple selection, with Group highlighted under Delete, Move to top and Move to bottom

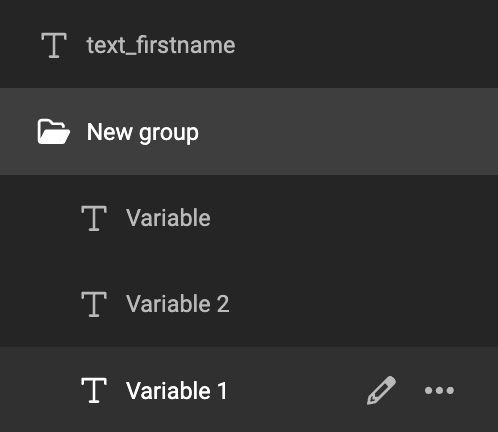

The list after grouping: a folder called New group holding three indented variables

Types

Create a variable. Then, in the properties panel, choose the variable type. Different use cases demand different variable types.

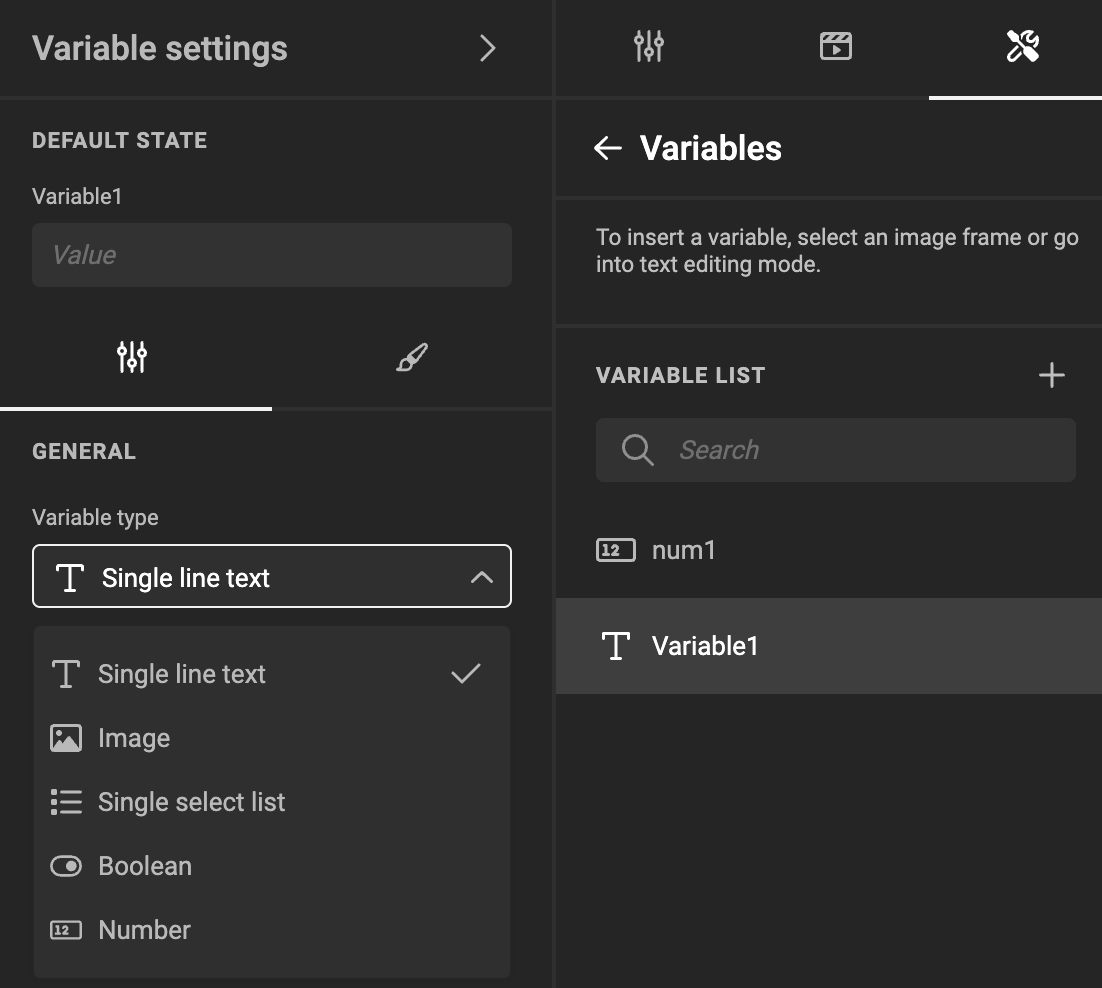

The Variable type dropdown open on Single line text, with Image, Single select list, Boolean and Number below

Single-line Text

A placeholder for text.

All feature videos

See also: Text Direction

Multi-line Text

A placeholder for multi-line text.


A placeholder for a reference to an image in the (GraFx) Media pool, or other sources through Connectors

All feature videos

Single-select list

A placeholder with a predefined list of values.

A potential use case: define a list of colors to choose from.

All feature videos

Boolean

A placeholder that can hold "True" or "False".

All feature videos

Number

A Placeholder to hold a numeric value. Different than a text variable, you can set specific elements related to numbers.

Date

A Placeholder to hold a date value. Different than a text variable, you can set specific elements related to dates.

Data source

A table of records with one row selected. Instead of holding a single value, it lets the end user pick a row — a product, a store, a customer — which components in the template can then read from.

Data comes either from a data connector or is pushed in by an integration. See Data source variables.

Variable settings

Variable name

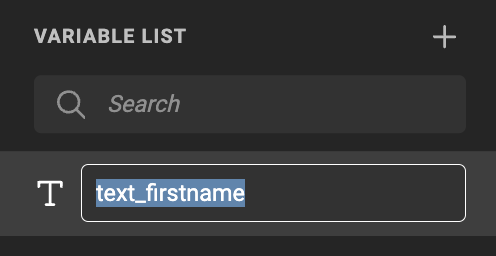

The name text_firstname selected in an inline edit field in the VARIABLE LIST

In the list of variables, you can double click or "Rename" the variable Name.

Variable name vs Display Label

The variable name is the technical name, that will be used for further automation. In the appearance tab you can set the (display) label, that will be shown in the Studio UI interface.

Default state

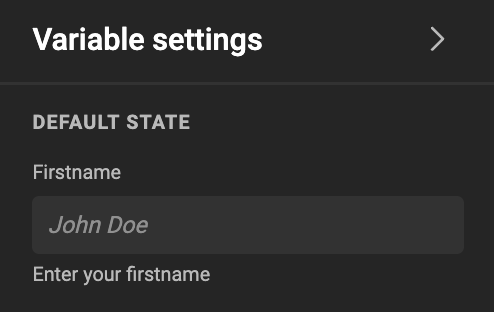

DEFAULT STATE for Firstname, showing the placeholder John Doe and the help text Enter your firstname

The default value your template variable will have.

General properties

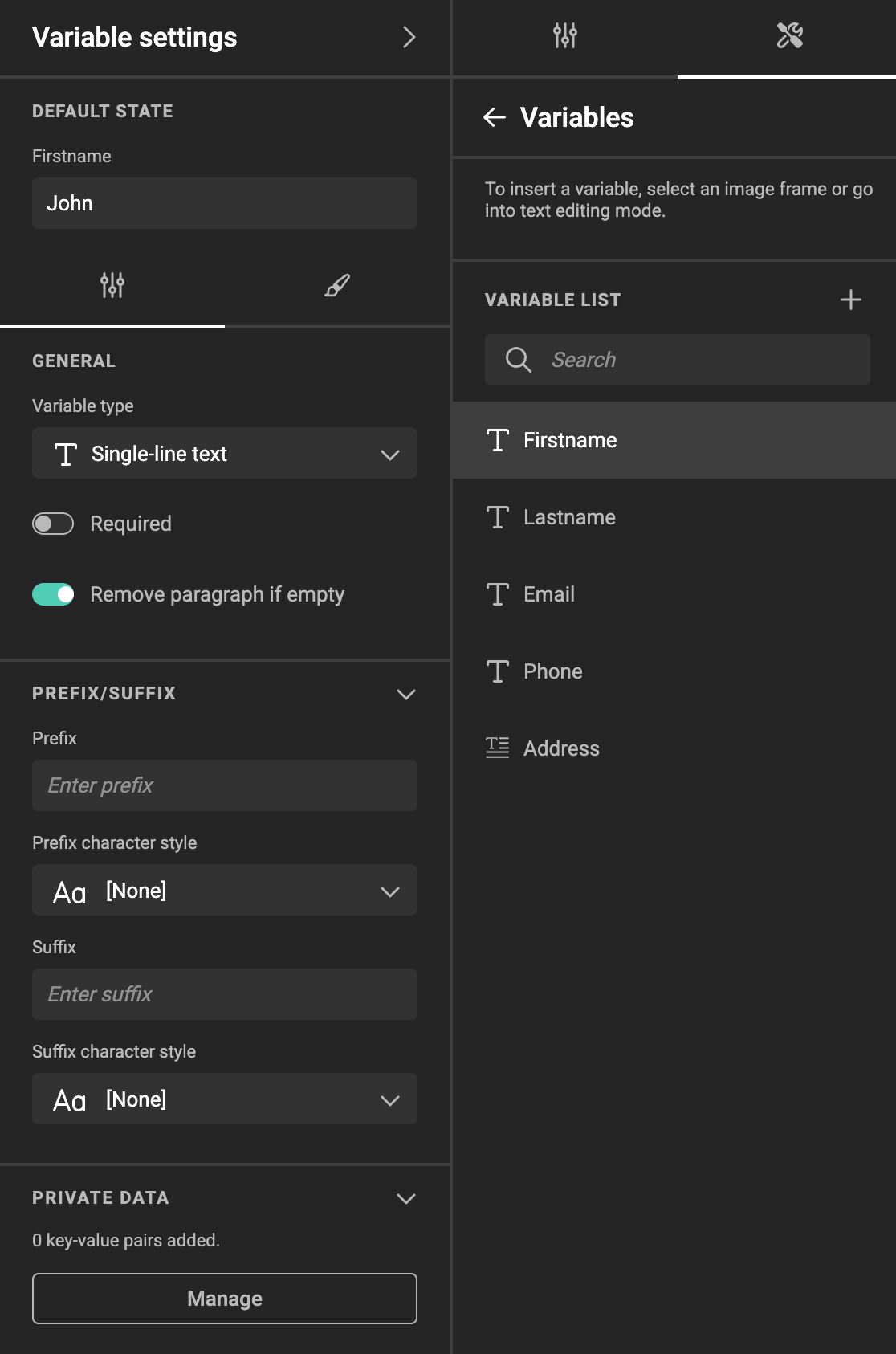

GENERAL settings with Required off and Remove paragraph if empty on, above PREFIX/SUFFIX and PRIVATE DATA

  • Type: See types above
  • Required: Disabled by default
  • Remove paragraph if empty: Disabled by default
    Check to remove the full paragraph this variable is used on.

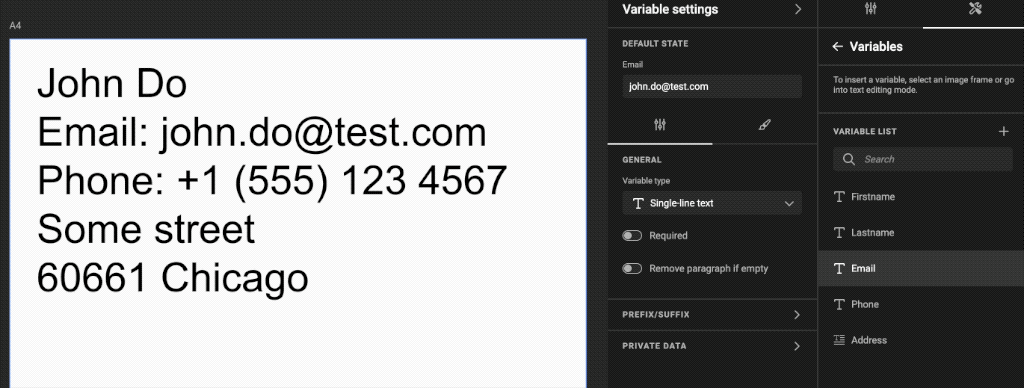

    Available on (Single-line text, Multi-line text, Single-select list, Date) The email line dropping out of an address block on the canvas when the Email variable is emptied
  • Private data
    A set of key-value pairs to assist you with automation.

User Interface

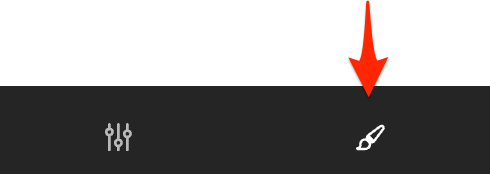

An arrow pointing at the paintbrush tab beside the sliders tab in the settings panel

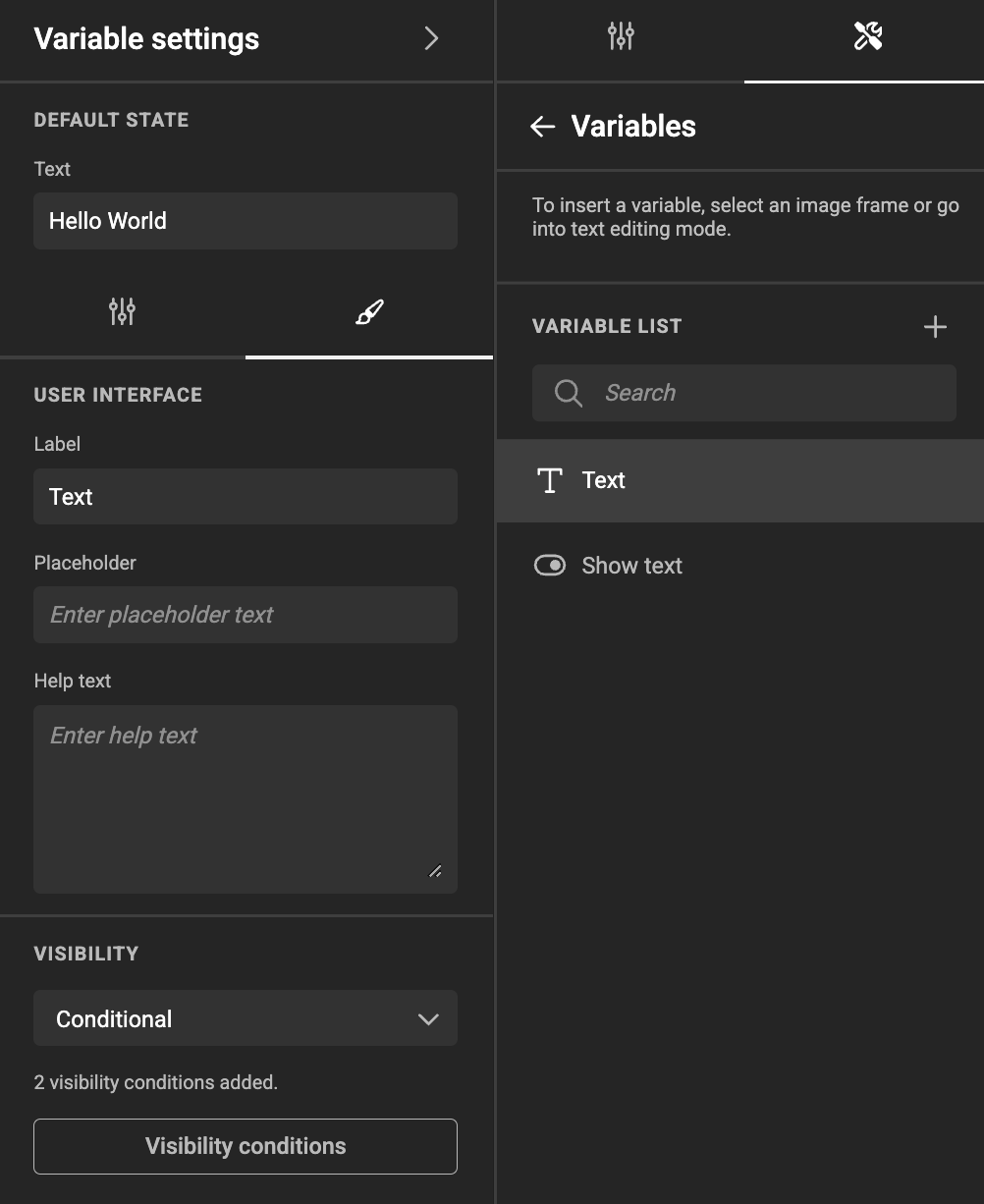

USER INTERFACE tab with empty Placeholder and Help text fields, and VISIBILITY set to Conditional

These settings define how the template variable is presented:

  • Label: Can be empty, must not be unique, by default it has the same value as the name (When the name is changed, the label is updated, unless if the label already has a different value)
  • Placeholder: Default text, to help nudge the end user to fill in something
  • Help text: Text that will appear below the variable to add more info what to do with the variable.

Visibility

Choose how visibility is set

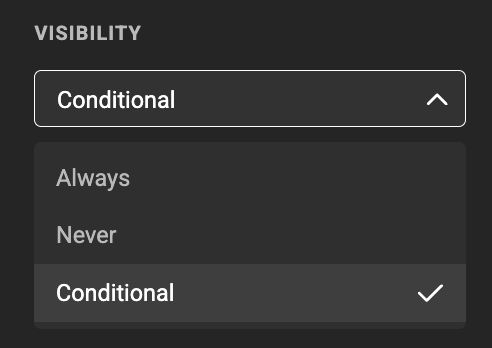

The VISIBILITY dropdown open on Always, Never and Conditional, with Conditional ticked

  • Always (default)
  • Never
  • Conditional

Conditional: See Visibility Conditions
