Layouts

Create the Layout

Click on the plus sign or three dots "Add sub-layout"

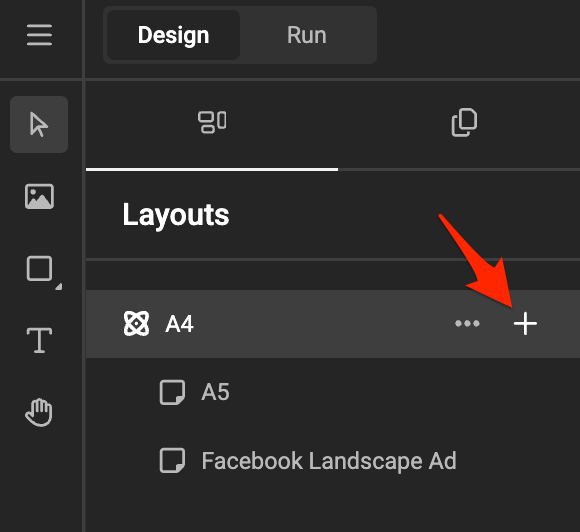

The Layouts panel, pointing at the plus sign on the A4 row above its A5 and Facebook Landscape Ad sub-layouts

A window appears to allow you to choose from a list of Layout Presets.

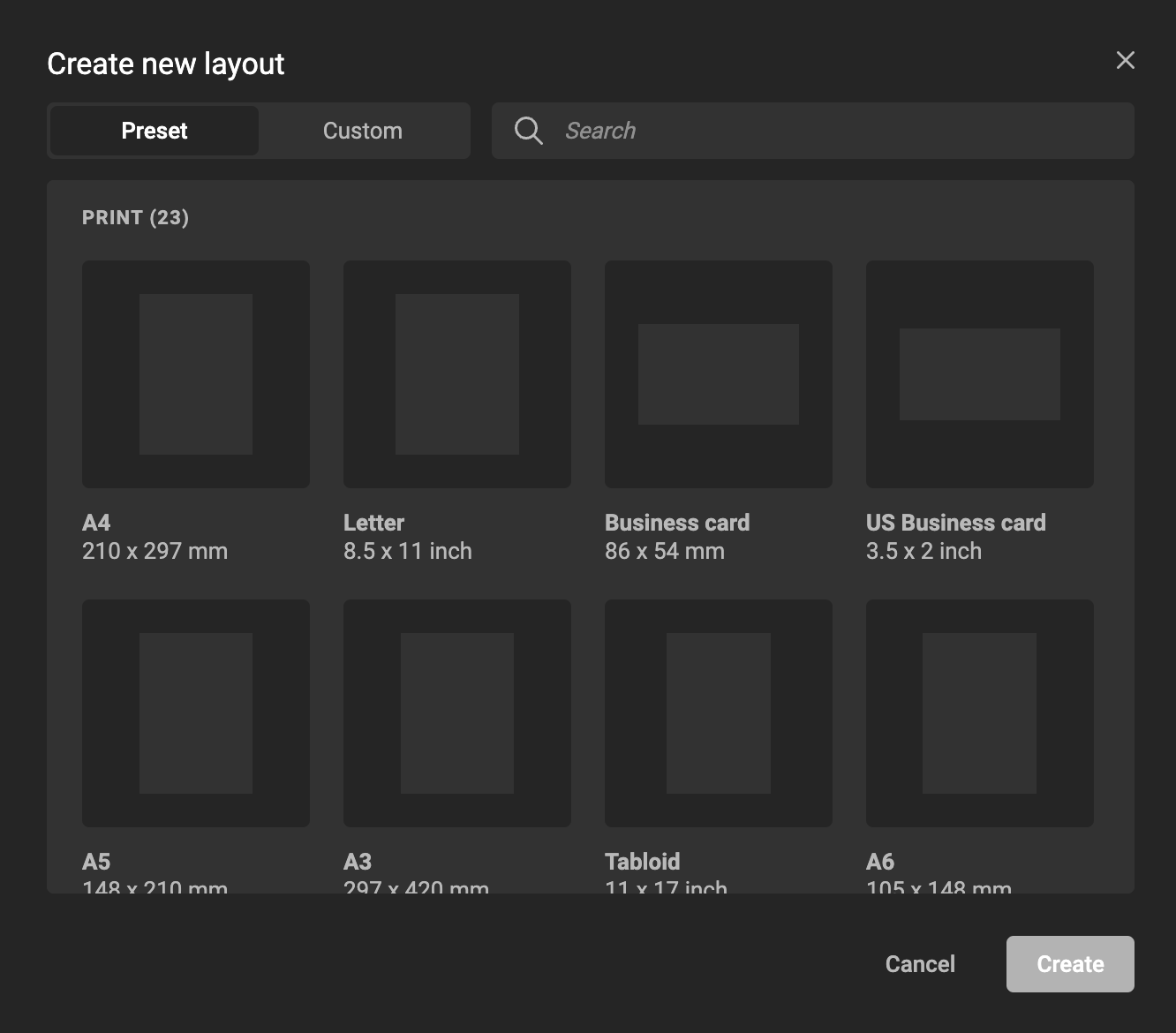

The Create new layout dialog on the Preset tab, showing the Print group of 23 sizes as thumbnail cards

Select 1 or more presets you would like to add to your Layout List.

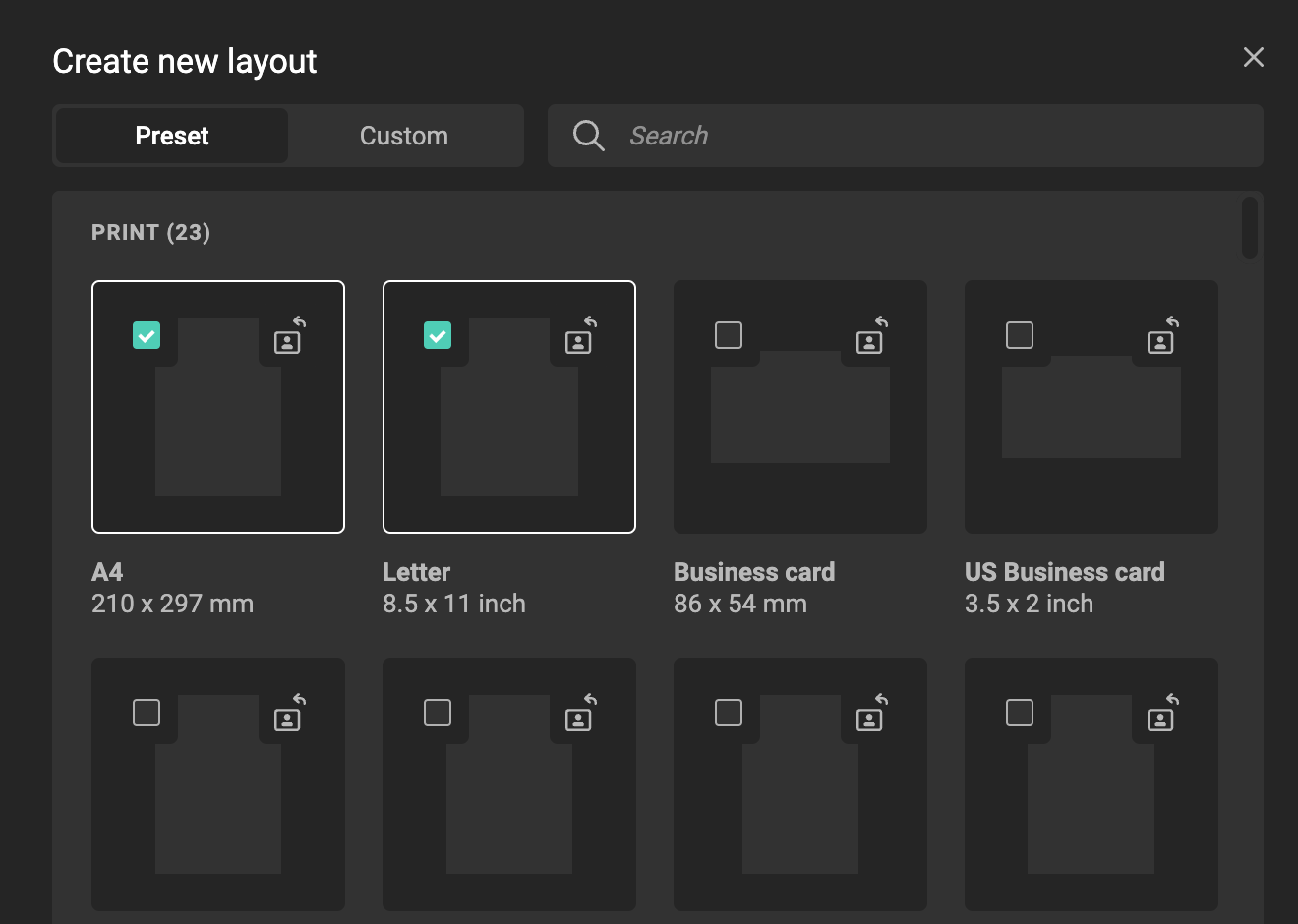

The same preset grid with the A4 and Letter cards ticked and outlined

If your preset is not available in the list, choose "Custom" and define the name, size and intent of your Layout.

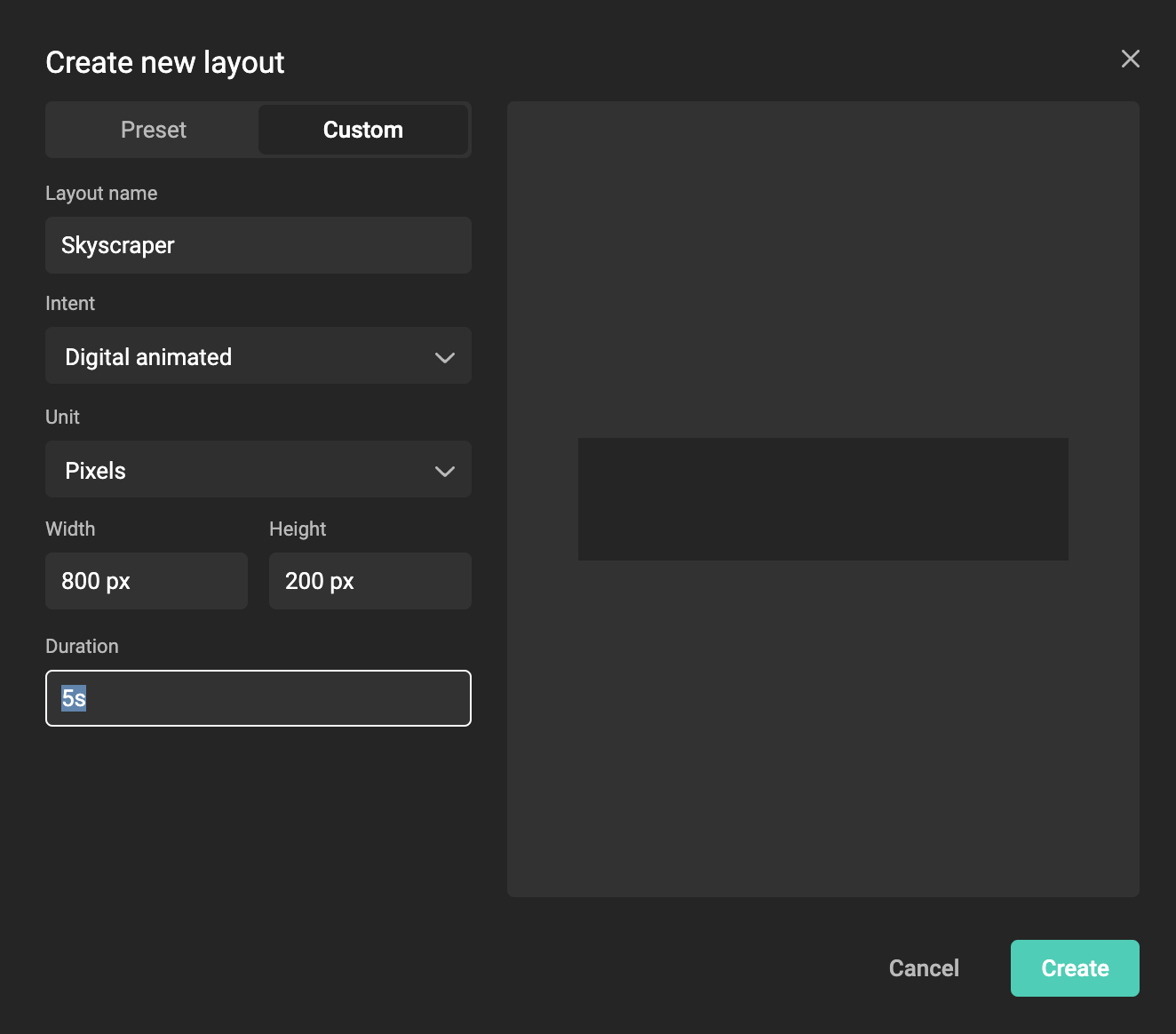

The Custom tab of the dialog, with a Skyscraper layout at 800 by 200 px, Digital animated intent and a 5s duration

Click create!

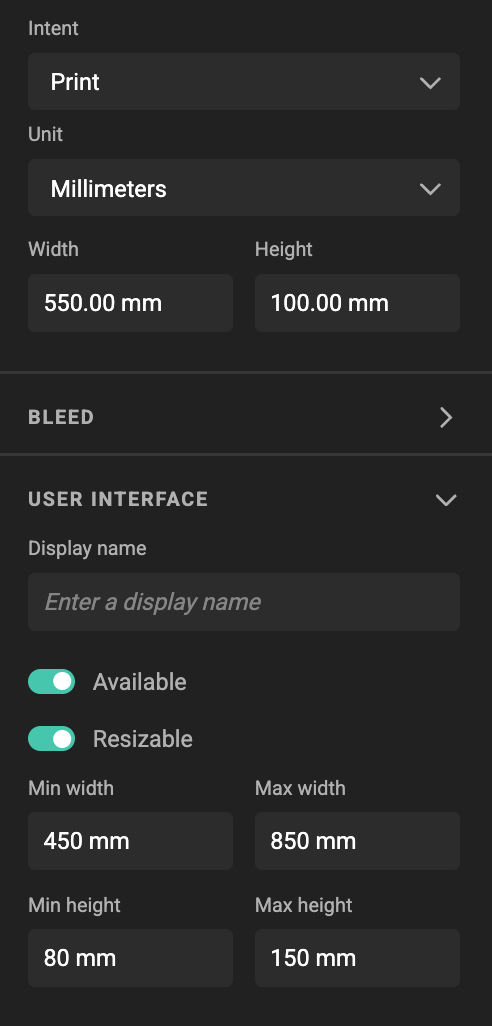

In the properties panel, you'll see all related options you can set.

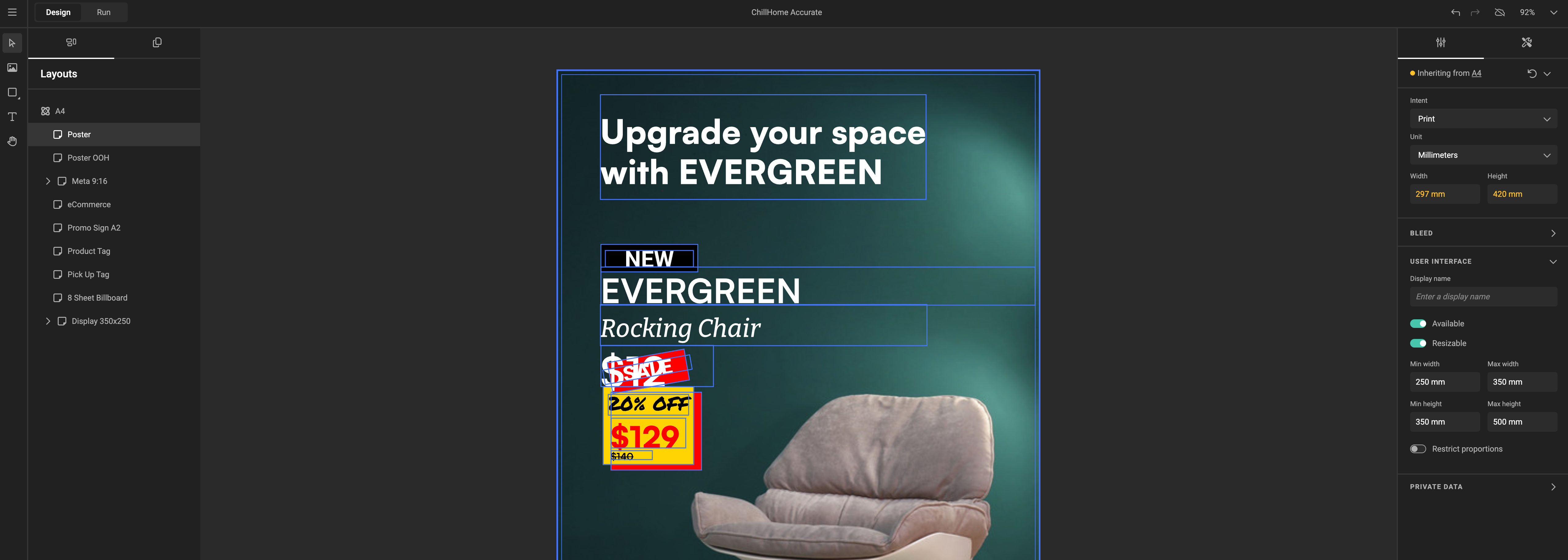

A Poster sub-layout selected, its properties marked "Inheriting from A4" with the overridden width and height in orange

If the values appear colored, it's because they differ from the base values. To learn more, read about the Inheritance model.

See also how to set Layout size constraints.

Private data

A layout can carry Private Data: key-value pairs that stay invisible in GraFx Studio and in the end-user interface, but that a custom integration can read through the Studio SDK. Use it to tell your integration something about the format that GraFx Studio has no field for — the channel the layout is produced for, a placement code, or an identifier from your own campaign system.

Add key-value pairs

  • Select the layout in the Layouts panel, so its properties appear in the properties panel.
  • In the Private data section, click Manage.
  • Click Add key-value pair.
  • In the Key field, enter a custom identifier (e.g. channel).
  • In the Value field, enter the corresponding value (e.g. meta-feed).
  • Add as many pairs as your integration needs.
  • Click Done to save.

The section header shows how many pairs are stored, so you can tell at a glance whether a layout carries private data.

Edit or delete key-value pairs

  • To change a key or a value, click the text in the field and edit it.
  • To remove a pair, click the trash icon next to the entry.
  • Click Done to save.

Warning

Keys are what your integration looks for. Renaming channel to CHANNEL, or deleting a pair, will break any integration that expects the old key — so update the integration along with the template.

Feature Channel

Add Layouts from Presets

Add Custom Layouts

Layout Settings

Go to Youtube to see all feature videos

Layouts in the Studio UI

See also Studio UI

Every Layout created, is available (by default) in Studio UI. You can also check this in Run Mode.

In Studio UI or Run Mode, a dropdown will be available, with all "Available" Layouts.

Layouts are "Available", if you set the property "Available".

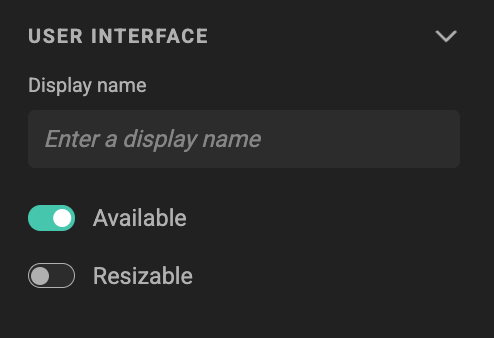

The User interface section of a layout, with Available switched on and Resizable switched off

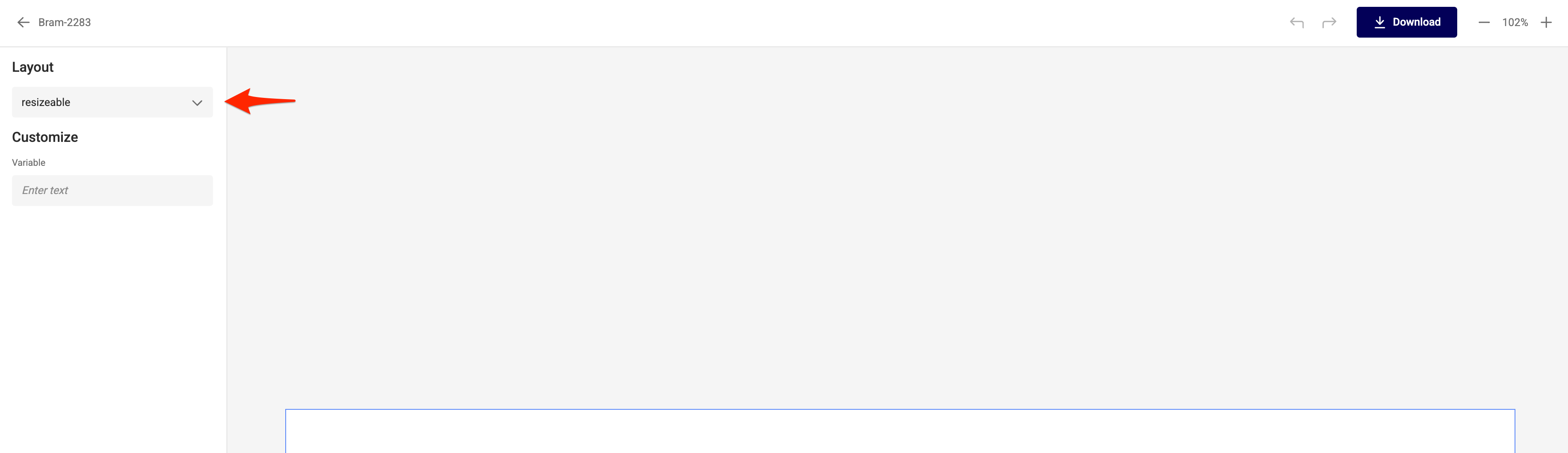

Studio UI for an end user, pointing at the Layout dropdown above the Customize fields

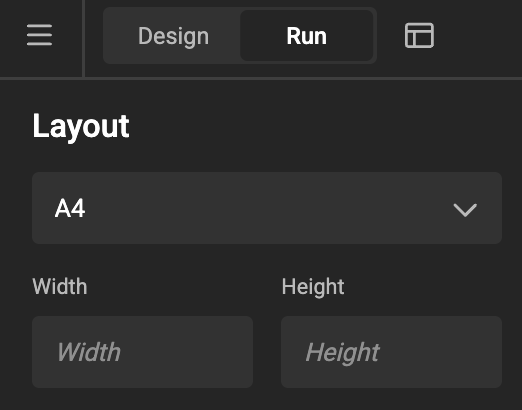

If available, you can also set if a layout is resizable in the End User Interface (Studio UI).

See Layout size constraints on how to set the size and / or aspect ratio limits.

Move the elements on the layout

Select an element in the page, and change the value of a property in the properties panel.

You can also move the elements around on the page.

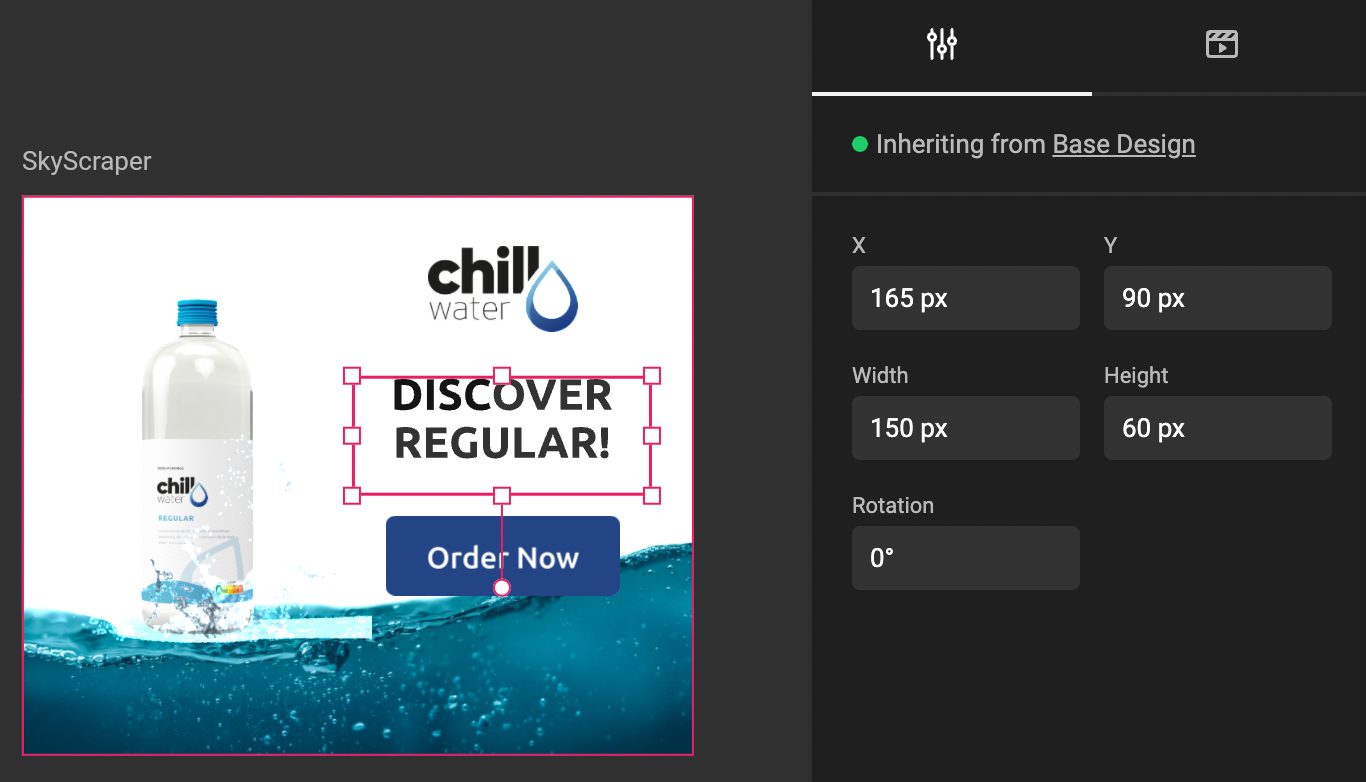

The Discover Regular! text frame selected in the SkyScraper layout, its position still inheriting from the base design

The updated value will be colored, as it's changed compared to the inherited value.

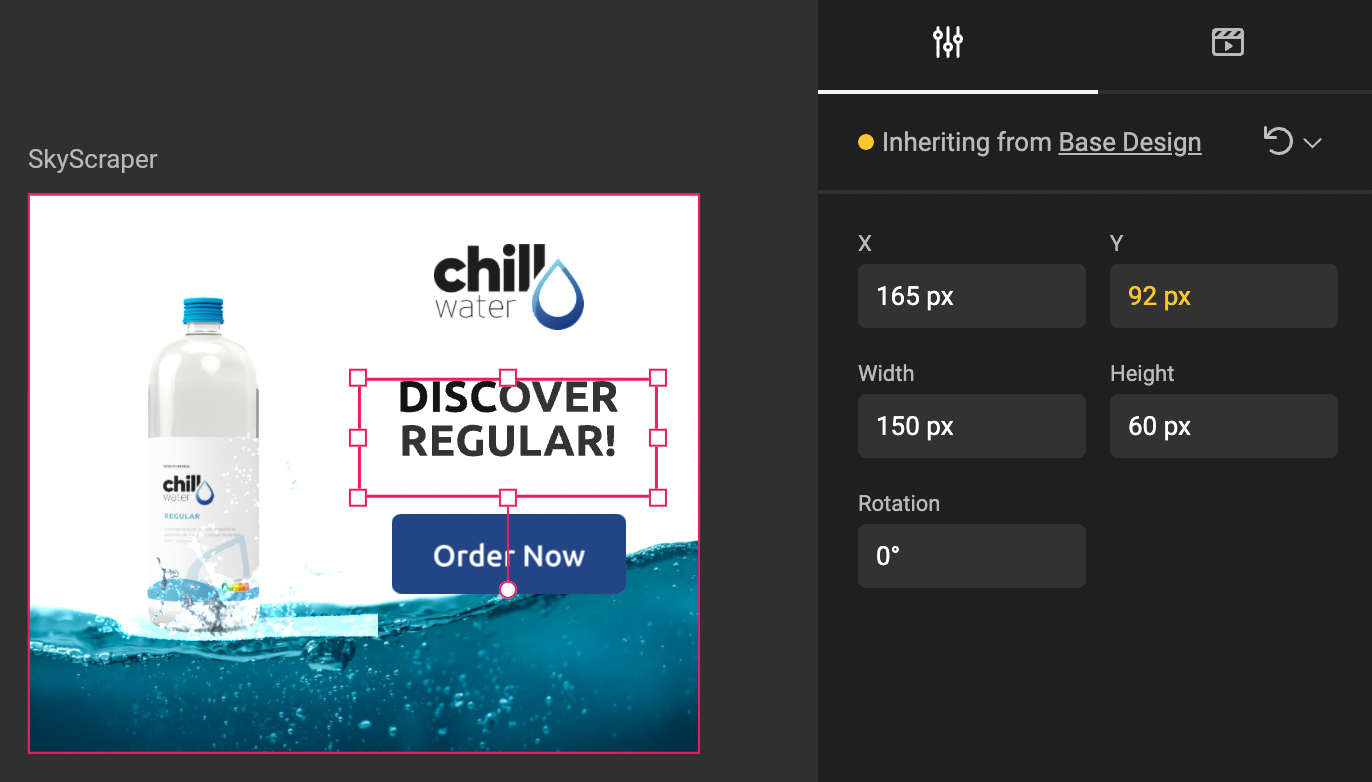

The same frame after nudging it, where Y now reads 92 px in orange because it overrides the inherited value

You can reset the value to the inherited one, by clicking on the left turning arrow, and select the value you want to reset. Only changed values you can reset will appear in this dropdown. Or you can choose to resel all values Reset Overrides

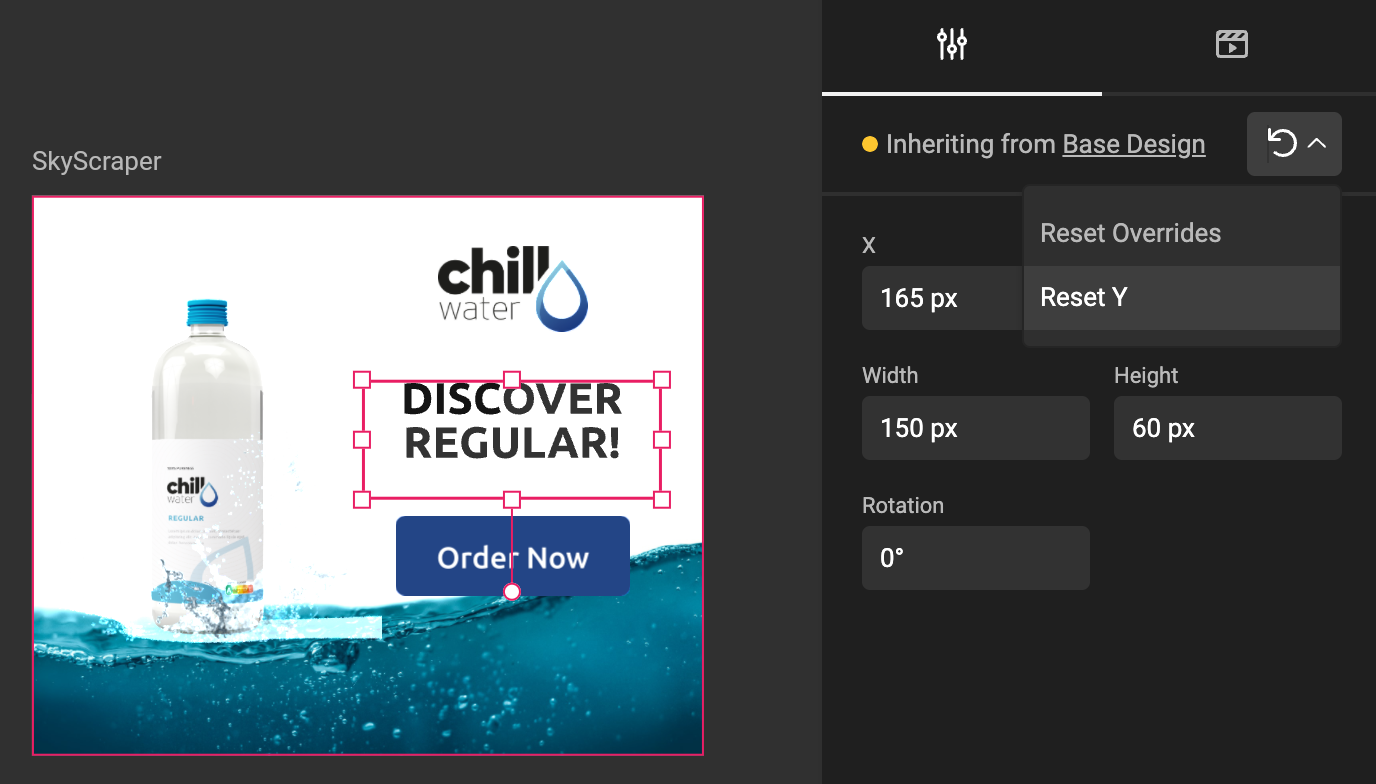

The reset arrow's dropdown open, offering Reset Overrides and Reset Y as the only changed value

Change the animation

If the base layout contains an animation, the animation is also available in the layout.

Enable / Activate the Layers panel via the Bottom quick tools icon.

Select an element for which you want to change the animation.

In the example below, we selected the Text frame "Discover"

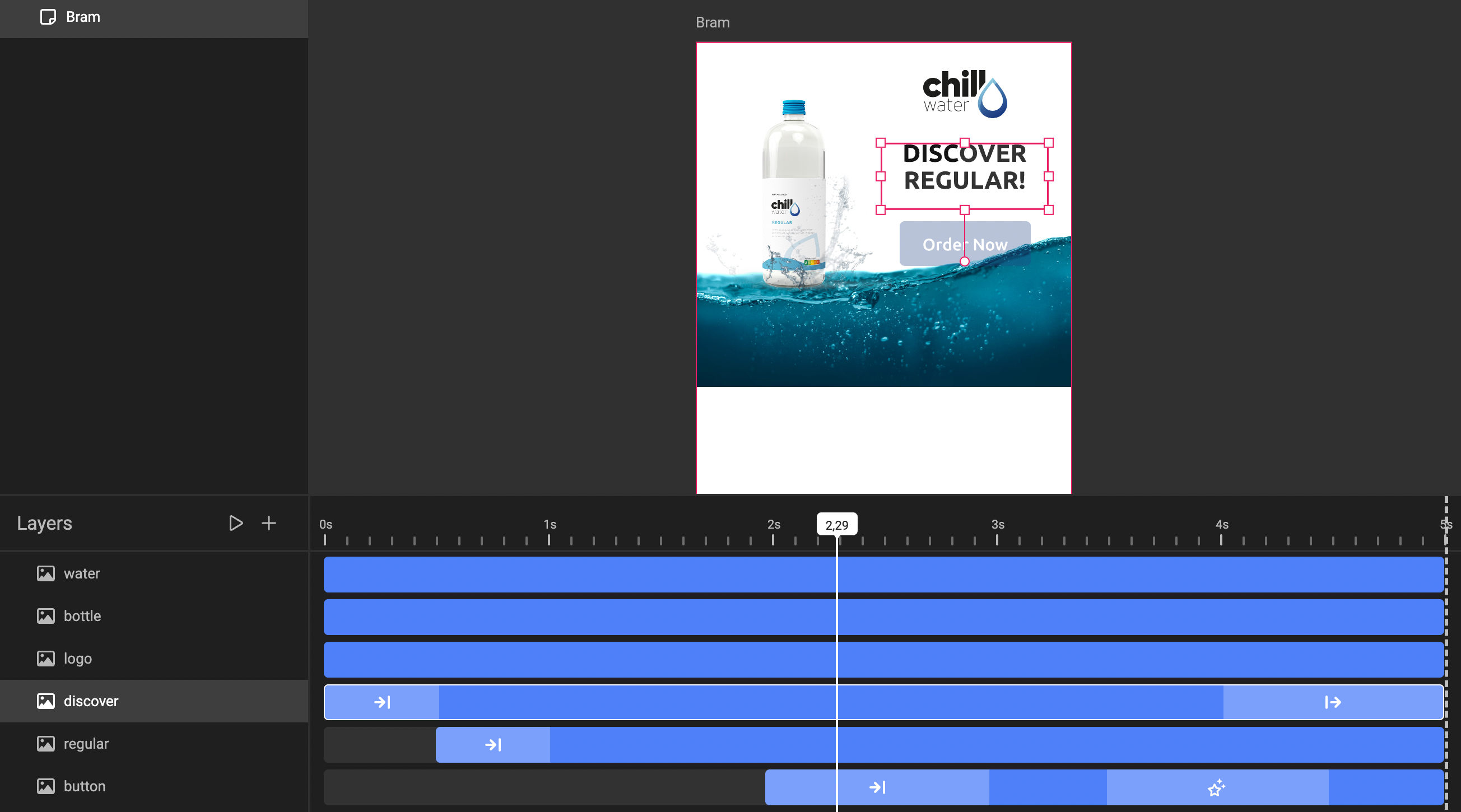

The Layers panel open on the timeline, with the discover layer selected and its animation bars highlighted

In the Animation Properties panel, change the values you want to change for this Layout.

If you don't change values, they will be inherited from the base layout.

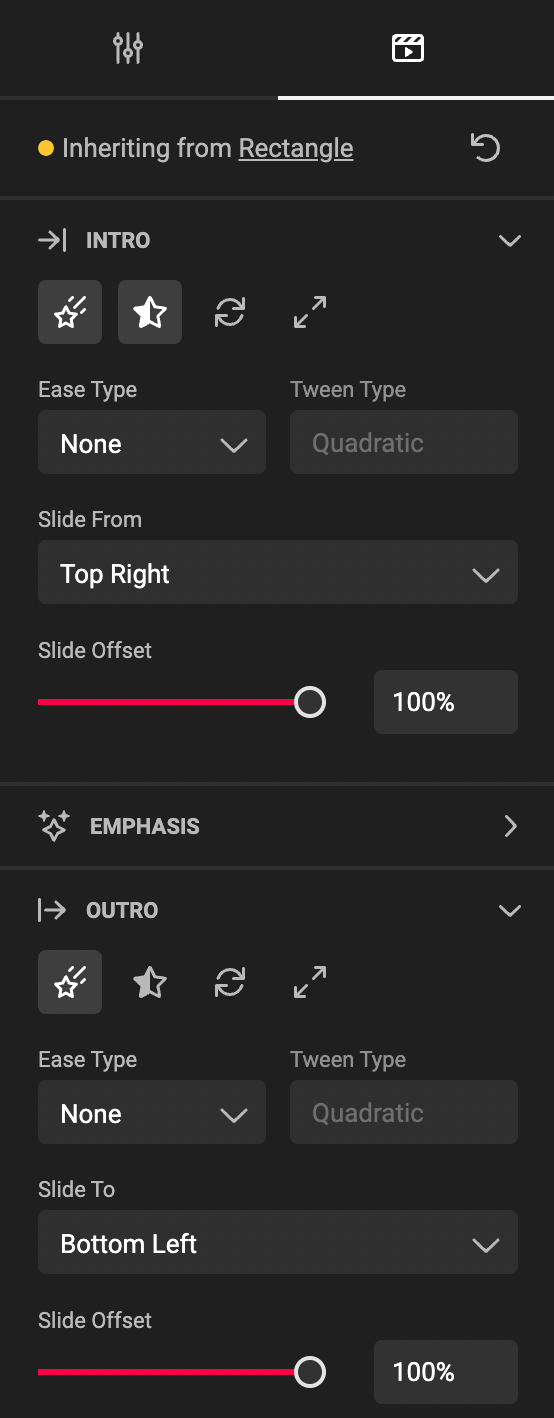

The animation properties panel with Intro sliding from Top Right and Outro sliding to Bottom Left, both at 100%

If you want to disable the specific animation, de-select the specific animation with the respective buttons.

The row of four animation buttons, with only the leftmost one active on a lighter background

The active options are shown with a lighter background.

From left to right:

  • Movement
  • Transparency
  • Rotation
  • Scaling

Reference Available Layout Preset Sizes

Print

ISO (A Series) Sizes

  • A0: 841 x 1188 mm
  • A1: 594 x 841 mm
  • A2: 420 x 594 mm
  • A3: 297 x 420 mm
  • A4: 210 x 297 mm
  • A5: 148 x 210 mm
  • A6: 105 x 148 mm
  • A7: 74 x 105 mm
  • A8: 52 x 74 mm

B Sizes

  • B5: 176 x 250 mm

Other Standard Paper Sizes

  • Letter: 8.5 × 11 in
  • Legal: 8.5 × 14 in
  • Government Letter: 8 × 10.5 in
  • Government Legal: 8.5 × 13 in
  • Executive: 7.25 × 10.5 in
  • Tabloid: 11 × 17 in
  • Ledger: 17 × 11 in
  • Half Letter: 5.5 × 8.5 in
  • Statement: 5.5 × 8.5 in
  • Junior Legal: 5 × 8 in

Cards and Postcards

  • Business Card: 86 x 54 mm
  • US Business Card: 3.5 × 2 in
  • Postcard: 6 × 4 in

Digital: Social media

Facebook

  • Facebook Square Ad: 1080 x 1080 px
  • Facebook Landscape Ad: 1200 x 628 px
  • Facebook Carousel Ad: 1200 x 628 px
  • Facebook Click-to-Messenger Ad: 1080 x 1920 px
  • Facebook App Ad: 810 x 450 px
  • Facebook Video Ad: 1920 x 1080 px

Instagram

  • Instagram Square Ad: 1080 x 1080 px
  • Instagram Portrait Ad: 1080 x 1350 px
  • Instagram Story Ad: 1080 x 1920 px

X (formerly Twitter)

  • X Ad: 1600 x 900 px
  • X Landscape Ad: 800 x 450 px
  • X Carousel Ad: 1600 x 900 px
  • X Image Ad: 800 x 800 px
  • X Video Ad: 1920 x 1080 px

LinkedIn

  • LinkedIn Square Ad: 1200 x 1200 px
  • LinkedIn Portrait Ad: 1080 x 1350 px
  • LinkedIn Vertical Ad: 1080 x 1920 px
  • LinkedIn Landscape Ad: 1200 x 628 px
  • LinkedIn Carousel Ad: 1080 x 1080 px

YouTube

  • YouTube Display Ad: 300 x 60 px
  • YouTube Video Ad: 1920 x 1080 px

Pinterest

  • Pinterest Square Ad: 1000 x 1000 px
  • Pinterest Portrait Ad: 1000 x 1500 px
  • Pinterest Vertical Ad: 1080 x 1920 px
  • Pinterest Carousel Ad: 1000 x 1500 px

TikTok

  • TikTok Square Ad: 1080 x 1080 px
  • TikTok Video Ad: 1080 x 1920 px

Snapchat

  • Snapchat Vertical Ad: 1080 x 1920 px
  • Snapchat Collection Ad: 160 x 160 px

Digital: Display Network sizes

Mobile Ads

  • Mobile Banner: 300 x 50 px
  • Mobile Leaderboard: 320 x 50 px
  • Large Mobile: 320 x 100 px
  • Mobile Billboard: 540 x 150 px

Square and Rectangle Ads

  • Small Square: 200 x 200 px
  • Square: 250 x 250 px
  • Small Rectangle: 180 x 150 px
  • Medium Rectangle: 300 x 250 px
  • Large Rectangle: 336 x 280 px

Vertical and Skyscraper Ads

  • Vertical Banner: 120 x 240 px
  • Skyscraper: 120 x 600 px
  • Wide Skyscraper: 160 x 600 px
  • Half Page: 300 x 600 px
  • Portrait: 300 x 1050 px

Banner Ads

  • Half Banner: 234 x 60 px
  • Banner: 468 x 60 px
  • Leaderboard: 728 x 90 px
  • Large Leaderboard: 970 x 90 px
  • Top Banner: 930 x 180 px

Large Format Ads

  • Triple Widescreen: 250 x 360 px
  • Billboard: 970 x 250 px
  • Netboard: 580 x 400 px
  • Panorama: 980 x 120 px

Splash Ads

  • Small Splash: 500 x 400 px
  • Medium Splash: 640 x 480 px

Digital: DOOH

“Digital Out-of-Home,” refers to digital advertising displayed on screens in public spaces, unlike traditional static billboards or posters.

  • HD: 1280 x 720 px
  • Full HD: 1920 x 1080 px
  • 2K: 2560 x 1440 px
  • 4K: 3840 x 2160 px
