Multi-line text Variables

Create a Multi-line text Variable

Under the Automate icon, click Variables, and add a variable with the "+" sign.

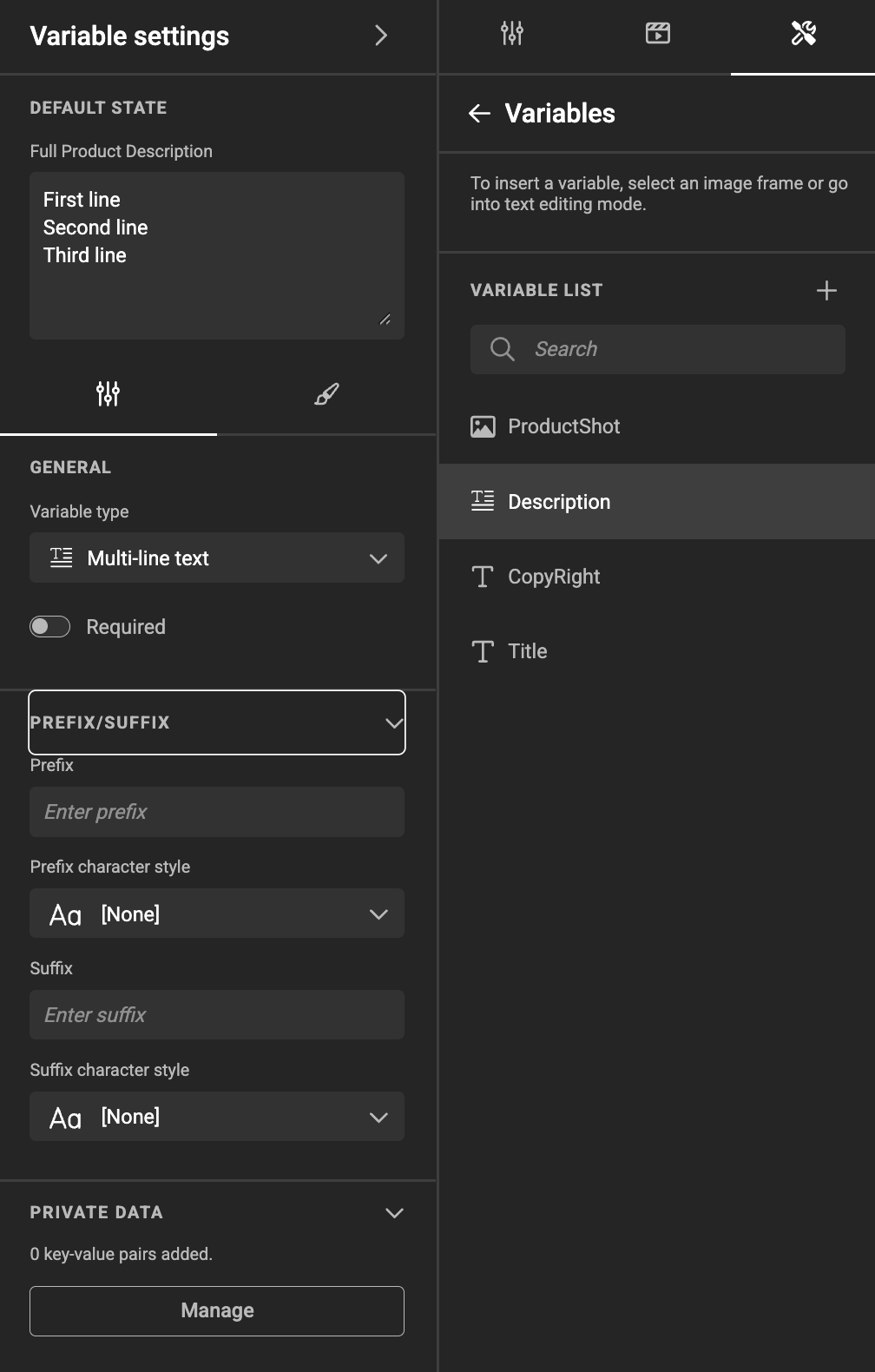

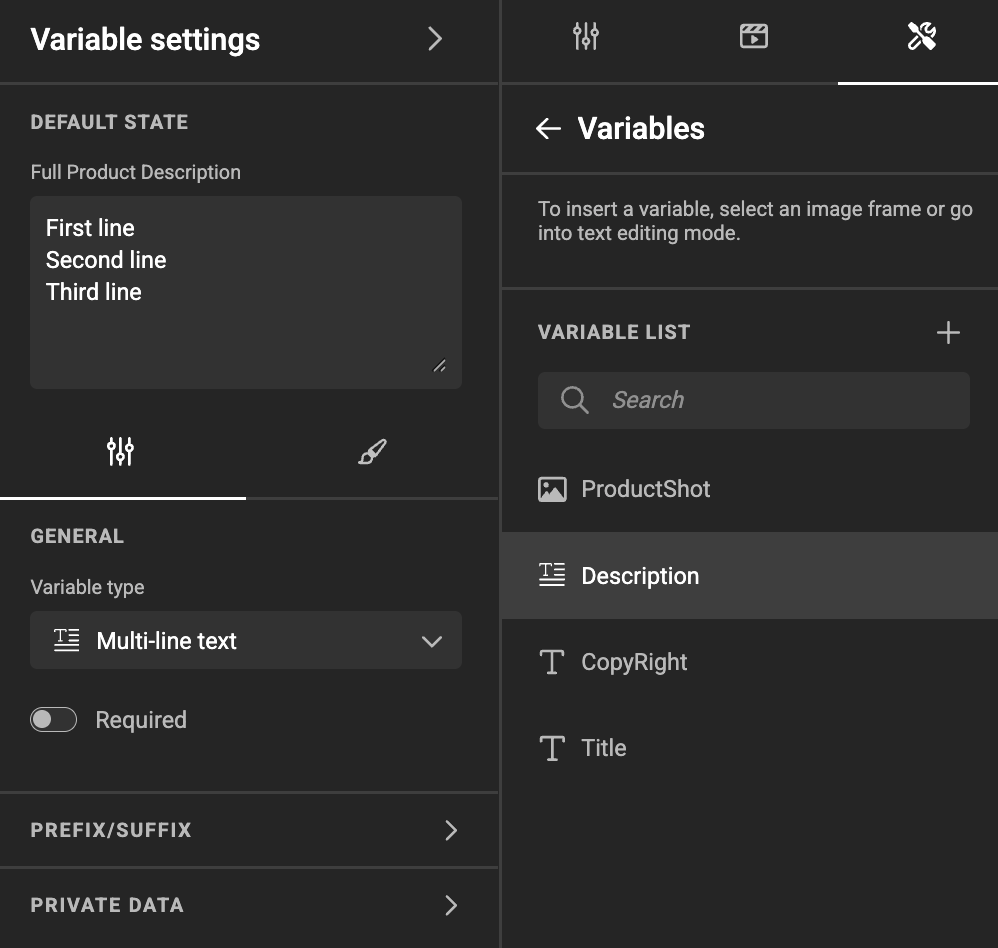

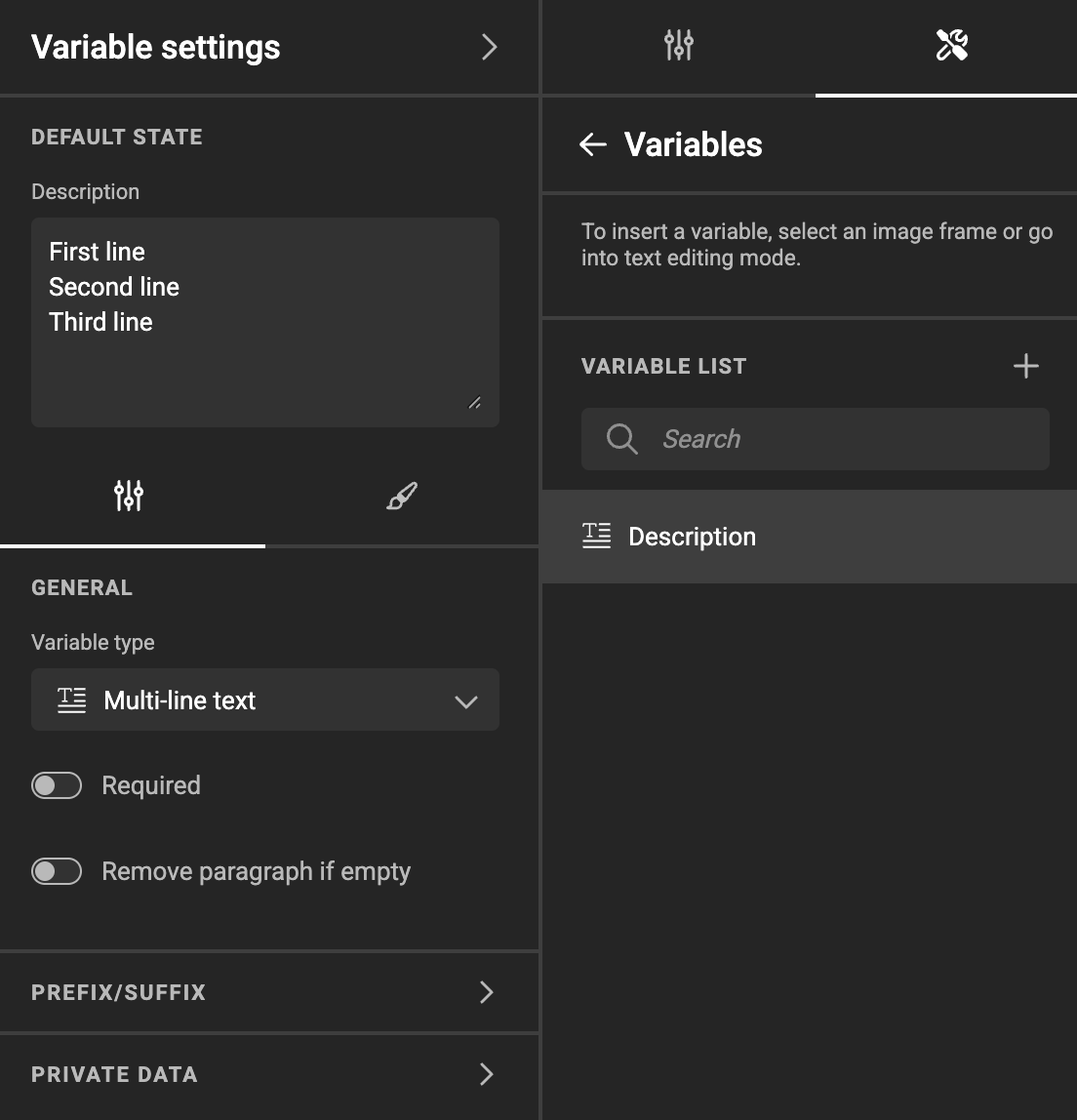

screenshot-full

Choose "Multi-line text" as the type.

Multi-line text variables allow entering text with multiple lines or paragraphs, unlike single-line text variables which restrict content to a single line.

Set the Variable Name

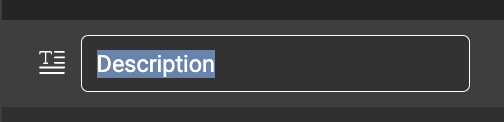

Double-click the name, or choose "Rename" under the "..." menu.

screenshot

Set General Properties

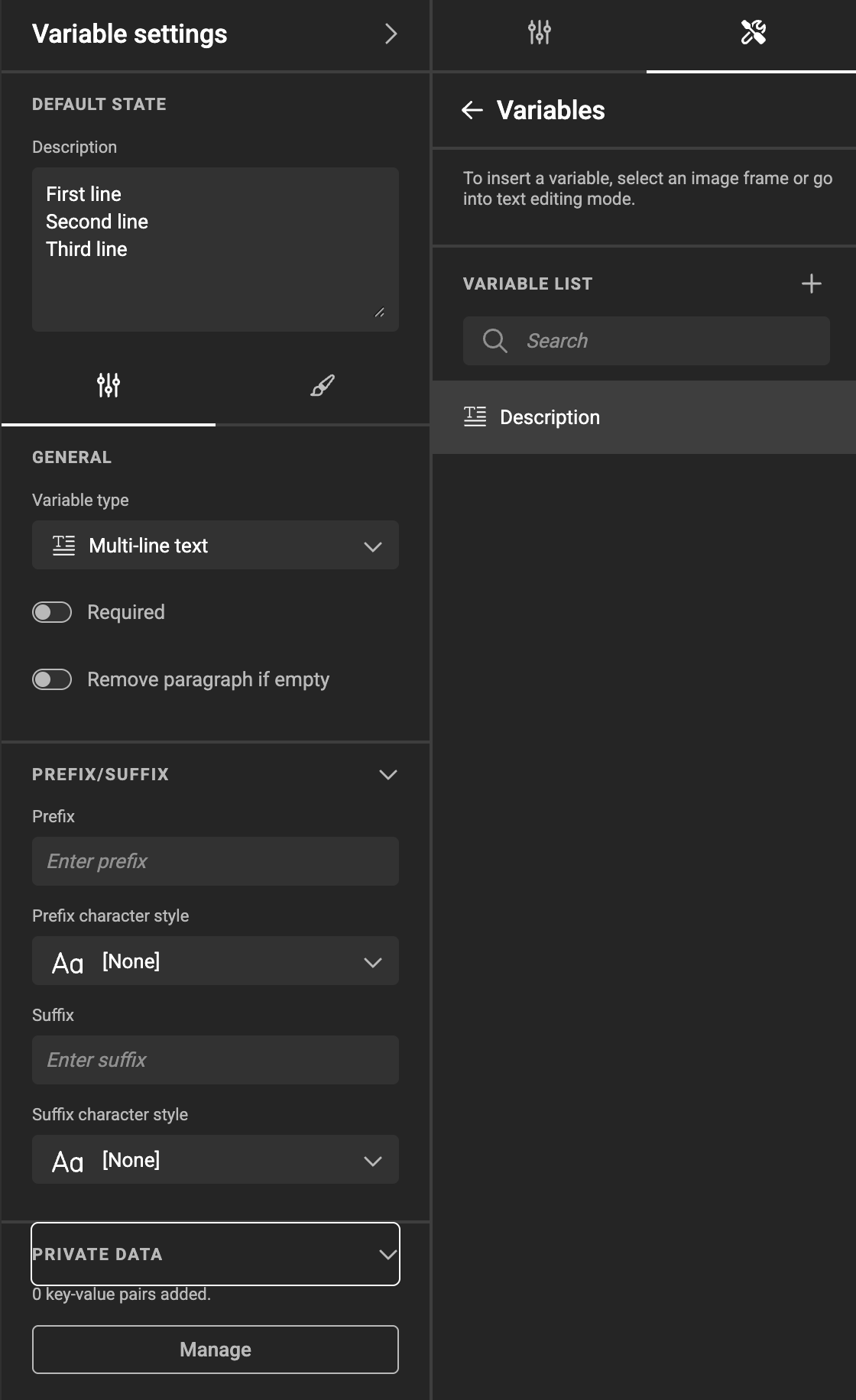

screenshot-full

  • You can switch between single-line and multi-line text variable types at any time.
  • When switching types, the value of the variable will be cleared.
  • Prefix and suffix settings are also available for multi-line text variables.

Input and Formatting Behavior

  • The input field is a resizable text area.
  • Enter creates a new paragraph (hard line break).
  • Shift + Enter inserts a soft line break (new line, no new paragraph).
  • Line breaks are only allowed in multi-line text variables, single-line text variables with line breaks are invalid.

Unicode

The following characters are supported for external input (e.g., copy/paste or data sources):
U+2028, \n, \r\n → soft line break
U+2029, \n\n, \r\n\r\n → hard line break

Usage

  • Multi-line text variables can be inserted into text frames
  • They are compatible with:
    • Barcodes (e.g., QR codes, Vcard)
    • Metadata mapping via media connectors
    • Data sources

Maximum Length

You can cap the total number of characters a multi-line text variable accepts. This is useful for keeping descriptions, addresses, or any layout-critical copy within bounds — both at design time and when end users fill in templates.

Set the limit in the variable's settings panel. When the limit is left empty, no cap is enforced.

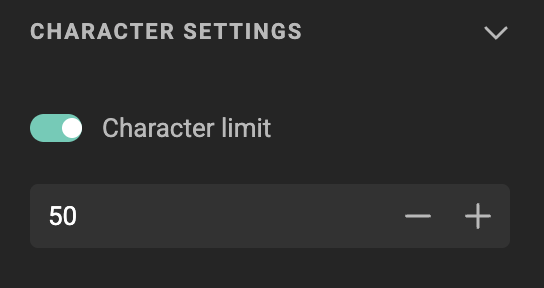

Maximum length setting in the variable settings

The limit is enforced everywhere the variable can be edited:

  • Template Designer (Studio Workspace) and Studio UI both show a counter on the input indicating how many characters remain.
  • Once the limit is reached, no further input is accepted.
  • Pasting text longer than the limit truncates the pasted text to fit.

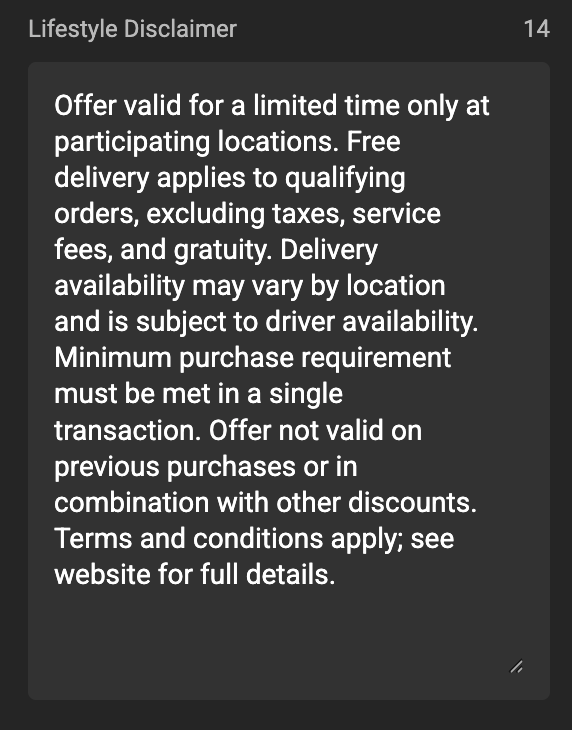

Remaining-characters counter on the input

Line-break characters (soft and hard) count towards the limit, the same way visible characters do. The same limit is applied when the value comes in from a data source, ensuring consistent enforcement across manual and automated workflows.

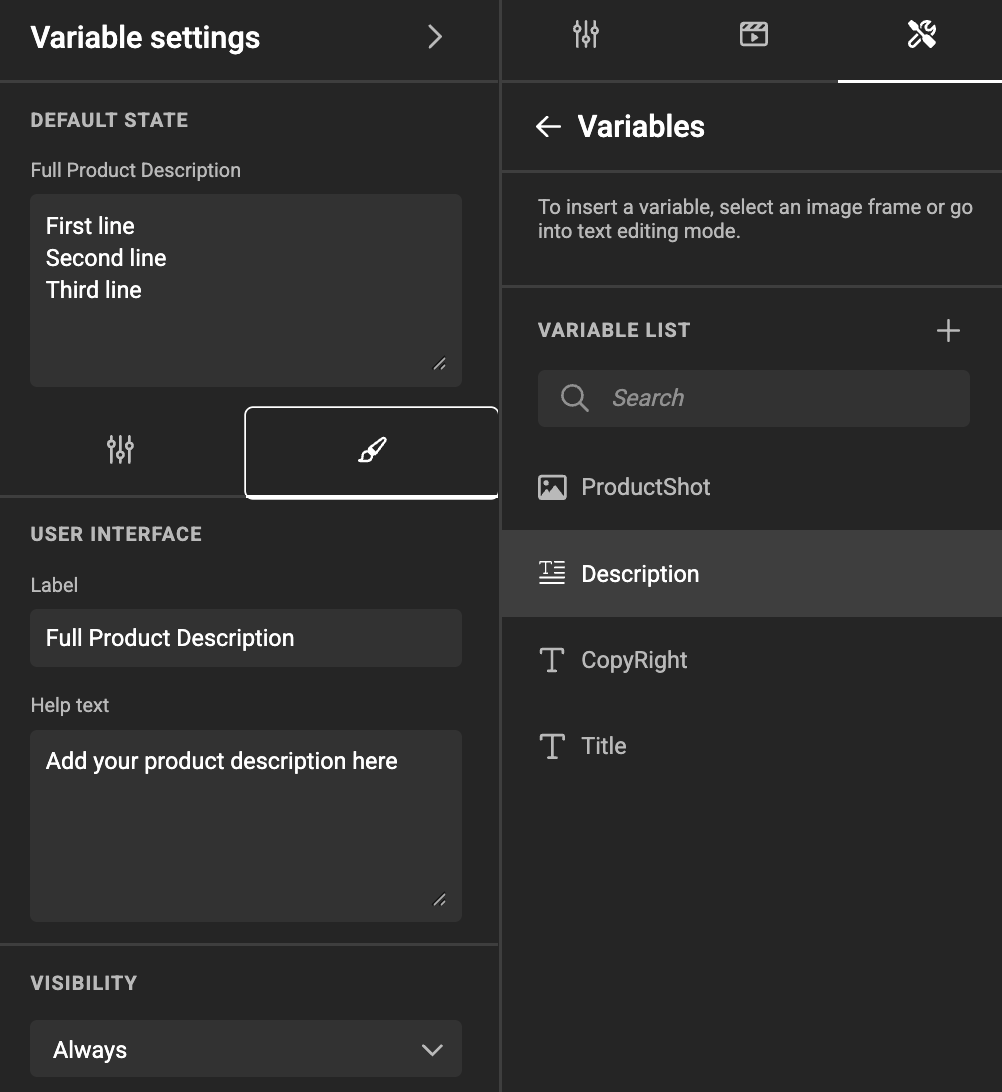

User Interface

screenshot-full

See User Interface and Visibility Conditions
