How to Use Google Sheets Data

In the example below, we'll use a publicly available read-only Google sheet.

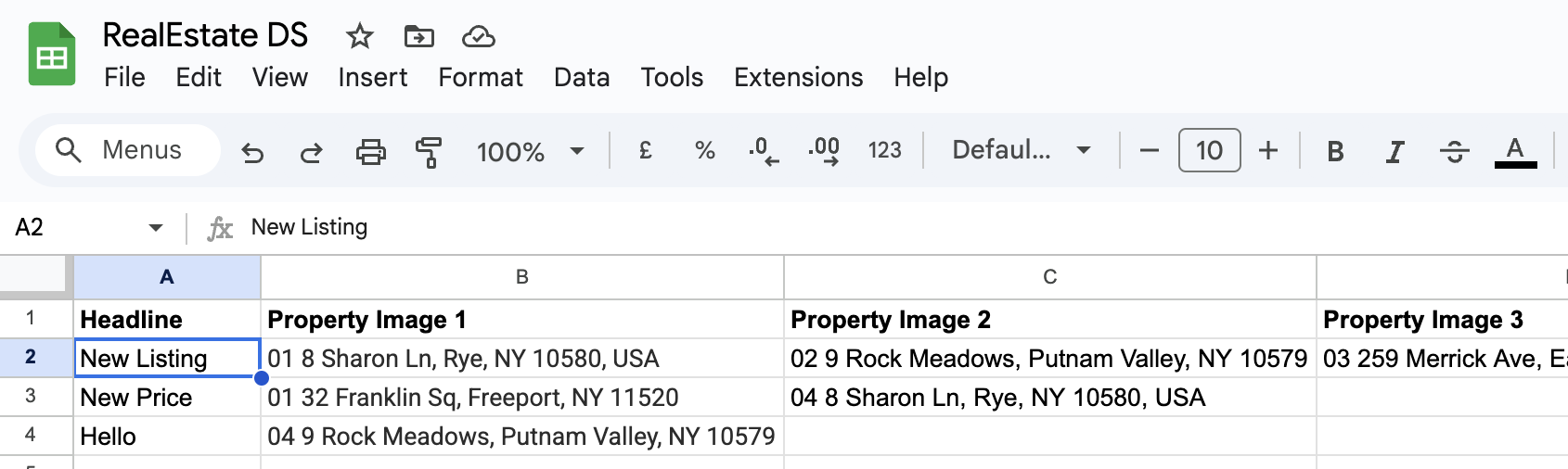

The example Google Sheet "RealEstate DS", with Headline and Property Image columns and three data rows

Create Variables in GraFx Studio

  • In your template, create variables corresponding to the column names in Google Sheets.
  • As long as the names match and a data source is connected, the values will be populated automatically.

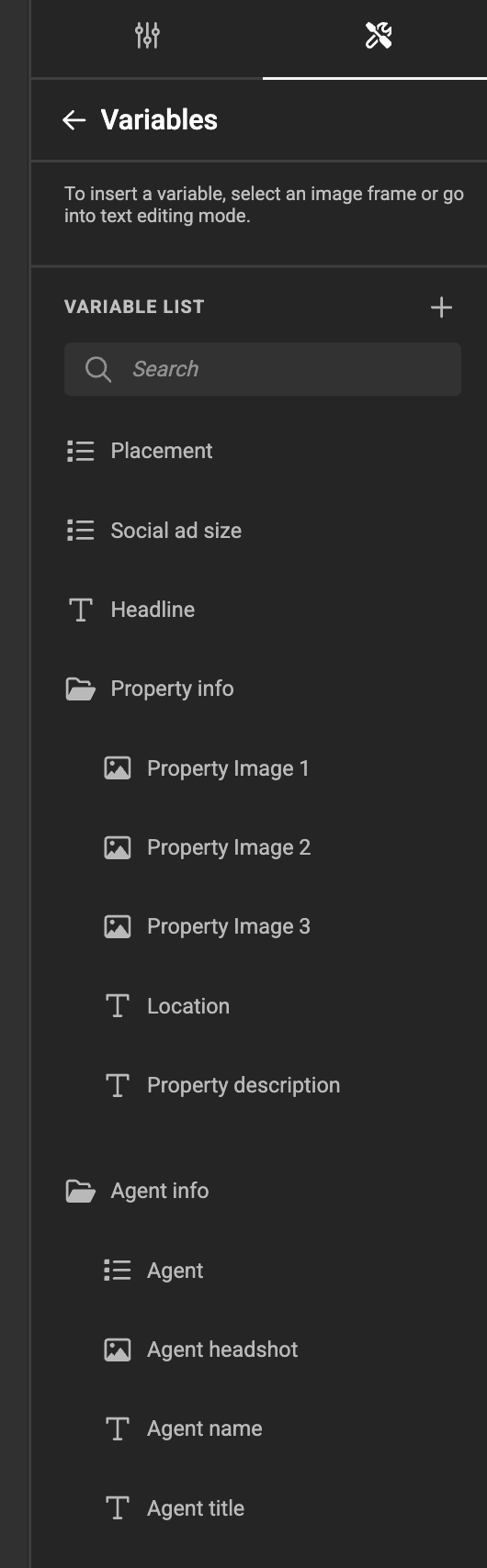

The Variables panel, with Headline plus the Property info and Agent info groups matching the sheet columns

  • Select the Connector Instance (for the right Authentication method)

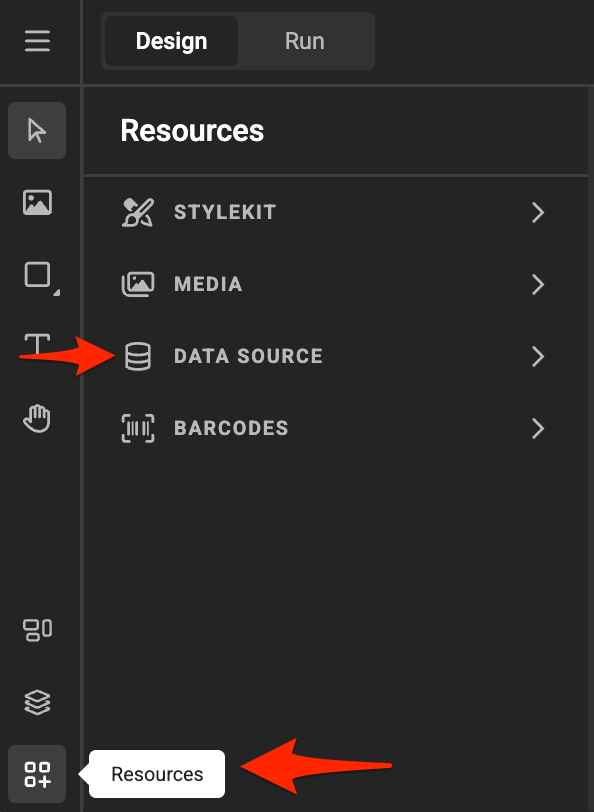

The Resources panel opened from the bottom quick tools, pointing at the Data source entry

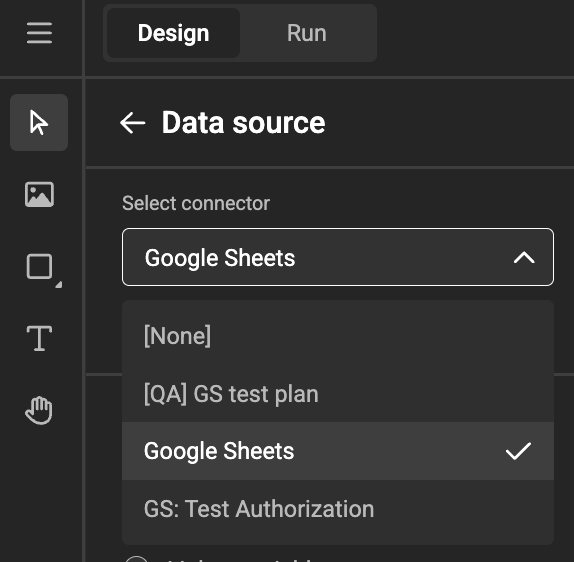

The Select connector dropdown open, with the Google Sheets connector instance ticked

  • Copy the link of the public document.
  • Paste it into the data source field.

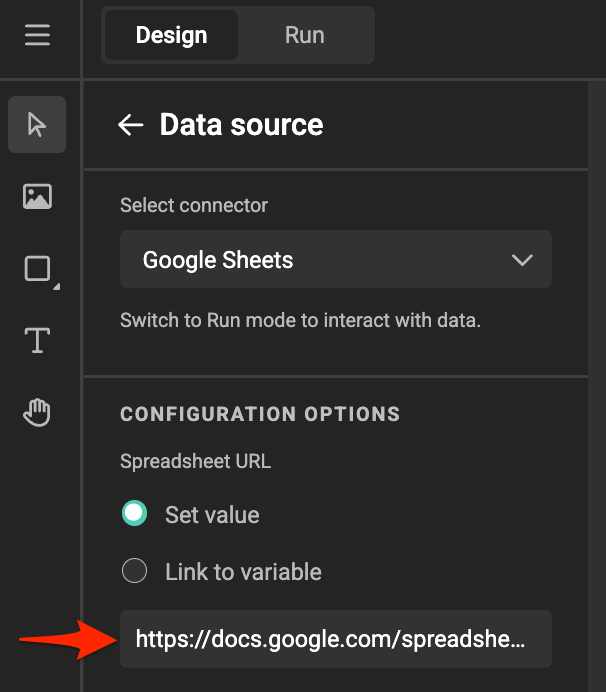

Configuration options for the data source, with the spreadsheet URL pasted under Set value

Preview in Run Mode or Studio UI

  • In Run mode or the Studio UI, you can browse records to preview how content changes.

Run Mode (in Studio Workspace)

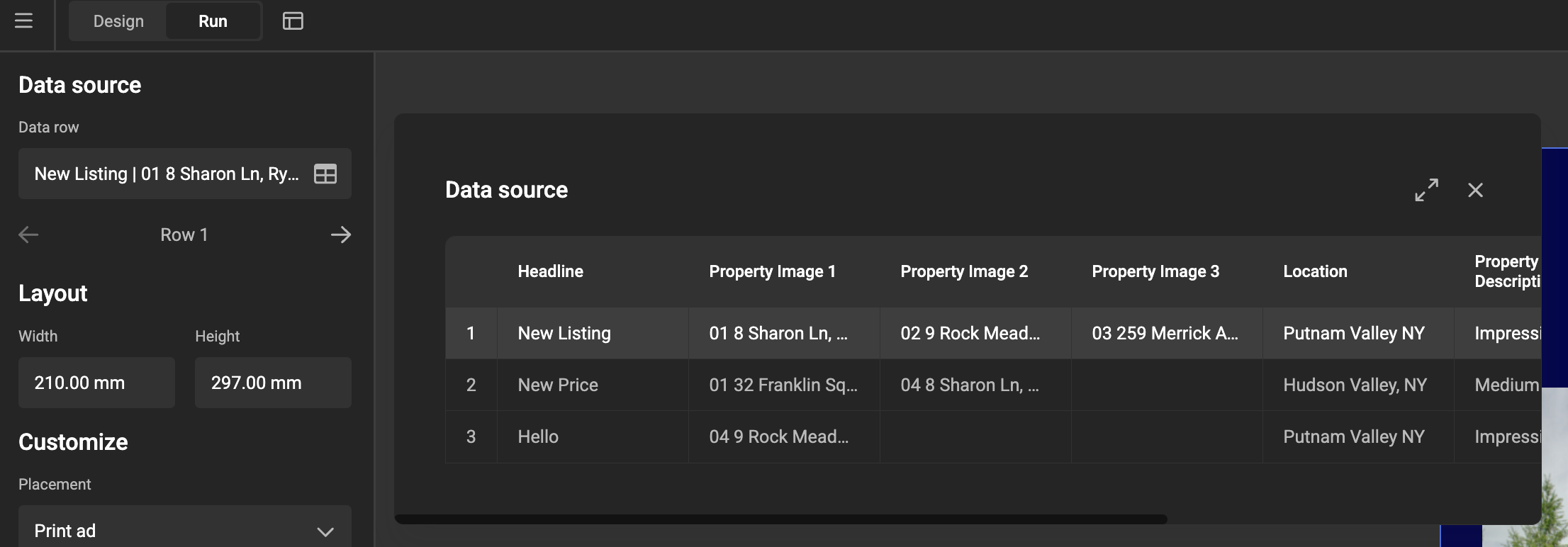

Run mode in the dark Studio workspace, with the Data row picker on Row 1 and the record table open

Studio UI

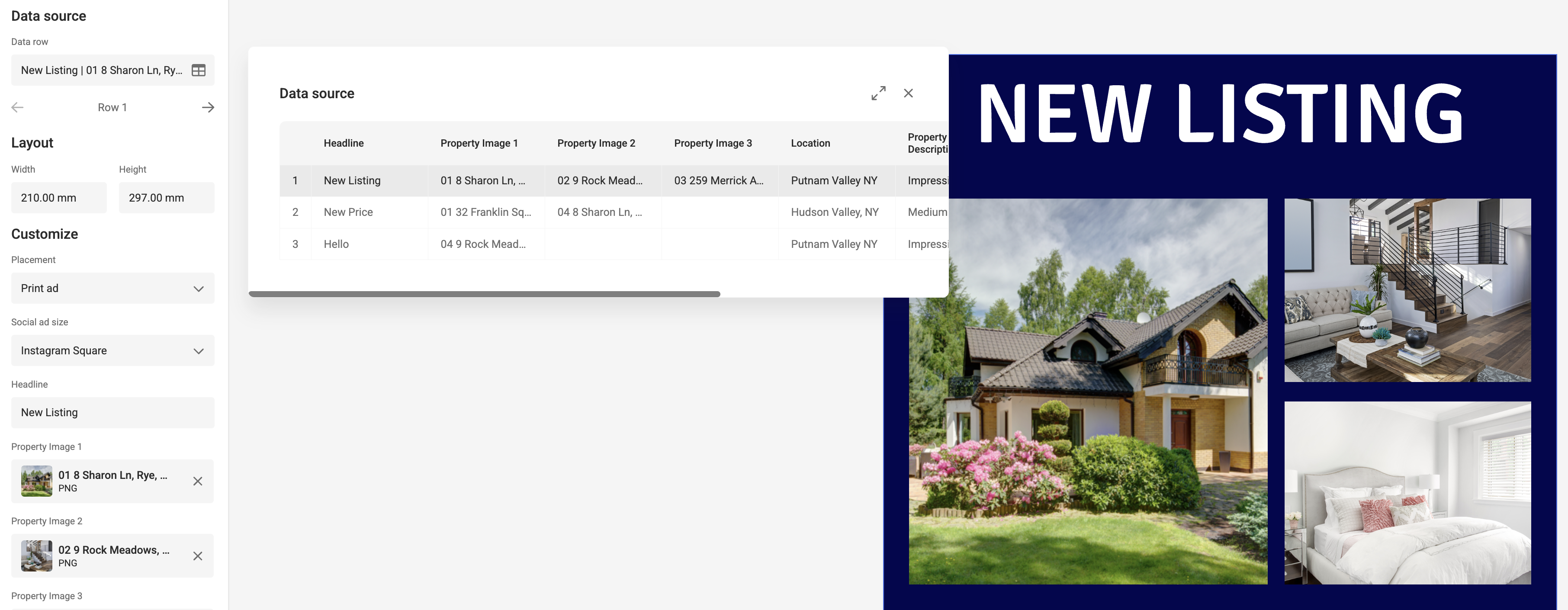

The light Studio UI with the same record table, the row's values in the form and the New Listing design beside it

Output

To generate output with dynamic data, create an output setting.

Ensure the Data source is enabled for batch processing.

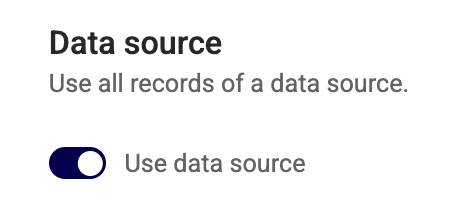

The Data source section of an output setting, with the Use data source toggle switched on

PDF only

Only PDF output will use the data source. Soon the other formats will support batch output too.

When set to "Use data source", your output will have a page for each record in the data source.

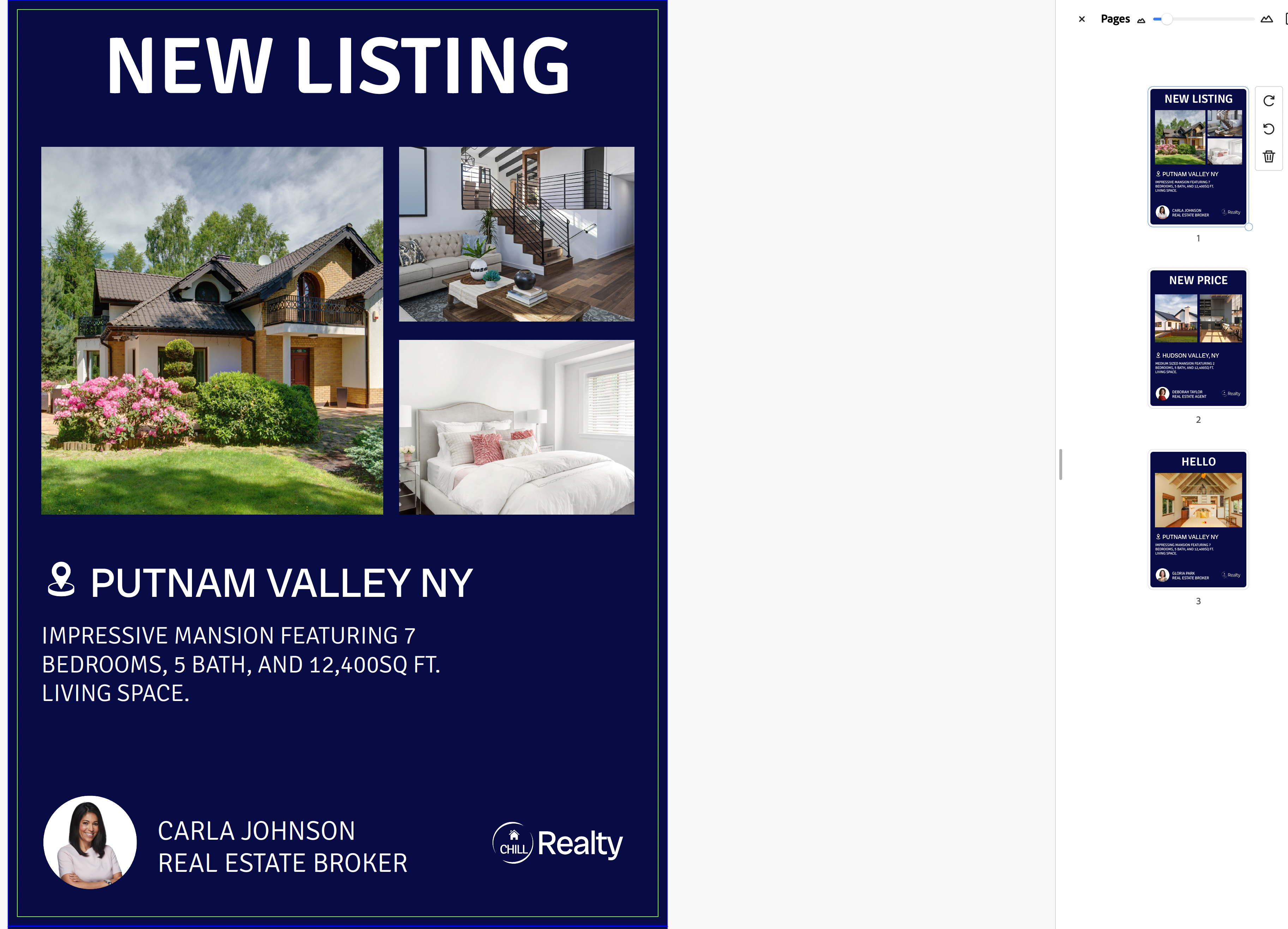

Output preview with a page per record: New Listing on the canvas, New Price and Hello in the Pages panel

Google Sheet Setup guidelines

  • Column Range: Values from all columns will be read1.
  • Header: Your Google Sheet column names must match the Smart Template variable names
  • Column Data Type
    • All values are considered: "Single Line Text"
    • Format Numbers as Numbers

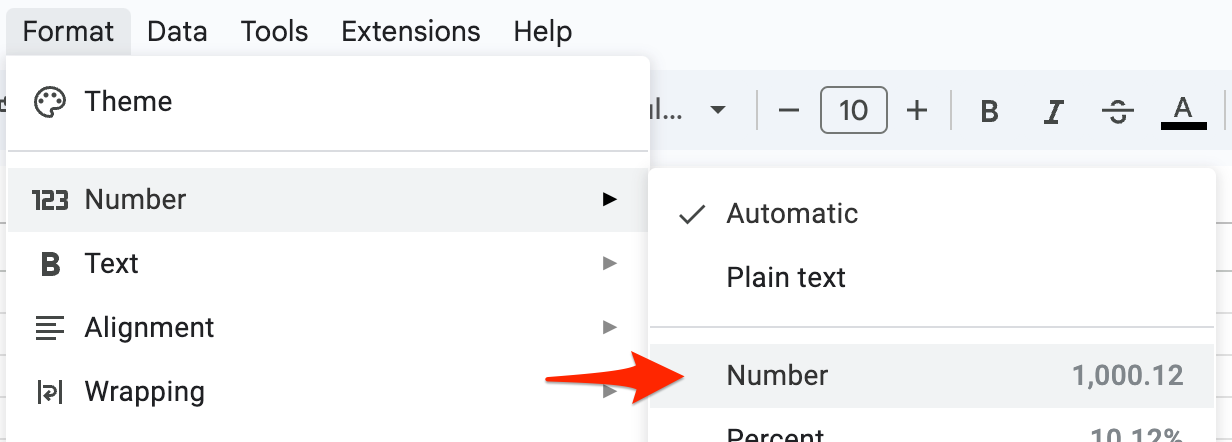

      The Format > Number submenu in Google Sheets, pointing at the Number option
    • Format Date as "Date" or "Date Time"

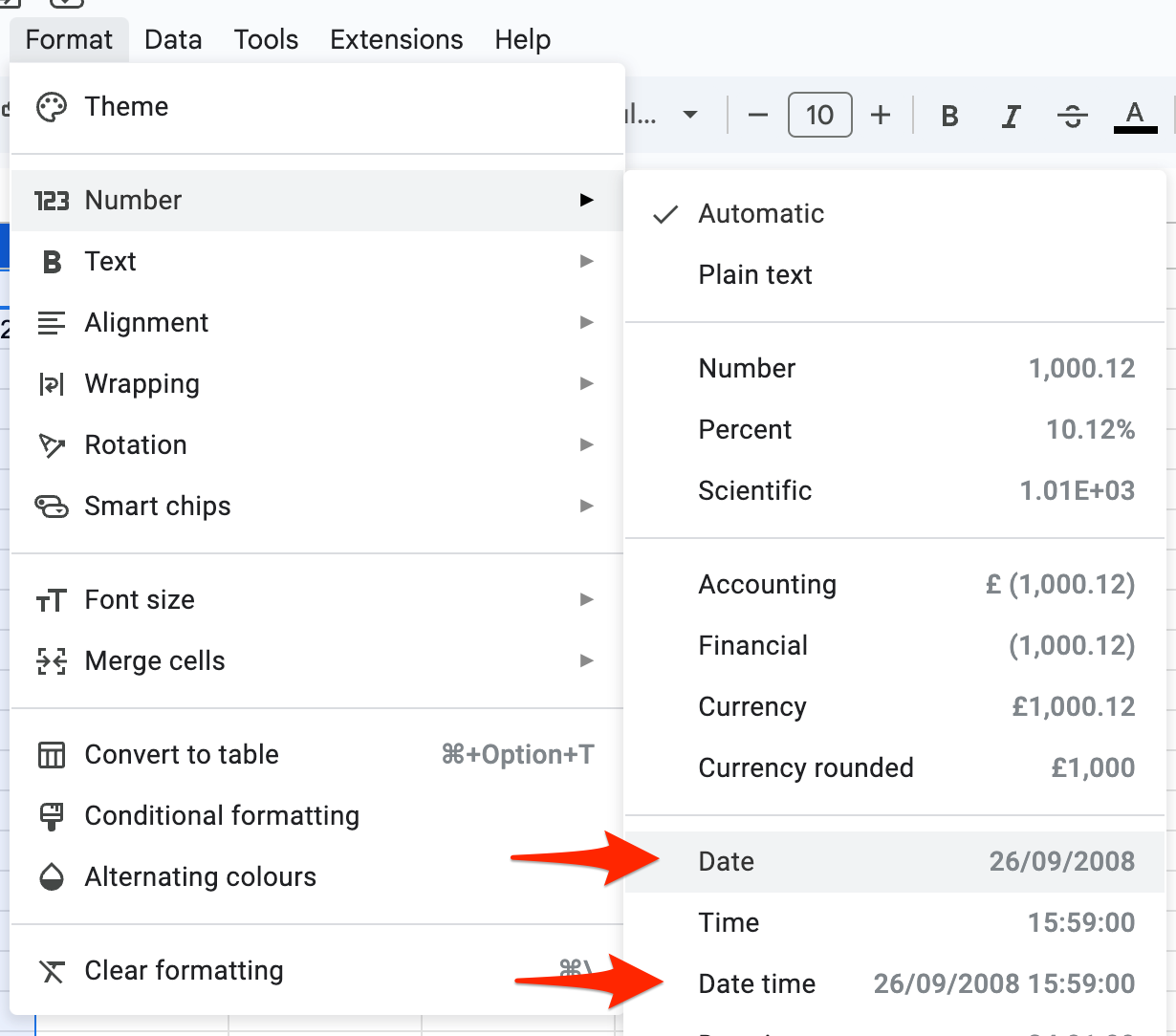

      The same Format > Number submenu, expanded further and pointing at both Date and Date time
    • Booleans: Boolean columns must always have a value (cells cannot be empty)
    • Booleans: Define boolean columns using checkboxes

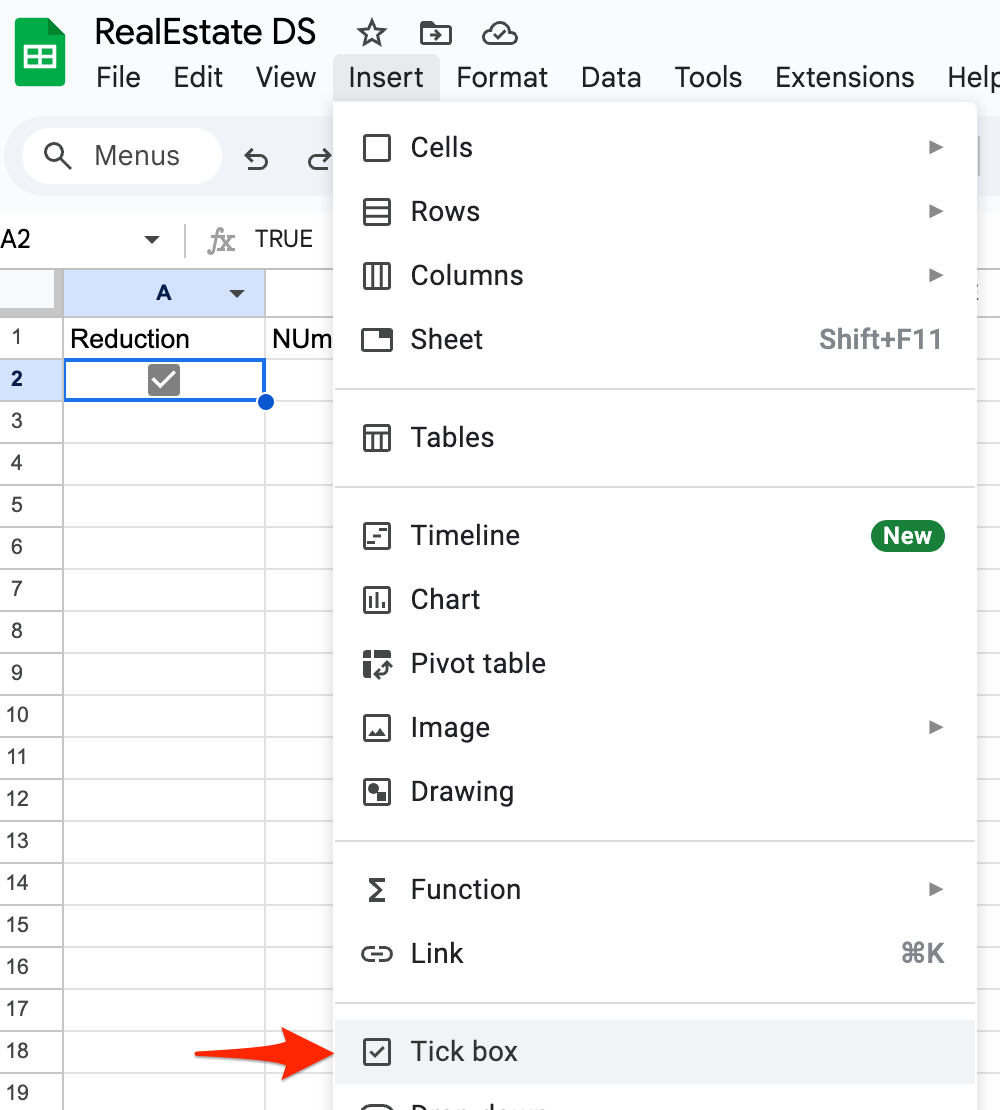

      The Insert menu in Google Sheets, pointing at "Tick box", with a ticked cell in the Reduction column
  • Row Structure: The sheet must NOT contain empty rows between rows with data

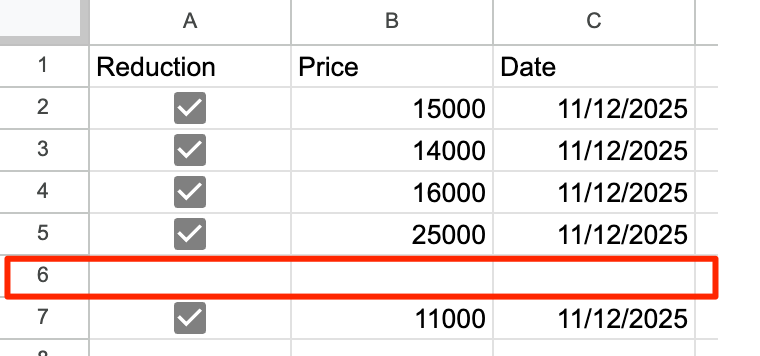

    A Reduction, Price and Date sheet where blank row 6 sits between filled rows, boxed in red
  • Sharing
    OAuth2.0 JWT Bearer authentication: Share it with the service account setup during configuration of the Connector.
    OAuth2.0 Authorisation Code: share with the user who is authorising.
    Public: All people with the link can access your document. You can set it to read-only or editable.

  1. Although all columns from the Google Sheet will be read, relying on too many variables may significantly slow down performance. ↩
